PHASE SHIFT OSCILLATOR

Version 1.0.0.0 (7.85 KB) by K. SUBRAMANIAN

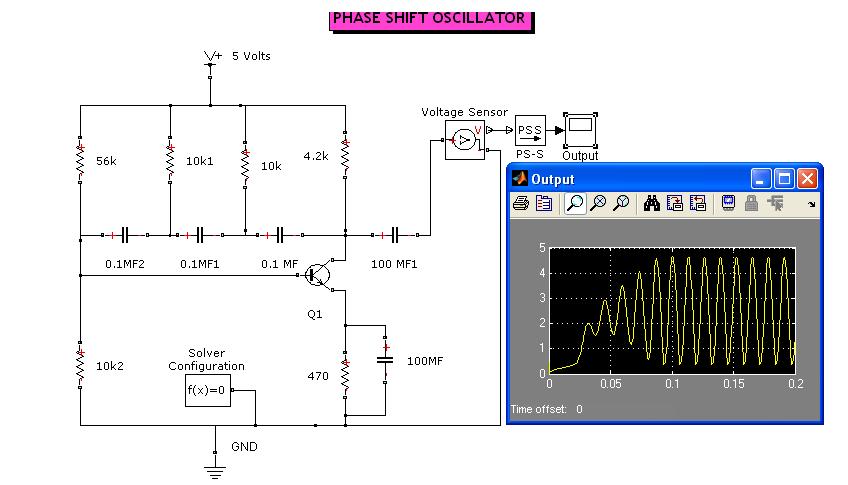

Simulation of a RC Phase Shift Oscillator using Transistor
3.0
(1)
3K Downloads
Updated 28 May 2008

No License

Starting voltage is provided by noise in resistors in the circuit, gets amplified and drives the phase shift RC Feedback network. This circuit is assembled using SimElectonics 1.0 which provides the necessary components. Output Scope provides sine wave oscillations.

Cite As

K. SUBRAMANIAN (2025). PHASE SHIFT OSCILLATOR (https://www.mathworks.com/matlabcentral/fileexchange/20094-phase-shift-oscillator), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2008a
Compatible with any release
Platform Compatibility
Windows macOS Linux
