Finite Element Triangular Mesh Generator
The function femTriangularMeshGenerator() generates triangular mesh for a rectangular shape structure for Finite Element analysis.
The outputs are:
coords = x and y coordinates of each element nodes
cT = nodal connectivity
nNodes = Number of nodes
The inputs are:
Lx = width of the rectangular structure
Ly = Height of the rectangular structure
Nx = Number of divisions on x- axis
NE = Number of elements

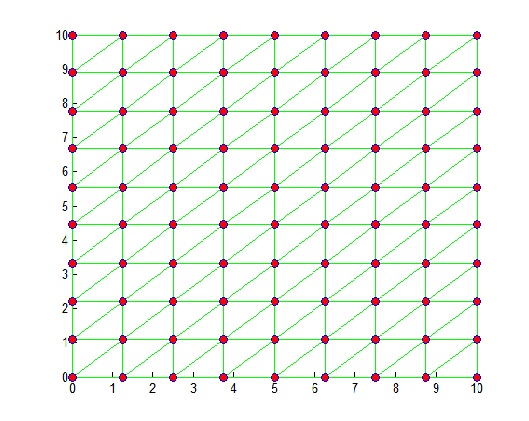

The example generates 144 elements for a rectangular structure given a dimension 10units by 10units with respect to 8 divisions on x-axis.
