Visualizing Wave Propagation

Visualize wave propagation through media with different impedances and propagation velocities.
3.8K Downloads
Updated Thu, 01 Sep 2016 15:20:51 +0000

View License

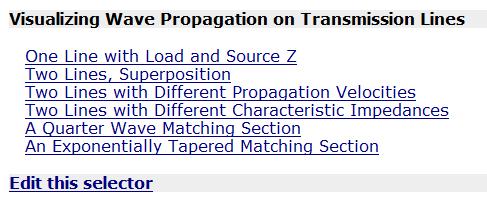

Wave Propagation is a natural phenomenon that is important in many physical systems. Text books leave much to be desired regarding visualization of wave propagation since they are not animated. The package has a sequence of 6 models that have both a transient pulse excitation as well as a sine wave excitation. The model sequence starts with a one transmission line version that has user definable source and load impedance and evolves to a three line model using an exponentially tapered matching section.
Using these models, the student can gain an intuitive understanding of transmission, reflection, superposition, impedance matching, Standing Wave Ratio, and many other wave phenomenons.
This work was inspired by the 1959 Bell Labs film on Waves:
http://techchannel.att.com/play-video.cfm/2011/3/7/AT&T-Archives-Similarities-of-Wave-Behavior

Cite As

Dick Benson (2024). Visualizing Wave Propagation (https://www.mathworks.com/matlabcentral/fileexchange/36117-visualizing-wave-propagation), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2014b
Compatible with any release
Platform Compatibility
Windows macOS Linux
Categories
Find more on View and Analyze Simulation Results in Help Center and MATLAB Answers

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!
Version Published Release Notes
1.6.0.1

Updated license

1.6.0.0

This submission has been updated to run in R2015A as well as R2014b.
It also has replaced the SimPower elements with SimScape/SimElectronics elements.
Therefore SimPower is no longer required, but SimElectronics is in its place.

1.5.0.0

Updated for R2014b.

1.4.0.0

Models updated to be compliant with changes in R2013B.

1.2.0.0

Models were updated to be in compliance with changes made to R2013B.

1.0.0.0
