Raspberry Pi IO Control Utility

Version 2.0.0.0 (108 KB) by Shamnad
Test or Control Raspberry Pi IO pins with this Matlab GUI
5.0
(4)
2.6K Downloads
Updated 29 Apr 2018

View License

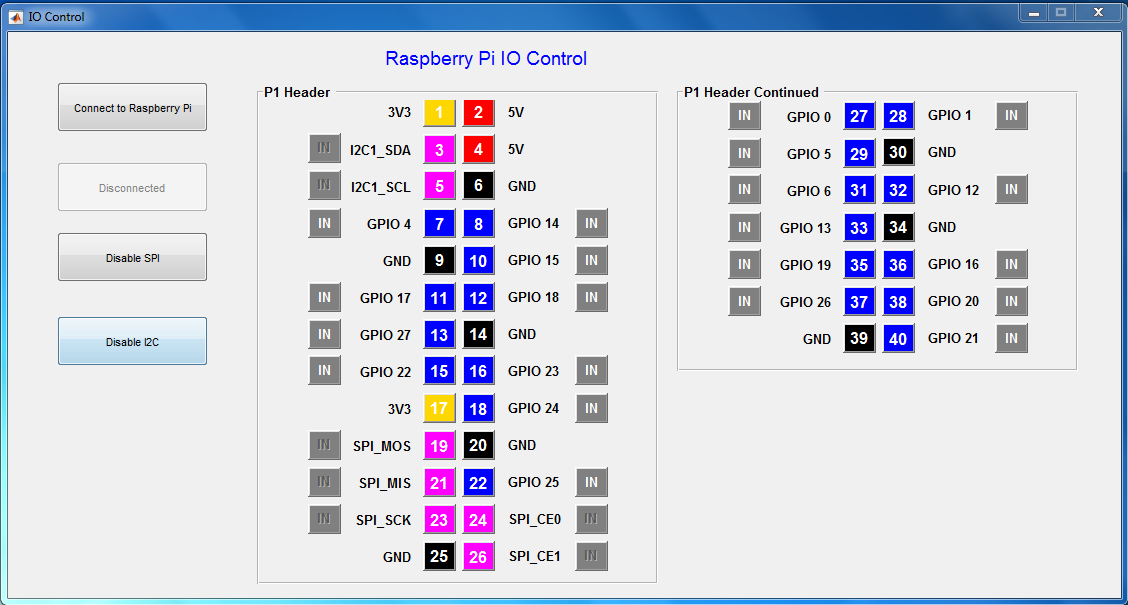

Setup the Raspberry Pi to work with Matlab. Check out the Matlab Hardware Support Package documentation. This GUI based program will automatically connect to the Raspberry Pi if already configured. It shows the Pin logic values in color. The Pin headers P1 and P5 are shown exactly as on the Raspberry Pi. Additionally, it shows the actual location of the Pin Header on the Raspberry Pi. Pin direction can be set to INPUT or OUTPUT by clicking on the side buttons. Directly clicking on the Pins will change the status on the Raspberry Pi. Pin statuses are shown live.
NB: This program is updated to work with all current Raspberry Pi models. But, didn't check all models as I didn't have all boards. Suggest you to report any errors so that we can fix.

Cite As

Shamnad (2024). Raspberry Pi IO Control Utility (https://www.mathworks.com/matlabcentral/fileexchange/46547-raspberry-pi-io-control-utility), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2014a
Compatible with any release
Platform Compatibility
Windows macOS Linux
Categories
Find more on Embedded Coder in Help Center and MATLAB Answers

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!

RaspiIOControl/

Version Published Release Notes
2.0.0.0

Minor Fix
Updated to work with all Raspberry Pi Models.
1.2.0.0

Won't work with Raspberry Pi Model B+
1.1.0.0

Included SPI and I2C switching functionality.
1.0.0.0
