Scopes for real-time display

Set of widgets for real-time data display.
9.7K Downloads
Updated Wed, 05 May 2021 15:48:29 +0000

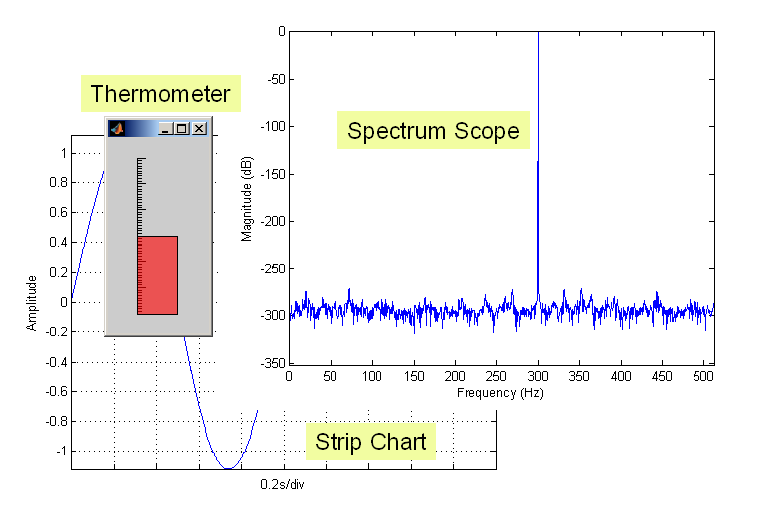

TMWidgets is a set of functions that make it easy to include real-time updating displays in your measurement application. TMWidgets includes three widgets: a strip chart (for time series), a spectrum scope (for frequency) a specgramscope (for frequency and time) and a thermometer (for scalar display).
Note - each of these is available in a slightly different form elsewhere on MATLAB Central. This submission will contain the most recent versions.

Cite As

Michelle Hirsch (2024). Scopes for real-time display (https://github.com/michellehirsch/MATLAB-Scopes), GitHub. Retrieved .

MATLAB Release Compatibility
Created with R14
Compatible with any release
Platform Compatibility
Windows macOS Linux
Acknowledgements

Inspired by: Strip Chart

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!

Versions that use the GitHub default branch cannot be downloaded

Version Published Release Notes
1.2.0.0

Moved to GitHub. Removed mistaken attribution. Updated title.

1.1.0.0

Updated copyrights.

1.0.0.0

Added specgramscope - a spectrum scope with history. Should work in R13, but new demo uses R14 language feature (nested functions)
