Trapezoidal PWM for Current Source Inverters
Trapezoidal Wave as modulating signal and modified triangular wave as carrier signal
You are now following this Submission
- You will see updates in your followed content feed
- You may receive emails, depending on your communication preferences

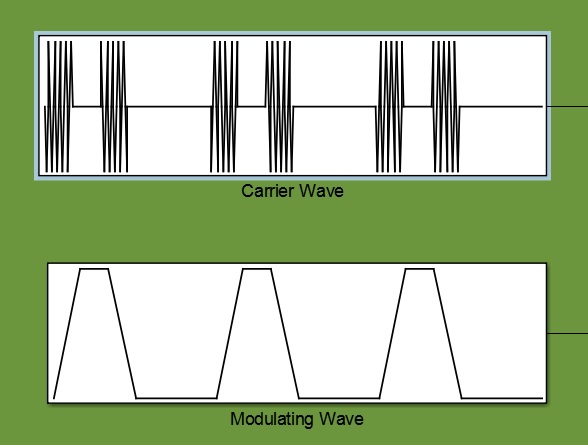

Conventional Sinusoidal PWM cannot be employed for CSI and therefore it require changes. Trapezoidal Wave as modulating signal and modified triangular wave as carrier signal are used.
