Coupling Matrix Optimizer

version 2.0.0.0 (299 KB) by Carlos Carceller
Visualize and optimize the response of a filter coupling matrix.

25 Downloads

Updated 12 May 2017

View License

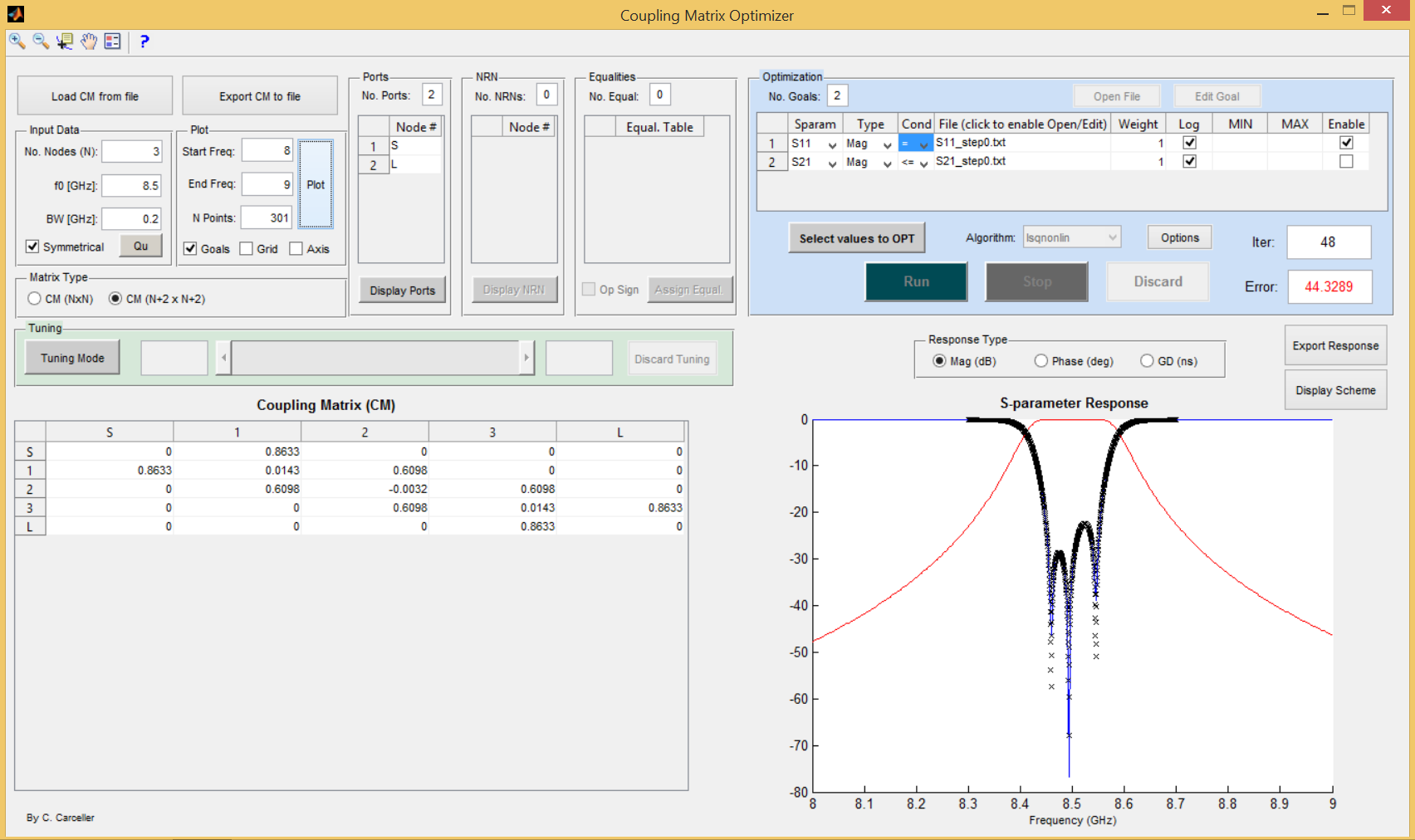

Coupling Matrix Optimizer is a simple, but powerful, GUI that allows microwave filter designers to optimize coupling matrices (which represent coupled-resonator filters). It is especially indicated to obtain coupling schemes for which no formal synthesis procedure exist, as well as extract an equivalent network representation from the EM simulation of a filtering structure.
Define the number of nodes in the CM, filter center frequency and bandwidth. Then, choose the cells of the matrix that you want to optimize by simply clicking on them. Set the goals for your filter and any equality that you wish to enforce. Finally, let Matlab's optimization toolbox adjust the coupling matrix until it provides the result you desire.
Networks with multiple ports (including multiplexers) and/or non-resonating nodes (NRN) are supported.
Several examples are included as references.

Cite As

Carlos Carceller (2020). Coupling Matrix Optimizer (https://www.mathworks.com/matlabcentral/fileexchange/53672-coupling-matrix-optimizer), MATLAB Central File Exchange. Retrieved .

Comments and Ratings (14)

Divyayan Dey

What are the set of control variables in your optimization cost function?

Divyayan Dey

SRIKANTA PAL

would you share the matlab code?

bahman mohammadi

hearth bridge

Check this software, more powerful and useful for microwave engineer---www.synmatrixtech.com
https://www.youtube.com/channel/UC9GBVaQ8sTTVUrWK-7Qzd6Q

Gowrish Basavarajappa

Coupling Matrix Synthesis for RF Filters (https://www.mathworks.com/matlabcentral/fileexchange/72692-coupling-matrix-synthesis-for-rf-filters), MATLAB Central File Exchange. September 19, 2019.
Kindly share it with your fellow friends for research purpose and a wonderful day ahead :)

Cloud Hz

hearth bridge

Try this: www.synmatrix360.com. It includes both synthesis and matrix extraction.

Moitreya

Son Do

You may have make a video tutorial to use ?

Manh Nguyen Phu

Doan Quang Hung

Junyi Huang

Updates

2.0.0.0

New features:
- Visualize and optimize magnitude, phase and group delay
- Fine-tune specific CM values with slider
- Change options of optimization method
- Set validity of goals in a specific frequency range
- Display the node scheme

MATLAB Release Compatibility
Created with R2014a
Compatible with any release
