DC INVERTING ADDER USING OP AMP
Applied DC input voltages are added at the output with a phase shift of 180 deg
You are now following this Submission
- You will see updates in your followed content feed
- You may receive emails, depending on your communication preferences

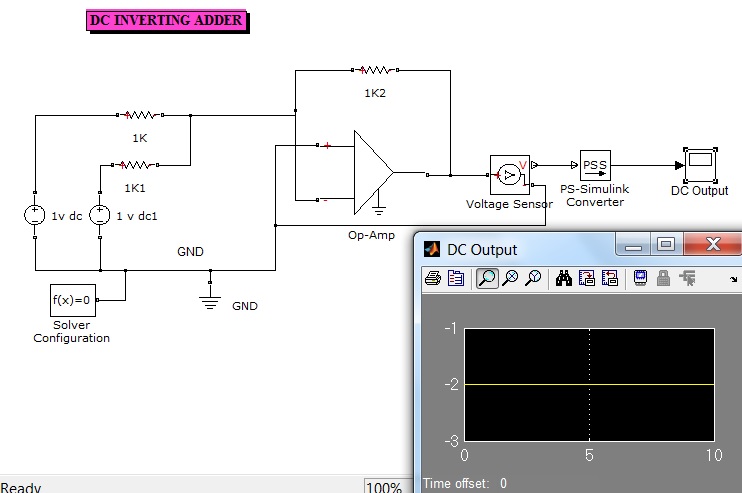

V1 and V2 are two DC voltages applied at the input and the op amp circuit gives DC output Vo= -(V1+V2), the minus sign shows that there is a phase shift of 180 degrees between the output and the inputs.
Cite As
K. SUBRAMANIAN (2026). DC INVERTING ADDER USING OP AMP (https://in.mathworks.com/matlabcentral/fileexchange/56757-dc-inverting-adder-using-op-amp), MATLAB Central File Exchange. Retrieved .
