PV String Partial Shading Model
Version 1.0.0.0 (32.8 KB) by
Rodney Tan

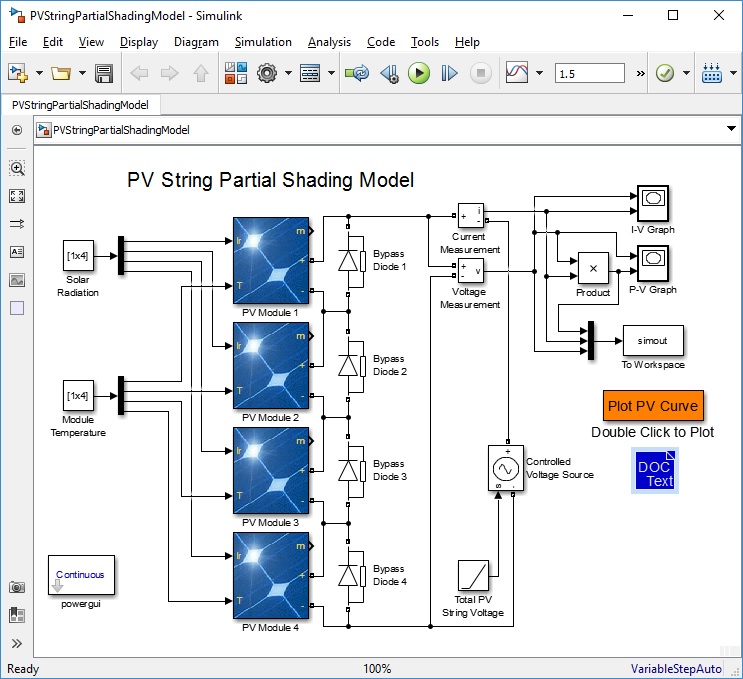

This model simulate PV string partial shading and plot its I-V and P-V curve
This model simulate PV string partial shading and plot its I-V and P-V curve
1. Select your PV Module
2. Set your partial shading profile in the Solar Radiation Block
3. Set the Total PV String Voltage in Ramp Block
4. RUN Simulink
5. Double Click the Plot PV Curve block to plot I-V and P-V curve overlay
