Transmission Line Short Line Model
Simulation of Transmission Line Short Line Model in Simulink
You are now following this Submission
- You will see updates in your followed content feed
- You may receive emails, depending on your communication preferences
Transmission Line Short Line Model developed by Dr Rodney Tan
Version 1.0 (Oct 2017)

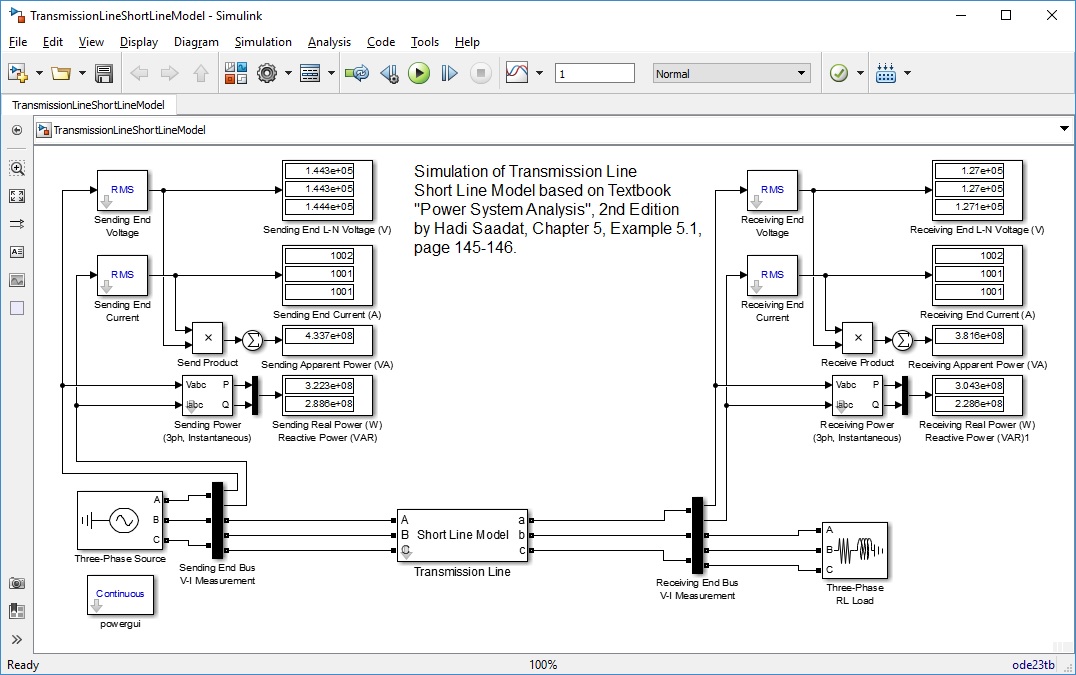

Simulation of Transmission Line Short Line Model based on Textbook "Power System Analysis", 2nd Edition by Hadi Saadat, Chapter 5, Example 5.1, page 145-146.
Transmission line short line model block is compute using three phase series RL branch based on its line length (km), resistance per unit length (Ohms/km), inductance per unit length (H/km) or Impedance per unit length (R+Li/km) in complex number.
