mesh_from_bitmap_ma​tlab

version 1.4 (246 KB) by Thomas Guillod
MATLAB Code for Creating a Mesh from a Bitmap Image

81 Downloads

Updated 04 Nov 2021

From GitHub

View license on GitHub

MATLAB Code for Creating a Mesh from a Bitmap Image

license - BSD language - MATLAB category - hobby status - unmaintained

This MATLAB code generates a mesh from a black and white bitmap image:

  • Find the contour of a black and white bitmap image (raster)
  • Simplify the contour with a specified tolerance
  • Mesh the shape (handling of holes and multiple domains)

This code uses the MATLAB PDE toolbox and generatates a FEM mesh (FEMesh object). However, the mesh can be used for other purposes than FEM simulations, such as 3d printing.

Example

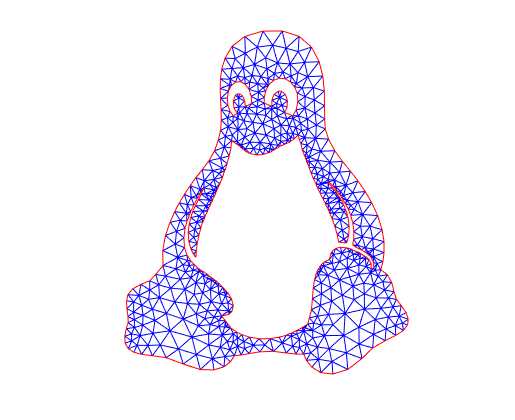

Look at the example run_example.m which generates the following mesh:

Compatibility

  • Tested with MATLAB R2018b.
  • Requires the image_toolbox (for contour detection).
  • Requires the map_toolbox (for contour simplification).
  • Requires the pde_toolbox (for meshing).
  • Compatibility with GNU Octave not tested but probably problematic.

This code share some files with laser_cut_matlab_slicer.

Author

Thomas Guillod - GitHub Profile

License

This project is licensed under the BSD License, see LICENSE.md.

Cite As

Thomas Guillod (2021). mesh_from_bitmap_matlab (https://github.com/otvam/mesh_from_bitmap_matlab), GitHub. Retrieved .

MATLAB Release Compatibility
Created with R2020a
Compatible with any release
