Plot tools for Z-Grid root locus controller design

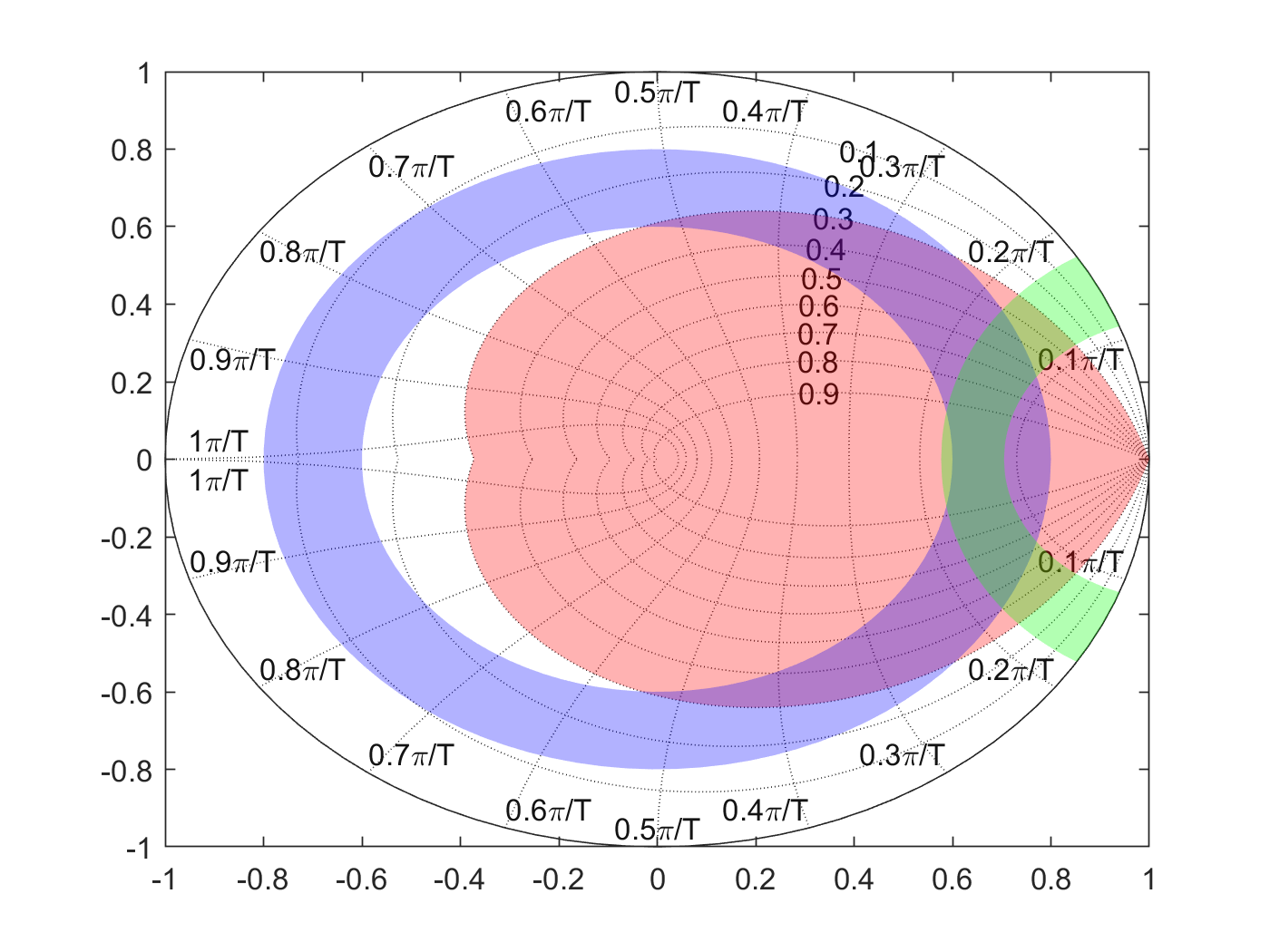

Plots colored regions that satisfy performance criterion (damping, magnitude, natural frequency).
