scan2data

Version 2.0.1 (918 KB) by Gregory Laduree
This GUI converts an image of a curve into data points
4.0
(1)
61 Downloads
Updated 23 Dec 2020

View License

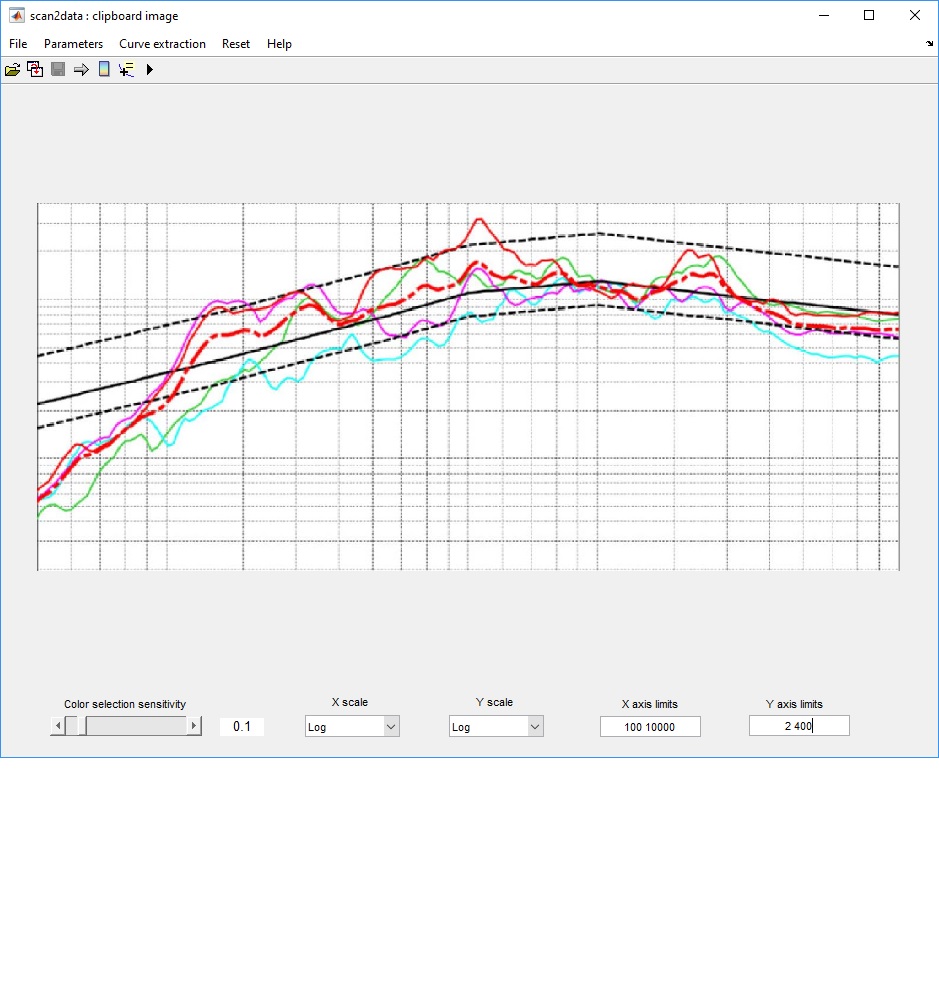

This GUI converts an image of a curve into data points relatively quickly, even if the original image contains grid in the background.
Three different methods can be used depending on the curves to be scanned:
• Black & White plots with grids and/or legend
• Color curves
• Point by point

Just copy all files in a directory and run scan2data. Help file describes various functions and menu

Has been tested on Matlab R2012b and R2019b
This app is using clipboardimage.m (Saurabh Kumar, https://www.mathworks.com/matlabcentral/fileexchange/14584-clipboardimage), and datalabel.m

Cite As

Gregory Laduree (2026). scan2data (https://in.mathworks.com/matlabcentral/fileexchange/84677-scan2data), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2012b
Compatible with R2012b to R2019b
Platform Compatibility
Windows macOS Linux
Tags Add Tags
Open in new tab
Version Published Release Notes
2.0.1

Added picture
2.0.0
