rmsvalue_FFT GUI

version 1.0.0 (3.14 KB) by R SRIRANJANI RAMAKRISHNAN
MATLAB code for rmsvalue_FFT.fig GUI Measure


Updated Mon, 25 Jan 2021 18:31:31 +0000

View License

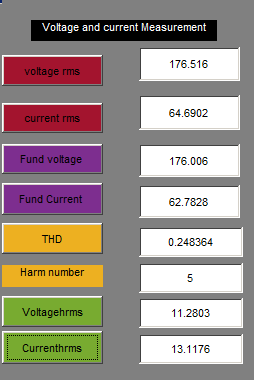

This M file creates GUI for measuring True RMS Voltage, Current, Fundamental Voltage and Current, THD, Individual Voltage and Current harmonics.
Keep the voltage.xlsx file and current in test1.xlsx file in current path location

Press the Voltage rms, Current rms, Fund Voltage , Fundamental current and THD Block.

In Hamonic Number Field, Enter Harmonic Number and to display corresponding harmonics is obtained by pressing Voltagehrms and currenthrms

Cite As

R SRIRANJANI RAMAKRISHNAN (2022). rmsvalue_FFT GUI (https://www.mathworks.com/matlabcentral/fileexchange/86378-rmsvalue_fft-gui), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2016b
Compatible with R2013a to R2020b
Platform Compatibility
Windows macOS Linux
