Generate MIMO OFDM Channel Realizations for AI-Based Systems

Since R2026a

This example shows how to generate channel estimates to train AI-based systems, such as an autoencoder for channel state information (CSI) feedback compression and temporal channel prediction. In this example, you:

Configure a carrier and a multiple-input multiple-output (MIMO) link-level fading channel.
Generate channel estimates.
Visualize channel estimates.
Generate a data set of channel estimates in bulk for training neural networks.

Introduction

In conventional 5G radio networks, CSI parameters are summary quantities that describe the state of the downlink channel and are derived from the receiver’s channel estimate. Examples of these parameters are the precoding matrix indicator (PMI), rank indicator (RI), and channel quality indicator (CQI). The gNB uses these reports to select transmission settings such as the precoding matrix, the number of spatial layers, and the modulation and coding scheme.

UEs report compact CSI parameters to the gNB, rather than sending raw complex channel matrices. These compact reports come from measurements of downlink reference signals such as CSI-RS and provide the gNB with the information it needs for link adaptation and MIMO control.

AI and machine learning open new opportunities for richer CSI feedback. Research and standards work are actively exploring UE-side compressed representations of the channel and predicted CSI sent as compact bitstreams. These approaches aim to deliver more informative and predictive channel descriptions while keeping feedback overhead low.

The first step of designing an AI-based system is to prepare training and testing data. In this example, you generate simulated channel estimates.

Configure System Parameters

Use 5G Toolbox™ functions to configure a carrier for a specific OFDM configuration and a channel that models a clustered delay line (CDL) MIMO link-level fading channel. Using the code below you, configure parameters to generate data. Set the userParams.Preset parameter to:

"None" — To define your own simulation configuration.
"CSI Compression" — To select preset values to generate data for these channel compression examples.
"EV-CSI Compression" — To select preset values to generate data for this eigenvector-based channel compression example.
- Train Transformer Autoencoder for Eigenvector-based CSI Feedback Compression
"CSI Compression" — To select preset values to generate data for these channel prediction examples:
- Train PyTorch Channel Prediction Models
- Train PyTorch Channel Prediction Models with Online Training

userParams = struct;

userParams.Preset = "CSI Compression"; % "EV-CSI Compression", "Channel prediction", "None"
userParams.SubcarrierSpacing = 15;
userParams.GridSize = 52;
userParams.DelayProfile = "CDL-C";
userParams.TxAntennaSize = [2 2 2 1 1];   % rows, columns, polarization, panels
userParams.RxAntennaSize = [2 1 1 1 1];   % rows, columns, polarization, panels
userParams.MaxDoppler = 5; % Hz
userParams.TimeSeriesData = false;
userParams.NumFrames = 1000;
% If selected, overwrite with presets
switch userParams.Preset
    case "CSI Compression"
        userParams.SubcarrierSpacing = 15;
        userParams.GridSize = 52;
        userParams.DelayProfile = "CDL-C";
        userParams.MaxDoppler = 5;
        userParams.TimeSeriesData = false;
        userParams.NumFrames = 1000;
    case "EV-CSI Compression"
        userParams.SubcarrierSpacing = 15;
        userParams.GridSize = 48;
        userParams.DelayProfile = "CDL-C";
        userParams.MaxDoppler = 1;
        userParams.TimeSeriesData = false;
        userParams.NumFrames = 100000;
    case "Channel prediction"
        userParams.SubcarrierSpacing = 15;
        userParams.GridSize = 52;
        userParams.DelayProfile = "TDL-A";
        userParams.MaxDoppler = 37;
        userParams.TimeSeriesData = true;
        userParams.NumFrames = 3;
end

Carrier Configuration

Use the nrCarrierConfig function to configure a carrier. Set the number of resource blocks and subcarrier spacing.

carrier = nrCarrierConfig;
systemParams.SubcarrierSpacing = userParams.SubcarrierSpacing;
carrier.NSizeGrid = userParams.GridSize;
carrier.SubcarrierSpacing = systemParams.SubcarrierSpacing;
subcarrierPerRB = 12;
Nsc = carrier.NSizeGrid*subcarrierPerRB

Nsc =
624

systemParams.NumSubcarriers = Nsc;

Check the waveform information.

waveInfo = nrOFDMInfo(carrier)

waveInfo = struct with fields:
                   Nfft: 1024
             SampleRate: 15360000
    CyclicPrefixLengths: [80 72 72 72 72 72 72 80 72 72 72 72 72 72]
          SymbolLengths: [1104 1096 1096 1096 1096 1096 1096 1104 1096 1096 1096 1096 1096 1096]
              Windowing: 36
           SymbolPhases: [0 0 0 0 0 0 0 0 0 0 0 0 0 0]
         SymbolsPerSlot: 14
       SlotsPerSubframe: 1
          SlotsPerFrame: 10

Configure MIMO Channel

Select a delay profile to represent the MIMO fading channel.

systemParams.DelayProfile = userParams.DelayProfile;

Specify maximum Doppler spread and RMS delay spread.

systemParams.MaxDoppler = userParams.MaxDoppler;       % Hz
systemParams.RMSDelaySpread = 300e-9;       % s

Specify the transmit antenna size and receive antenna size.

switch userParams.Preset
  case "CSI Compression"
    systemParams.TxAntennaSize = [2 2 2 1 1];   % rows, columns, polarization, panels
    systemParams.RxAntennaSize = [2 1 1 1 1];   % rows, columns, polarization, panels
  case "EV-CSI Compression"
    systemParams.TxAntennaSize = [4 4 2 1 1];
    systemParams.RxAntennaSize = [2 2 1 1 1];
  case "Channel prediction"
    systemParams.TxAntennaSize = 8;
    systemParams.RxAntennaSize = 2
  otherwise
    systemParams.TxAntennaSize = userParams.TxAntennaSize;
    systemParams.RxAntennaSize = userParams.RxAntennaSize;
end

Create an nrCDLChannel or an nrTDLChannel object and set the channel parameters.

if contains(systemParams.DelayProfile,"CDL")
  channel = nrCDLChannel(...
    DelayProfile = systemParams.DelayProfile, ...
    SampleRate = waveInfo.SampleRate);
  channel.TransmitAntennaArray.Size = systemParams.TxAntennaSize;
  channel.ReceiveAntennaArray.Size = systemParams.RxAntennaSize;
else
  channel = nrTDLChannel(...
    DelayProfile = systemParams.DelayProfile, ...
    SampleRate=waveInfo.SampleRate, ...
    NumTransmitAntennas = systemParams.TxAntennaSize, ...
    NumReceiveAntennas = systemParams.RxAntennaSize);
end
channel.DelaySpread = systemParams.RMSDelaySpread;     % s
channel.MaximumDopplerShift = systemParams.MaxDoppler; % Hz
channel.RandomStream = "Global stream";
channel.ChannelFiltering = false;        % No filtering for perfect estimate
channel.OutputDataType = "single";

Each call to the channel object generates one frame of data. One frame can have multiple slots. For autoencoder type channel compression, you need a single slot per frame. For channel prediction, you need a time series of channel realizations, which can contain many slots.

dataParams.TimeSeries = userParams.TimeSeriesData;

Calculate the number of samples required to process one frame of data.

samplesPerSlot = sum(waveInfo.SymbolLengths(1:waveInfo.SymbolsPerSlot));

If generating timeseries data, decide on the number of slots per frame based on the coherence time of the channel.

if dataParams.TimeSeries

The coherence time of the channel in seconds is approximately

$T_{c} \approx \frac{1}{2 \times Doppler Spread}$ , which is

  Tc = 1/(2*systemParams.MaxDoppler);

Calculate the coherence time in terms of slots.

  numerology = (systemParams.SubcarrierSpacing/15)-1;
  Tslot = 1e-3 / 2^numerology;
  symbolsPerSlot = 14;
  symbolTime = Tslot/symbolsPerSlot;
  coherenceTimeInSlots = Tc / Tslot;

To capture the variations in the channel accurately, use four times the coherence time as the length of the input sequence.

  sequenceLength = ceil(coherenceTimeInSlots*4)

The prediction network's target data is collected $N_{h o r i z o n}$ time steps in the future. Set the number of slots per frame to a number sufficiently greater than the total of input sequence length and $N_{h o r i z o n}$ .

  slotsPerFrame = 75
end

If generating a snapshot of the channel, generate only one slot of data.

if ~dataParams.TimeSeries
  slotsPerFrame = 1;
end
systemParams.NumSymbols = slotsPerFrame*carrier.SymbolsPerSlot;

Calculate dependent variables.

channelInfo = info(channel);
if isa(channel,"nrCDLChannel")
  Nrx = channelInfo.NumOutputSignals; % Number of Rx antennas
else
  Nrx = channelInfo.NumReceiveAntennas;
end

Generate Channel Realizations

Simulate the channel to obtain the response of the channel, Hest, to an OFDM signal. Set the ChannelFiltering property to false and the ChannelResponseOutput to "ofdm-response".

channel.ChannelFiltering = false;
channel.ChannelResponseOutput = "ofdm-response";

Calculate the number of samples needed to process numFrames of channel realizations.

symbolsPerSlot = carrier.SymbolsPerSlot;
channel.NumTimeSamples = samplesPerSlot*slotsPerFrame;

Generate channel realizations.

Hest = channel(carrier);

Reset the channel to get an independent realization of the channel at the next call.

reset(channel);

The channel estimate matrix is an ${[N_{subcarriers} N_{symbols} N_{rx} N_{tx}]}_{}$ array for each slot.

[nSub,nS,nRx,nTx] = size(Hest)

nSub =
624

nS =
14

nRx =
2

nTx =
8

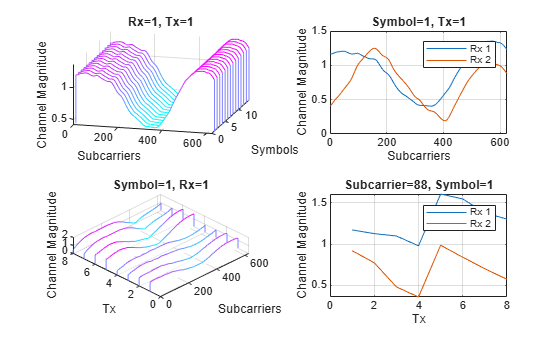

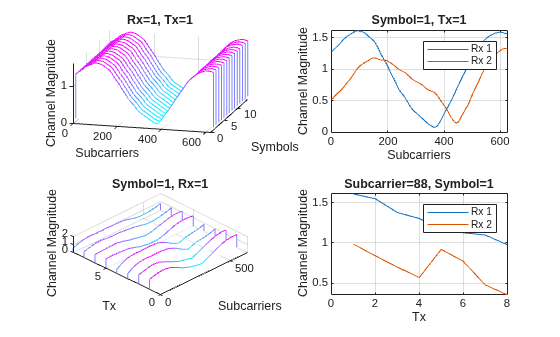

Plot the channel response. The upper left plot shows the channel frequency response as a function of time (symbols) for receive antenna 1 and transmit antenna 1. The lower left plot shows the channel frequency response as a function of transmit antennas for symbol 1 and receive antenna 1. The upper right plot shows the channel frequency response for all receive antennas for symbol 1 and transmit antenna 1. The lower right plot shows the change in channel magnitude response as a function of transmit antennas for all receive antennas for a subcarrier and symbol 1.

helperPlotChannelResponse(Hest)

Generate Channel Realizations in Bulk

Set the number of samples to be generated for the data set.

dataParams.NumFrames = userParams.NumFrames;

If you have a license for Parallel Computing Toolbox™, you can enable useParallel and use parfor to parallelize data generation in the helper3GPPChannelRealizations function. Data generation takes about 4 minutes for 15000 samples on a PC with Intel® Xeon® W-2133 CPU @ 3.60GHz and running in parallel on eight workers.

useParallel = true;

Enable saveData to save the channel realizations to .mat files. Otherwise, the generated data is stored in a local variable.

saveData =  true;
dataDir = fullfile(pwd,"Data");
dataFilePrefix = "nr_channel_est";

Generate independent realizations of the channel for the selected delay profile.

resetChannel = true;

Generate channel realizations. If saveData is true, return a datastore that contains the generated files. Otherwise, return an array that contains the generated data.

data = helper3GPPChannelRealizations(...
  dataParams.NumFrames, ...
  channel, ...
  carrier, ...
  UseParallel=useParallel, ...
  SaveData=saveData, ...
  DataDir=dataDir, ...
  dataFilePrefix=dataFilePrefix, ...
  NumSlotsPerFrame=slotsPerFrame, ...
  ResetChannelPerFrame=resetChannel);

Removing invalid data directory: /tmp/Bdoc26a_3153988_1243627/tp1951b740/deeplearning_shared-ex43801460/Data
Starting channel realization generation
1 worker(s) running
00:00:02 - 10% Completed
00:00:04 - 20% Completed
00:00:06 - 30% Completed
00:00:08 - 40% Completed
00:00:11 - 50% Completed
00:00:13 - 60% Completed
00:00:15 - 70% Completed
00:00:17 - 80% Completed
00:00:19 - 90% Completed
00:00:22 - 100% Completed
00:00:22 - 100% Completed

If saveData is true, display the signal datastore and save meta data.

if saveData
  data
  save(fullfile(dataDir,"data_info.mat"),"systemParams","dataParams")
end

data =
  signalDatastore with properties:

                       Files:{
                             ' .../tp1951b740/deeplearning_shared-ex43801460/Data/nr_channel_est_1.mat';
                             ' .../tp1951b740/deeplearning_shared-ex43801460/Data/nr_channel_est_10.mat';
                             ' .../tp1951b740/deeplearning_shared-ex43801460/Data/nr_channel_est_100.mat'
                              ... and 997 more
                             }
                     Folders: {'/tmp/Bdoc26a_3153988_1243627/tp1951b740/deeplearning_shared-ex43801460/Data'}
    AlternateFileSystemRoots: [0×0 string]
                    ReadSize: 1
              OutputDataType: "same"
           OutputEnvironment: "cpu"

Further Exploration

This example shows how to generate channel realizations for a MIMO OFDM channel. After generating the channel, you can preprocess these channel realizations to train channel compression or channel prediction neural networks.

If you want to train channel compression neural networks, go to Preprocess Data for AI-Based CSI Feedback Compression.
If you want to train eigen vector based (implicit) channel compression neural networks, go to Preprocess Data for AI Eigenvector-Based CSI Feedback Compression.
If you want to train channel prediction neural networks, go to Preprocess Data for AI-Based CSI Prediction.

Helper Functions

The example uses this helper function:

helper3GPPChannelRealizations

Local Functions

function helperPlotChannelResponse(Hest)
% helperPlotChannelResponse Plot channel response

figure
tiledlayout(2,2)
nexttile
waterfall(abs(Hest(:,:,1,1))')
xlabel("Subcarriers");
ylabel("Symbols");
zlabel("Channel Magnitude")
view(15,30)
colormap("cool")
title("Rx=1, Tx=1")
nexttile
plot(squeeze(abs(Hest(:,1,:,1))))
grid on
xlabel("Subcarriers");
ylabel("Channel Magnitude")
if size(Hest,3) == 2
    legend("Rx 1", "Rx 2")
elseif size(Hest,3) == 4
    legend("Rx 1", "Rx 2", "Rx 3", "Rx 4")
end
title("Symbol=1, Tx=1")
nexttile
waterfall(squeeze(abs(Hest(:,1,1,:)))')
view(-45,75)
grid on
xlabel("Subcarriers");
ylabel("Tx");
zlabel("Channel Magnitude")
title("Symbol=1, Rx=1")
nexttile
nSubCarriers = size(Hest,1);
subCarrier = randi(nSubCarriers);
plot(squeeze(abs(Hest(subCarrier,1,:,:)))')
grid on
xlabel("Tx");
ylabel("Channel Magnitude")
if size(Hest,3) == 2
    legend("Rx 1", "Rx 2")
elseif size(Hest,3) == 4
    legend("Rx 1", "Rx 2", "Rx 3", "Rx 4")
end
title("Subcarrier=" + subCarrier + ", Symbol=1")
end
