NR Interference Modeling with Toroidal Wrap-Around

This example models a 19-cell cluster with toroidal wrap-around as described in ITU-R M.2101-0. The wrap-around provides uniform interference at the cluster edge. All the cells in the cluster operate in the same frequency band with the serving gNB at the center of the cell. You can enable or disable the wrap-around to observe that with wrap-around, the performance metrics of an edge cell becomes similar to the center cell.

Introduction

The example considers these operations within the gNB and user equipment (UE).

This example models:

  • Co-channel intercell interference with wrap-around modeling for removing edge effects

  • PUSCH demodulation reference signal (DM-RS) and PDSCH DM-RS

  • DL channel quality measurement by UEs based on the CSI-RS received from gNB.

  • Single-input single-output (SISO) configuration with omnidirectional antennas.

  • Free space path loss (FSPL), and additive white Gaussian noise (AWGN).

The example assumes that control packets such as UL assignment, DL assignment, buffer status report (BSR), PDSCH feedback, and channel quality indicator (CQI) report, are sent out of band, that is, without the need of resources for transmission and assured error-free reception.

Toroidal Wrap-around Modeling

To simulate the behavior of a cellular network without introducing edge effects, this example models an infinite cellular network by using toroidal wrap-around. This figure shows the network region of 19 cells. In the absence of wrap-around, cell 0 of the central cluster, shown in red, is uniformly surrounded and experiences interference from all sides. An edge cell like cell-15 experiences comparatively lesser interference. The wrap-around repeats the original cluster six times to uniformly surround the central cluster.

The entire network region relevant for simulations is a cluster of 19 cells (shown in bold).

In the wrap-around model, the signal or interference from any UE to a cell is treated as if that UE is in the original cell cluster and the gNB in any of the seven clusters as specified in ITU-R M.2101-0. The distances used to compute the path loss from a transmitter node at (a,b) to a receiver node at (x,y) is the minimum of these seven distances.

  • Distance between (x,y) and (a,b)

  • Distance between (x,y) and (a-3D,b-4D), where D is the distance between two adjacent gNBs (inter-site distance)

  • Distance between (x,y) and (a+3D,b+4D)

  • Distance between (x,y) and (a-32D,b+72D)

  • Distance between (x,y) and (a+332D,b-72D)

  • Distance between (x,y) and (a-532D,b-12D)

  • Distance between (x,y) and (a-532D,b-12D)

To calculate the modified distances between nodes due to the wrap-around, the function uses the hNRNodeDistanceCalculator helper class. If you disable wrap-around, then the distance between nodes is the normal Euclidean distance.

NR Protocol Stack

A node (gNB or UE) consists of applications generating traffic, a radio link control (RLC) layer, a medium access control (MAC) layer, and a physical layer (PHY). The hNRGNB and hNRUE helper classes create gNB and UE nodes, respectively, containing RLC, MAC, and PHY layers. For more details on each layer, refer to the 'NR Protocol Stack' section in the NR Cell Performance Evaluation with Physical Layer Integration example.

Scenario Configuration

Configure simulation parameters in the simParameters structure.

rng('default'); % Reset the random number generator
simParameters = []; % Clear the simParameters variable
simParameters.NumFramesSim = 5; % Simulation time, in number of 10 ms frames
simParameters.EnableWrapAround = true; % Enable wrap-around modeling
simParameters.SchedulingType = 0; % Slot-based scheduling

Specify the number of UEs in each cell, assuming that UEs have sequential radio network temporary identifiers (RNTIs) from 1 to simParameters.NumUEsCell. If you change the number of UEs, you must ensure that these simulation parameters are arrays of length equal to the value of simParameters.NumUEsCell: simParameters.UEDistance, ulPacketPeriodicity, ulPacketSizes, dlPacketPeriodicity, dlPacketSizes.

simParameters.NumUEsCell = 2; % Number of UEs in each cell
simParameters.UEDistance = [150; 250]; % Distance of UE from gNB in meters
simParameters.InterSiteDistance = 1732; % Distance between adjacent gNBs in meters

Set the channel bandwidth to 5 MHz and the subcarrier spacing (SCS) to 15 kHz as defined in section 5.3.2 of 3GPP TS 38.104.

simParameters.NumRBs = 25;
simParameters.SCS = 15; % kHz
simParameters.DLCarrierFreq = 2.635e9; % Hz
simParameters.ULCarrierFreq = 2.515e9; % Hz

Assume that the UL and DL carriers have the same channel bandwidth, and specify the transmit power and antenna gain.

simParameters.DLBandwidth = 5e6; % Hz
simParameters.ULBandwidth = 5e6; % Hz
simParameters.UETxPower = 23; % Tx power for all the UEs in dBm
simParameters.GNBTxPower = 32; % Tx power for gNBs in dBm
simParameters.GNBRxGain = 8; % Receiver antenna gain at gNB in dBi

Specify the signal-to-interference-plus-noise ratio (SINR) to CQI mapping table for a block error rate (BLER) of 0.1.

simParameters.SINR90pc = [-5.46 -0.46 4.54 9.05 11.54 14.04 15.54 18.04 ...
    20.04 22.43 24.93 25.43 27.43 30.43 33.43];

Specify the scheduling strategy and the maximum limit on the RBs allotted for PUSCH and PDSCH. The transmission limit applies only to new PUSCH and PDSCH assignments, and not to the retransmissions.

simParameters.SchedulerStrategy = 'PF'; % Supported scheduling strategies: 'PF', 'RR', and 'BestCQI'
simParameters.RBAllocationLimitUL = 20; % For PUSCH
simParameters.RBAllocationLimitDL = 20; % For PDSCH

Logging and Visualization Configuration

Specify the ID of cell of interest as an integer between 1 and 18, inclusive. The example shows visualizations and metrics for this cell and the central cell, cell-0.

simParameters.CellOfInterest = 15; % Set a value from 1 to 18. Set the value to 0 to visualize cell-0 only.
validateattributes(simParameters.CellOfInterest, {'numeric'}, {'integer', 'scalar', '>=', 0, '<=', 18}, 'simParameters.CellOfInterest', 'CellOfInterest')

The CQIVisualization and RBVisualization parameters control the display of the CQI visualization of RBs and the RB assignment visualization. To enable the RB visualization plot, set the RBVisualization field to true.

simParameters.CQIVisualization = true;
simParameters.RBVisualization = false;

Update the output metrics plots periodically, specifying NumMetricsSteps updates within the simulation.

simParameters.NumMetricsSteps = 10;

Write the logs to MAT-files. The example uses these logs for post-simulation analysis and visualization.

simParameters.ParametersLogFile = 'simParameters'; % For logging the simulation parameters
simParameters.SimulationLogFile = 'simulationLogs'; % For logging the simulation logs

Application traffic configuration

Set the periodic UL and DL application traffic pattern for UEs.

ulPacketPeriodicity = [10; 10]; % Periodicity, in ms, at which the UEs generate UL packets
ulPacketSize = [2e4; 2e4]; % Size of generated UL packets, in bytes
dlPacketPeriodicity = [10; 10]; % Periodicity, in ms, at which gNB generates DL packets
dlPacketSize = [2e4; 2e4]; % Size of generated DL packets, in bytes

Derived Parameters

Compute the derived parameters based on the primary configuration parameters specified in the previous section, and set some example-specific constants.

simParameters.DuplexMode = 0; % Frequency-division duplexing (FDD)
simParameters.NumClusters = 1;
simParameters.NumSitesPerCluster = 19; % Number of gNBs per cluster

Set the UE and gNB positions.

simParameters.GNBPositions = hMacrocellTopology(simParameters);
simParameters.UEPositions = cell(simParameters.NumSitesPerCluster, 1);
for idx = 1:simParameters.NumSitesPerCluster
    theta = rand(simParameters.NumUEsCell, 1)*(2*pi);
    % Set the UE position with respect to the gNB location
    simParameters.UEPositions{idx} = simParameters.GNBPositions(idx, :) + simParameters.UEDistance.*[cos(theta) sin(theta) zeros(simParameters.NumUEsCell, 1)];
end
simParameters.NCellIDList = 0:simParameters.NumSitesPerCluster-1; % List of physical cell IDs

Specify the CSI-RS resource configuration, assuming that all UEs measure channel quality on the same CSI-RS resource.

simParameters.CSIRSRowNumber = 2; % Possible row numbers for single transmit antenna case are 1 and 2
simParameters.SubbandSize = 8; % Size of sub-band for CQI reporting in terms of number of RBs

Calculate the slot duration for the selected SCS and the number of slots in a 10 ms frame.

slotDuration = 1/(simParameters.SCS/15); % In ms
numSlotsFrame = 10/slotDuration; % Number of slots in a 10 ms frame
numSlotsSim = simParameters.NumFramesSim*numSlotsFrame; % Number of slots in the simulation

Set the interval at which the example updates metrics visualization, number of slots. Because this example uses a time granularity of one slot, the MetricsStepSize field must be an integer.

simParameters.MetricsStepSize = ceil(numSlotsSim / simParameters.NumMetricsSteps);
if mod(numSlotsSim, simParameters.NumMetricsSteps) ~= 0
    % Update the NumMetricsSteps parameter if it does not exactly divide NumSlotsSim
    simParameters.NumMetricsSteps = floor(numSlotsSim / simParameters.MetricsStepSize);
end

Specify one logical channel in each UE, and set the logical channel configuration for all nodes (UEs and gNBs) in the example.

numLogicalChannels = 1;
simParameters.LCHConfig.LCID = 4; % Logical channel ID (logical channel ID of data radio bearers starts from 4)

Specify the RLC entity direction as 0 to specify DL only, 1 to specify UL only, or 2 to specify both UL and DL.

simParameters.RLCConfig.EntityDir = 2;

Create RLC channel configuration structure.

rlcChannelConfigStruct.LCGID = 1; % Mapping between logical channel and logical channel group ID
rlcChannelConfigStruct.Priority = 1; % Priority of each logical channel
rlcChannelConfigStruct.PBR = 8; % Prioritized bitrate (PBR), in kilobytes per second, of each logical channel
rlcChannelConfigStruct.BSD = 10; % Bucket size duration (BSD), in ms, of each logical channel
rlcChannelConfigStruct.EntityType = simParameters.RLCConfig.EntityDir;
rlcChannelConfigStruct.LogicalChannelID = simParameters.LCHConfig.LCID;

Set the maximum RLC service data unit (SDU) length, in bytes, as specified in 3GPP TS 38.323, and the total number of nodes in the simulation.

simParameters.maxRLCSDULength = 9000;
simParameters.MaxReceivers = simParameters.NumSitesPerCluster*(simParameters.NumUEsCell + 1);

if ~isfield(simParameters, 'SchedulingType') || simParameters.SchedulingType == 0 % No scheduling type or slot-based scheduling
    rbAssignmentPlotPeriodicity = numSlotsFrame; % Update RB assignment visualization every frame (10 ms)
    tickGranularity = 14;
    simParameters.PUSCHMappingType = 'A';
    simParameters.PDSCHMappingType = 'A';
else % Symbol-based scheduling
    rbAssignmentPlotPeriodicity = 1; % Update RB assignment visualization every slot
    tickGranularity = 1;
    simParameters.PUSCHMappingType = 'B';
    simParameters.PDSCHMappingType = 'B';
end

Multicell Setup

Set up the 19-cell topology with each cell consisting of one gNB and one UE. For each cell, create the gNB and UE objects, initialize the channel quality information for UEs, and set up the logical channel at gNB and UEs. The hNRGNB and hNRUE helper classes create gNB and UE nodes respectively, containing the RLC, MAC, and PHY layers.

gNB = cell(simParameters.NumSitesPerCluster, 1);
UEs = cell(simParameters.NumSitesPerCluster, simParameters.NumUEsCell);

Create DL and UL packet distribution objects, and initialize a wrap-around distance calculator object.

dlPacketDistributionObj = hNRPacketDistribution(simParameters, 0); % 0 for DL
ulPacketDistributionObj = hNRPacketDistribution(simParameters, 1); % 1 for UL
distCalc = hNRNodeDistanceCalculator(simParameters);
for siteIdx = 1:simParameters.NumSitesPerCluster
    simParameters.NCellID = simParameters.NCellIDList(siteIdx); % Cell ID
    simParameters.Position = simParameters.GNBPositions(siteIdx, :);
    simParameters.NumUEs = simParameters.NumUEsCell; % Number of UEs in a cell
    % Create scheduler
    switch(simParameters.SchedulerStrategy)
        case 'RR' % Round robin scheduler
            scheduler = hNRSchedulerRoundRobin(simParameters);
        case 'PF' % Proportional fair scheduler
            scheduler = hNRSchedulerProportionalFair(simParameters);
        case 'BestCQI' % Best CQI scheduler
            scheduler = hNRSchedulerBestCQI(simParameters);
    end

    % Create gNB
    gNB{siteIdx} = hNRGNB(simParameters);
    addScheduler(gNB{siteIdx}, scheduler); % Add scheduler to gNB
    gNB{siteIdx}.PhyEntity = hNRGNBPhy(simParameters); % Create PHY layer instance
    configurePhy(gNB{siteIdx}, simParameters); % Configure PHY layer
    % Register distance calculator for wrap-around distance computations
    gNB{siteIdx}.DistanceCalculatorFcn = @distCalc.getDistance;
    setPhyInterface(gNB{siteIdx}); % Set up the interface to PHY layer

    for ueIdx = 1:simParameters.NumUEsCell
        simParameters.Position = simParameters.UEPositions{siteIdx}(ueIdx, :); % Position of UE in (x,y,z) coordinates
        UEs{siteIdx, ueIdx} = hNRUE(simParameters, ueIdx);
        UEs{siteIdx, ueIdx}.PhyEntity = hNRUEPhy(simParameters, ueIdx); % Create PHY layer instance
        configurePhy(UEs{siteIdx, ueIdx}, simParameters); % Configure PHY layer
        % Register distance calculator for wrap-around distance computations
        UEs{siteIdx, ueIdx}.DistanceCalculatorFcn =  @distCalc.getDistance;
        setPhyInterface(UEs{siteIdx, ueIdx}); % Set up the interface to PHY

        % Set up logical channel at gNB for the UE
        configureLogicalChannel(gNB{siteIdx}, ueIdx, rlcChannelConfigStruct);
        % Set up logical channel at UE
        configureLogicalChannel(UEs{siteIdx, ueIdx}, ueIdx, rlcChannelConfigStruct);

        % Add data traffic pattern generators to gNB and UE nodes
        % Calculate the data rate (in kbps) of On-Off traffic pattern using
        % packet size (in bytes) and packet interval (in ms)
        ulDataRate = ceil(1000/ulPacketPeriodicity(ueIdx)) * ulPacketSize(ueIdx) * 8e-3;
        % Limit the size of the generated application packet to the maximum RLC
        % SDU size. The maximum supported RLC SDU size is 9000 bytes
        if ulPacketSize(ueIdx) > simParameters.maxRLCSDULength
            ulPacketSize(ueIdx) = simParameters.maxRLCSDULength;
        end

        % Create an object for On-Off network traffic pattern and add it to the
        % specified UE. This object generates the uplink data traffic on the UE
        ulApp = networkTrafficOnOff('PacketSize', ulPacketSize(ueIdx), 'GeneratePacket', true, ...
            'OnTime', simParameters.NumFramesSim/100, 'OffTime', 0, 'DataRate', ulDataRate);
        UEs{siteIdx, ueIdx}.addApplication(ueIdx, simParameters.LCHConfig.LCID, ulApp);
        dlDataRate = ceil(1000/dlPacketPeriodicity(ueIdx)) * dlPacketSize(ueIdx) * 8e-3;
        if dlPacketSize(ueIdx) > simParameters.maxRLCSDULength
            dlPacketSize(ueIdx) = simParameters.maxRLCSDULength;
        end
        % Create an object for On-Off network traffic pattern for the specified
        % UE and add it to the gNB. This object generates the downlink data
        % traffic on the gNB for the UE
        dlApp = networkTrafficOnOff('PacketSize', dlPacketSize(ueIdx), 'GeneratePacket', true, ...
            'OnTime', simParameters.NumFramesSim/100, 'OffTime', 0, 'DataRate', dlDataRate);
        gNB{siteIdx}.addApplication(ueIdx, simParameters.LCHConfig.LCID, dlApp);
    end
    % Setup the UL and DL packet distribution mechanism
    hNRSetUpPacketDistribution(simParameters, gNB{siteIdx}, UEs(siteIdx, :), dlPacketDistributionObj, ulPacketDistributionObj);
end

Set up logging and visualization, specifying the central cell (cell 0) and the cell of interest.

cellsOfInterest = unique([0; simParameters.CellOfInterest]);
numCellsOfInterest = length(cellsOfInterest); % Number of cells that the example logs and visualizes

Visualize the network topology

hTopologyVisualizer(simParameters);

Figure Topology Visualization contains an axes. The axes with title Network Topology Visualization contains 76 objects of type line, text. This object represents UE Positions.

Log and visualize PHY and MAC metrics in cell arrays.

simSchedulingLogger = cell(numCellsOfInterest, 1);
% Cell array for PHY metrics logging and visualization
simPhyLogger = cell(numCellsOfInterest, 1);
visualizer = cell(numCellsOfInterest, 1);

for siteIdx = 1:numCellsOfInterest
    simParameters.NCellID = cellsOfInterest(siteIdx);
    simParameters.CellOfInterest = simParameters.NCellID;
    % Create an object for MAC scheduling information visualization and logging
    simSchedulingLogger{siteIdx} = hNRSchedulingLogger(simParameters);
    % Create an object for PHY layer metrics logging
    simPhyLogger{siteIdx} = hNRPhyLogger(simParameters);
    % Create visualization object for MAC and PHY metrics
    visualizer{siteIdx} = hNRMetricsVisualizer(simParameters, 'MACLogger', simSchedulingLogger{siteIdx}, 'PhyLogger', simPhyLogger{siteIdx});
end

Processing Loop

Simulation is run slot by slot. For each cell, in each slot, these operations are executed:

  • Run the MAC and PHY layers of gNB

  • Run the MAC and PHY layers of UEs

  • Log and visualize metrics for each layer

  • Advance the timer for the nodes and send a trigger to application and RLC layers every millisecond. The application layer and RLC layer execute their scheduled operations based on a 1 ms timer trigger.

slotNum = 0;
numSymbolsSim = numSlotsSim * 14; % Simulation time in units of symbol duration
% Run processing loop
for symbolNum = 1 : tickGranularity : numSymbolsSim
    if mod(symbolNum - 1, 14) == 0
        slotNum = slotNum + 1;
    end
    % Because all the cells operate on the same SCS, slot durations do not vary
    for siteIdx = 1:simParameters.NumSitesPerCluster % For each site
        run(gNB{siteIdx});

        % Run MAC and PHY layers of UEs
        for ueIdx = 1:simParameters.NumUEsCell
            run(UEs{siteIdx, ueIdx});
        end

        cellIdx = find((siteIdx-1) == cellsOfInterest, 1);
        if ~isempty(cellIdx)
            % MAC logging
            logCellSchedulingStats(simSchedulingLogger{cellIdx}, symbolNum, gNB{siteIdx}, UEs(siteIdx, :));

            % PHY logging
            logCellPhyStats(simPhyLogger{cellIdx}, symbolNum, gNB{siteIdx}, UEs(siteIdx, :));
        end
    end

    for siteIdx = 1:simParameters.NumSitesPerCluster
        % Advance timer ticks for gNB and UEs by the number of symbols per slot
        advanceTimer(gNB{siteIdx}, tickGranularity);
        for ueIdx = 1:simParameters.NumUEsCell
            advanceTimer(UEs{siteIdx, ueIdx}, tickGranularity);
        end
    end

    for idx = 1:numCellsOfInterest
        % Visualization
        % Check slot boundary
        if symbolNum > 1 && ((simParameters.SchedulingType == 1 && mod(symbolNum, 14) == 0) || (simParameters.SchedulingType == 0 && mod(symbolNum-1, 14) == 0))
            % RB assignment visualization (if enabled)
            if simParameters.RBVisualization
                if mod(slotNum, rbAssignmentPlotPeriodicity) == 0
                    % Plot at slot boundary, if the update periodicity is reached
                    plotRBGrids(simSchedulingLogger{idx});
                end
            end
            % CQI grid visualization (if enabled)
            if simParameters.CQIVisualization
                if mod(slotNum, numSlotsFrame) == 0 % Plot at frame boundary
                    plotCQIRBGrids(simSchedulingLogger{idx});
                end
            end
            % If the update periodicity is reached, plot scheduler metrics and PHY metrics visualization
            % at slot boundary
            if mod(slotNum, simParameters.MetricsStepSize) == 0
                plotMetrics(visualizer{idx}, slotNum);
            end
        end
    end
end

Figure Channel Quality Visualization contains an axes and other objects of type uicontrol. The axes with title Channel Quality Visualization for Cell ID - 0 contains 40 objects of type rectangle.

Figure Channel Quality Visualization contains an axes and other objects of type uicontrol. The axes with title Channel Quality Visualization for Cell ID - 15 contains 40 objects of type rectangle.

for idx = 1:numCellsOfInterest
    [dlStats, ulStats] = getPerformanceIndicators(simSchedulingLogger{idx});
    [logInfo.BLERLogs, logInfo.AvgBLERLogs] = getBLERLogs(simPhyLogger{idx}); % Block Error rate logs
    fprintf('\n\nMetrics for cell %d :\n\n', cellsOfInterest(idx));
    fprintf('Peak UL throughput: %0.2f Mbps. Achieved average UL Throughput: %0.2f Mbps', ulStats(1, 1), ulStats(2, 1));
    fprintf('\nPeak DL throughput: %0.2f Mbps. Achieved average DL Throughput: %0.2f Mbps', dlStats(1, 1), dlStats(2, 1));
    fprintf('\nAchieved average UL Goodput: %0.2f Mbps. Achieved average DL Goodput: %0.2f Mbps', ulStats(5, 1), dlStats(5, 1));
    fprintf('\nPeak UL spectral efficiency: %0.2f bits/s/Hz. Achieved average UL spectral efficiency: %0.2f bits/s/Hz ', ulStats(3, 1), ulStats(4, 1));
    fprintf('\nPeak DL spectral efficiency: %0.2f bits/s/Hz. Achieved average DL spectral efficiency: %0.2f bits/s/Hz', dlStats(3, 1), dlStats(4, 1));
    disp(['Block error rate for each UE in the uplink direction: [' num2str(round(logInfo.AvgBLERLogs(:, 2)', 2)) ']']);
    disp(['Block error rate for each UE in the downlink direction: [' num2str(round(logInfo.AvgBLERLogs(:, 1)', 2)) ']']);
end
Metrics for cell 0 :
Peak UL throughput: 31.11 Mbps. Achieved average UL Throughput: 2.48 Mbps
Peak DL throughput: 31.11 Mbps. Achieved average DL Throughput: 3.19 Mbps
Achieved average UL Goodput: 2.48 Mbps. Achieved average DL Goodput: 3.10 Mbps
Peak UL spectral efficiency: 6.22 bits/s/Hz. Achieved average UL spectral efficiency: 0.50 bits/s/Hz
Peak DL spectral efficiency: 6.22 bits/s/Hz. Achieved average DL spectral efficiency: 0.64 bits/s/Hz
Block error rate for each UE in the uplink direction: [0  0]
Block error rate for each UE in the downlink direction: [0.04        0.04]
Metrics for cell 15 :
Peak UL throughput: 31.11 Mbps. Achieved average UL Throughput: 2.69 Mbps
Peak DL throughput: 31.11 Mbps. Achieved average DL Throughput: 3.33 Mbps
Achieved average UL Goodput: 2.68 Mbps. Achieved average DL Goodput: 3.24 Mbps
Peak UL spectral efficiency: 6.22 bits/s/Hz. Achieved average UL spectral efficiency: 0.54 bits/s/Hz
Peak DL spectral efficiency: 6.22 bits/s/Hz. Achieved average DL spectral efficiency: 0.67 bits/s/Hz
Block error rate for each UE in the uplink direction: [0        0.05]
Block error rate for each UE in the downlink direction: [0.04        0.06]

Simulation Visualization

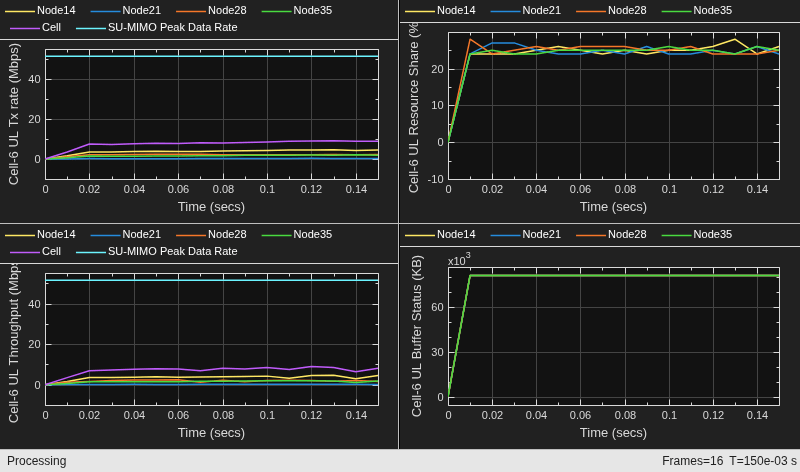

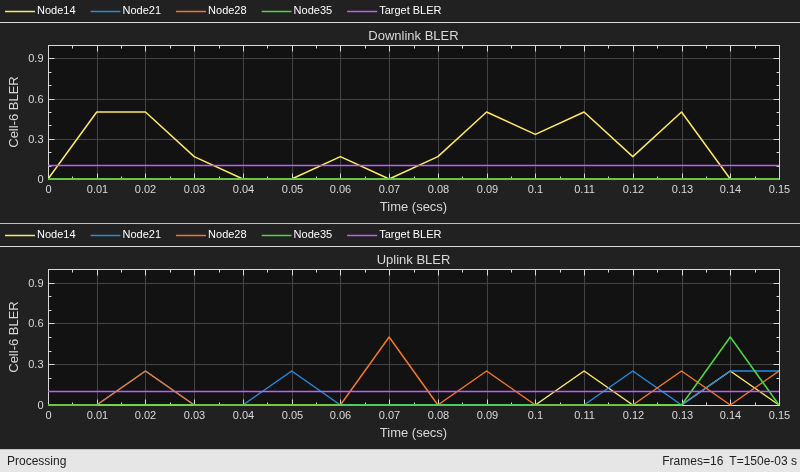

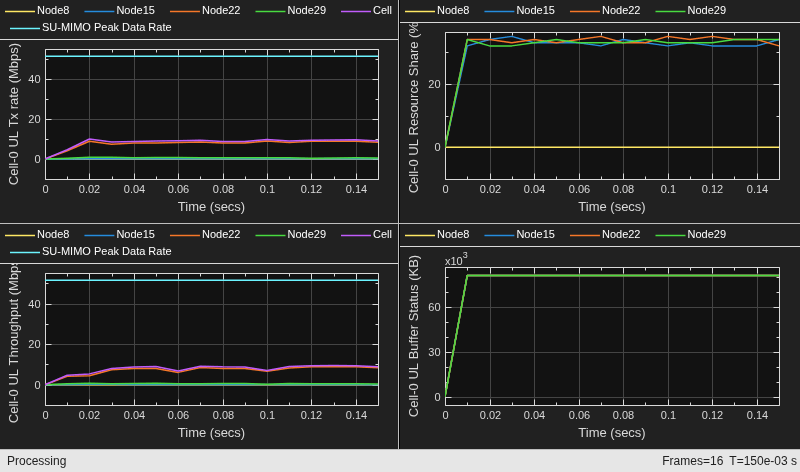

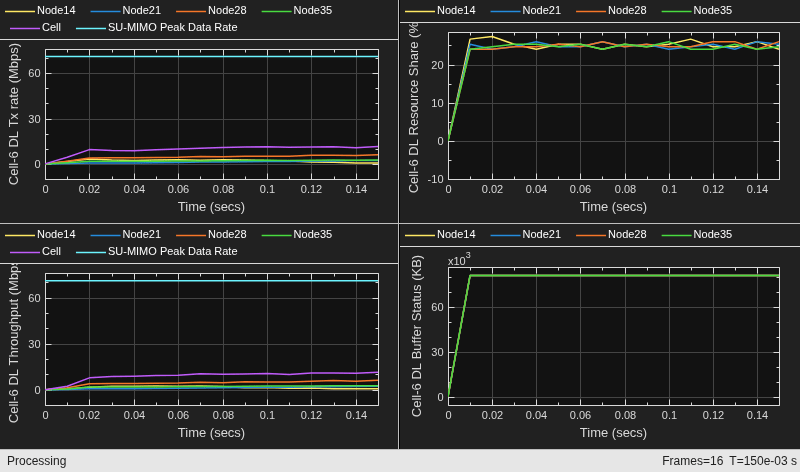

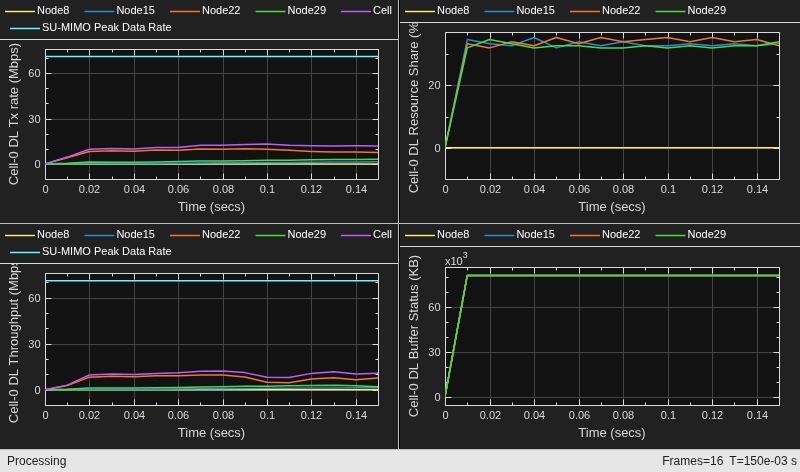

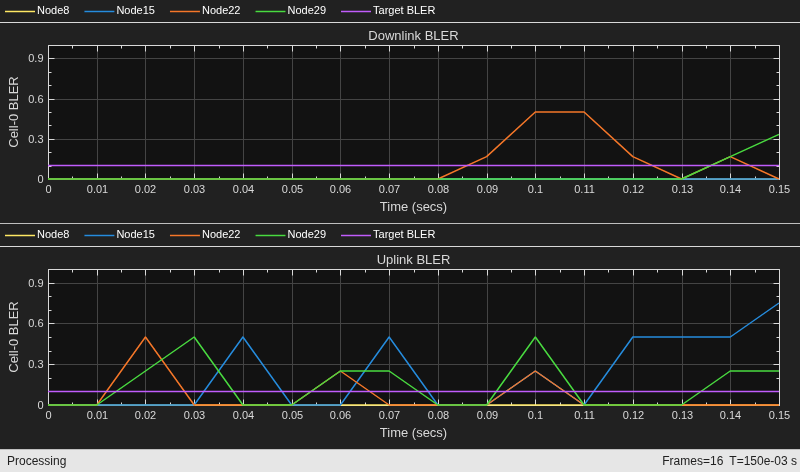

For the center cell (cell 0) and the cell of interest, the run time visualizations show:

The simulation results show that the center cell and edge cell have similar performance metrics with wrap around. Below are the simulation results with no wrap-around. You can observe significant performance difference between center cell and edge cell.

Simulation Logs

The parameters used for simulation and the simulation logs are saved in MAT-files for post simulation analysis and visualization. The simulation parameters are saved in a MAT-file with the file name as the value of configuration parameter simParameters.ParametersLogFile. For more details, see the NR Intercell Interference Modeling example.

% Get the logs
if(simParameters.DuplexMode == 0) % FDD
    logInfo = struct('NCellID', [], 'DLTimeStepLogs', [], 'ULTimeStepLogs', [], 'SchedulingAssignmentLogs', [], 'BLERLogs', [], 'AvgBLERLogs', []);
else
    logInfo = struct('TimeStepLogs', [], 'SchedulingAssignmentLogs', [], 'BLERLogs', [], 'AvgBLERLogs', []);
end
simulationLogs = cell(simParameters.NumSitesPerCluster, 1);
for siteIdx = 1:numCellsOfInterest
    logInfo.NCellID = cellsOfInterest(siteIdx);
    if(simParameters.DuplexMode == 0) % FDD
        [logInfo.DLTimeStepLogs, logInfo.ULTimeStepLogs] = getSchedulingLogs(simSchedulingLogger{siteIdx});
    else % TDD
        logInfo.TimeStepLogs = getSchedulingLogs(simSchedulingLogger{siteIdx});
    end
    logInfo.SchedulingAssignmentLogs = getGrantLogs(simSchedulingLogger{siteIdx}); % Scheduling assignments log
    [logInfo.BLERLogs, logInfo.AvgBLERLogs] = getBLERLogs(simPhyLogger{siteIdx}); % Block error rate logs
    simulationLogs{siteIdx, 1} = logInfo;
end
save(simParameters.ParametersLogFile, 'simParameters'); % Save simulation parameters in a MAT-file
save(simParameters.SimulationLogFile, 'simulationLogs'); % Save simulation logs in a MAT-file

References

[1] 3GPP TS 38.104. “NR; Base Station (BS) radio transmission and reception.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.

[2] 3GPP TS 38.214. “NR; Physical layer procedures for data.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.

[3] 3GPP TS 38.321. “NR; Medium Access Control (MAC) protocol specification.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.

[4] 3GPP TS 38.322. “NR; Radio Link Control (RLC) protocol specification.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.

[5] 3GPP TS 38.323. “NR; Packet Data Convergence Protocol (PDCP) specification.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.

[6] 3GPP TS 38.331. “NR; Radio Resource Control (RRC) protocol specification.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.

[7] 3GPP TR 37.910. “Study on self evaluation towards IMT-2020 submission.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.

Related Topics
