boundaryline

Draw boundary line plot

Since R2021b

Syntax

boundaryline(x,y)

boundaryline(x,y,LineSpec)

boundaryline(___,Name,Value)

boundaryline(ax, ___)

bline = boundaryline(___)

Description

Use Default Boundary and Line Specification

boundaryline(x,y) plots a boundary line specified by the x data x and the y data y. The boundary line contains hatch marks that extend from a fixed spacing and length along the boundary line.

boundaryline(x,y,LineSpec) plots a boundary line specified by the line specification linespec.

Specify Name,Value Arguments and Axis

boundaryline(___,Name,Value) plots a boundary line specified by one or more Name,Value pairs. Adjust the look of the boundary line with the 'Hatches', 'HatchLength', 'HatchTangency', 'HatchAngle', 'HatchSpacing', and 'FlipBoundary' properties. Specify name-value pair arguments after all other input arguments.

boundaryline(ax, ___) plots a boundary line on the specified axes ax instead of the current axes, such as that from the gca function.

Return Boundary Line Object

bline = boundaryline(___) returns a boundary line object using any of the input argument combinations in the previous syntaxes. Specify arguments as previously listed.

Examples

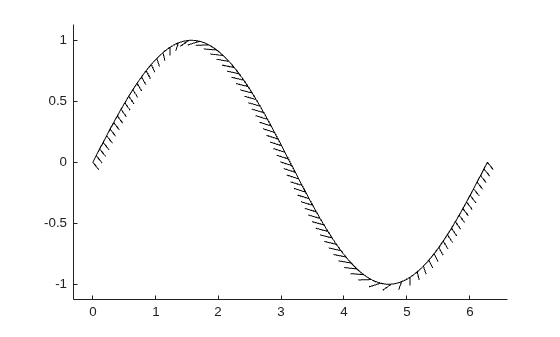

Plot Boundary Line Sine Wave

Plot the boundary line of a sine wave.

x = linspace(0,2*pi);
y = sin(x);
boundaryline(x,y)

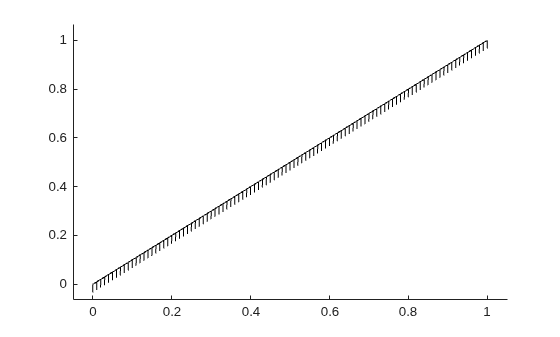

Plot Boundary Line with Third-Spaced Hatches

Plot a boundary line with third-spaced hatches. Return the boundary line object in b.

b = boundaryline([0,1],[0,1],'Hatches','//')

b =
  BoundaryLine with properties:

              Color: [0 0 0]
          LineStyle: '-'
          LineWidth: 0.5000
             Marker: 'none'
    MarkerFaceColor: 'none'
         MarkerSize: 6
       HatchSpacing: 0.0125
        HatchLength: 0.0300
         HatchAngle: 225
            Hatches: '//'
      HatchTangency: on
       FlipBoundary: off
              XData: [0 1]
              YData: [0 1]

  Use GET to show all properties

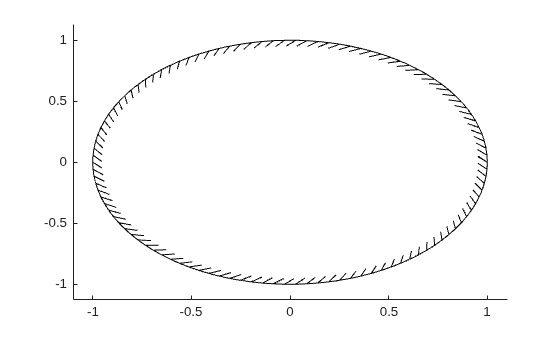

Plot Circle Boundary Line with Flipped Boundary

Plot a circle boundary line and flip the boundary after creation. Return the boundary line object in b.

t = linspace(0, 2*pi);
      x = cos(t);
      y = sin(t);
      b = boundaryline(x,y)

b =
  BoundaryLine with properties:

              Color: [0 0 0]
          LineStyle: '-'
          LineWidth: 0.5000
             Marker: 'none'
    MarkerFaceColor: 'none'
         MarkerSize: 6
       HatchSpacing: 0.0255
        HatchLength: 0.0300
         HatchAngle: 225
            Hatches: '/'
      HatchTangency: on
       FlipBoundary: off
              XData: [1 0.9980 0.9920 0.9819 0.9679 0.9501 0.9284 0.9029 0.8738 0.8413 0.8053 0.7660 0.7237 0.6785 0.6306 0.5801 0.5272 0.4723 0.4154 0.3569 0.2969 0.2358 0.1736 0.1108 0.0476 -0.0159 -0.0792 -0.1423 -0.2048 -0.2665 ... ] (1x100 double)
              YData: [0 0.0634 0.1266 0.1893 0.2511 0.3120 0.3717 0.4298 0.4862 0.5406 0.5929 0.6428 0.6901 0.7346 0.7761 0.8146 0.8497 0.8815 0.9096 0.9341 0.9549 0.9718 0.9848 0.9938 0.9989 0.9999 0.9969 0.9898 0.9788 0.9638 0.9450 ... ] (1x100 double)

  Use GET to show all properties

      b.FlipBoundary = true

b =
  BoundaryLine with properties:

              Color: [0 0 0]
          LineStyle: '-'
          LineWidth: 0.5000
             Marker: 'none'
    MarkerFaceColor: 'none'
         MarkerSize: 6
       HatchSpacing: 0.0255
        HatchLength: 0.0300
         HatchAngle: 225
            Hatches: '/'
      HatchTangency: on
       FlipBoundary: on
              XData: [1 0.9980 0.9920 0.9819 0.9679 0.9501 0.9284 0.9029 0.8738 0.8413 0.8053 0.7660 0.7237 0.6785 0.6306 0.5801 0.5272 0.4723 0.4154 0.3569 0.2969 0.2358 0.1736 0.1108 0.0476 -0.0159 -0.0792 -0.1423 -0.2048 -0.2665 ... ] (1x100 double)
              YData: [0 0.0634 0.1266 0.1893 0.2511 0.3120 0.3717 0.4298 0.4862 0.5406 0.5929 0.6428 0.6901 0.7346 0.7761 0.8146 0.8497 0.8815 0.9096 0.9341 0.9549 0.9718 0.9848 0.9938 0.9989 0.9999 0.9969 0.9898 0.9788 0.9638 0.9450 ... ] (1x100 double)

  Use GET to show all properties

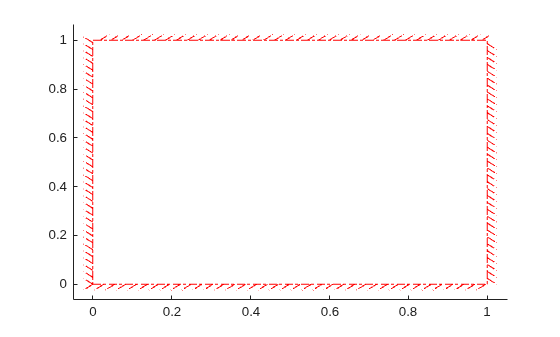

Plot Dashed and Dotted Square Boundary Line in Red

Plot a red, dotted and dashed, square boundary line on a specified axis a is the current axis.

a = gca;
boundaryline(a,[0,1,1,0,0],[0,0,1,1,0],'r-.')

Input Arguments

x — x coordinate data

numeric vector

x coordinate data, specified as a numeric vector. The function uses this data to plot the x coordinates of the boundary line.

Data Types: double

y — y coordinate data

numeric vector

y coordinate data, specified as a numeric vector. The function uses this data to plot the y coordinates of the boundary line.

Data Types: double

ax — Valid axes

scalar handle

Valid axes, specified as a scalar handle. By default, this function plots to the current axes, obtainable with the gca function.

Data Types: double

LineSpec — Line style, marker, and color

string scalar | character vector

Line style, marker, and color, specified as a string scalar or character vector containing symbols. The symbols can appear in any order. You do not need to specify all three characteristics (line style, marker, and color). For example, if you omit the line style and specify the marker, then the plot shows only the marker and no line.

Example: "--or" is a red dashed line with circle markers.

Line Style	Description	Resulting Line
"-"	Solid line
"--"	Dashed line
":"	Dotted line
"-."	Dash-dotted line

Marker	Description	Resulting Marker
"o"	Circle
"+"	Plus sign
"*"	Asterisk
"."	Point
"x"	Cross
"_"	Horizontal line
"|"	Vertical line
"square"	Square
"diamond"	Diamond
"^"	Upward-pointing triangle
"v"	Downward-pointing triangle
">"	Right-pointing triangle
"<"	Left-pointing triangle
"pentagram"	Pentagram
"hexagram"	Hexagram

Color Name	Short Name	RGB Triplet	Appearance
"red"	"r"	[1 0 0]
"green"	"g"	[0 1 0]
"blue"	"b"	[0 0 1]
"cyan"	"c"	[0 1 1]
"magenta"	"m"	[1 0 1]
"yellow"	"y"	[1 1 0]
"black"	"k"	[0 0 0]
"white"	"w"	[1 1 1]

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: 'Hatches','//'

Note

These properties are only a subset. For a full list, see Line Properties.

Hatches — Hatch style

'/' (default) | '\' | '|'

Hatch style, specified as '/', '\', or '|'. The length of the string determines the hatch spacing. The more hatches specified, the closer the spacing. For example:

• For half-spaced forward slants, use 'Hatches','//'.

• For a single-spaced perpendicular slant, use 'Hatches','|'.

• For third-spaced backward slants, use 'Hatches','\\\'.

Data Types: char | string

FlipBoundary — Flip boundary hatch angle

'off' (default) | 'on'

Flip boundary hatch angle by 180 degrees, specified as 'off' or 'on'.

• 'off' — Do not flip the hatch angle.

• 'on' — Flip the hatch angle by 180 degrees.

Data Types: char | string

HatchTangency — Hatch angle tangency

'on' (default) | 'off'

Hatch angle tangency, specified as 'on' or 'off'.

• 'on' — Hatch angle is relative to the tangent of the line segment. The function determines the tangency by evaluating the line integral traversing from the start to the end of the x and y data.

• 'off' — Hatch angle is relative to 0.

Data Types: char | string

HatchLength — Length of hatch segments

numeric scalar

Length of hatch segments, specified as a numeric scalar.

Data Types: double

HatchAngle — Angle of hatch segments

numeric scalar

Angle of hatch segments, specified as a numeric scalar. The function automatically calculates the hatch angle if you specify a style for 'Hatches'.

Data Types: char | string

HatchSpacing — Spacing between hatch segments

numeric scalar

Spacing between hatch segments, specified as a numeric scalar.

Data Types: char | string

LineStyle — Line style

"-" (default) | "--" | ":" | "-." | "none"

Line style, specified as one of the options listed in this table.

Line Style	Description	Resulting Line
"-"	Solid line
"--"	Dashed line
":"	Dotted line
"-."	Dash-dotted line
"none"	No line	No line

LineWidth — Line width

0.5 (default) | positive value

Line width, specified as a positive value in points, where 1 point = 1/72 of an inch. If the line has markers, then the line width also affects the marker edges.

The line width cannot be thinner than the width of a pixel. If you set the line width to a value that is less than the width of a pixel on your system, the line displays as one pixel wide.

Output Arguments

bline — boundary line object

Aero.graphics.primitive.BoundaryLine object

Boundary line object, returned as an Aero.graphics.primitive.BoundaryLine object.

Version History

Introduced in R2021b
