CloseIn

Close-in propagation model

Description

Model the behavior of electromagnetic radiation from a point of transmission as it travels through urban macro cell scenarios [1] by using a CloseIn object. Close-in propagation models have no enforced frequency range.

Creation

Create a CloseIn object by using the propagationModel function.

Properties

expand all

Free-space reference distance, specified as a scalar in meters.

Note

The close-in model is valid for distances greater than or equal to the ReferenceDistance. Path loss is 0 for distances less than ReferenceDistance.

Data Types: double

Path loss exponent, specified as a scalar.

Data Types: double

Standard deviation of the zero-mean Gaussian random variable, specified as a scalar in decibels (dB).

Data Types: double

Number of data points of the zero-mean Gaussian random variable, specified as an integer.

Data Types: double

Object Functions

pathlossPath loss of radio wave propagation
rangeRange of radio wave propagation
addAdd propagation models

Examples

collapse all

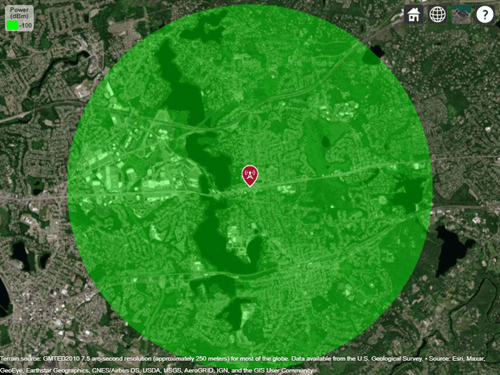

Display the coverage area for a transmitter using the close-in propagation model.

pm = propagationModel("close-in");
tx = txsite("Name","Apple Hill","Latitude",42.3001,"Longitude",-71.3604);
coverage(tx,pm)

References

[1] Sun, Shu, Theodore S. Rappaport, Timothy A. Thomas, Amitava Ghosh, Huan C. Nguyen, Istvan Z. Kovacs, Ignacio Rodriguez, Ozge Koymen, and Andrzej Partyka. “Investigation of Prediction Accuracy, Sensitivity, and Parameter Stability of Large-Scale Propagation Path Loss Models for 5G Wireless Communications.” IEEE Transactions on Vehicular Technology 65, no. 5 (May 2016): 2843–60. https://doi.org/10.1109/TVT.2016.2543139.

Version History

Introduced in R2017b
