yamnetPreprocess

Preprocess audio for YAMNet classification

Since R2021a

    Description

    example

    features = yamnetPreprocess(audioIn,fs) generates mel spectrograms from audioIn that can be fed to the YAMNet pretrained network.

    features = yamnetPreprocess(audioIn,fs,'OverlapPercentage',OP) specifies the overlap percentage between consecutive audio frames.

    For example, features = yamnetPreprocess(audioIn,fs,'OverlapPercentage',75) applies a 75% overlap between consecutive frames used to generate the spectrograms.

    Examples

    collapse all

    Download and unzip the Audio Toolbox™ model for YAMNet.

    Type yamnet at the Command Window. If the Audio Toolbox model for YAMNet is not installed, then the function provides a link to the location of the network weights. To download the model, click the link. Unzip the file to a location on the MATLAB path.

    Alternatively, execute the following commands to download and unzip the YAMNet model to your temporary directory.

    downloadFolder = fullfile(tempdir,'YAMNetDownload');
    loc = websave(downloadFolder,'https://ssd.mathworks.com/supportfiles/audio/yamnet.zip');
    YAMNetLocation = tempdir;
    unzip(loc,YAMNetLocation)
    addpath(fullfile(YAMNetLocation,'yamnet'))

    Check that the installation is successful by typing yamnet at the Command Window. If the network is installed, then the function returns a SeriesNetwork (Deep Learning Toolbox) object.

    yamnet
    ans =
      SeriesNetwork with properties:

             Layers: [86×1 nnet.cnn.layer.Layer]
         InputNames: {'input_1'}
        OutputNames: {'Sound'}



    Load a pretrained YAMNet convolutional neural network and examine the layers and classes.

    Use yamnet to load the pretrained YAMNet network. The output net is a SeriesNetwork (Deep Learning Toolbox) object.

    net = yamnet
    net =
      SeriesNetwork with properties:

             Layers: [86×1 nnet.cnn.layer.Layer]
         InputNames: {'input_1'}
        OutputNames: {'Sound'}



    View the network architecture using the Layers property. The network has 86 layers. There are 28 layers with learnable weights: 27 convolutional layers, and 1 fully connected layer.

    net.Layers
    ans =
      86x1 Layer array with layers:

         1   'input_1'                    Image Input              96×64×1 images
         2   'conv2d'                     Convolution              32 3×3×1 convolutions with stride [2  2] and padding 'same'
         3   'b'                          Batch Normalization      Batch normalization with 32 channels
         4   'activation'                 ReLU                     ReLU
         5   'depthwise_conv2d'           Grouped Convolution      32 groups of 1 3×3×1 convolutions with stride [1  1] and padding 'same'
         6   'L11'                        Batch Normalization      Batch normalization with 32 channels
         7   'activation_1'               ReLU                     ReLU
         8   'conv2d_1'                   Convolution              64 1×1×32 convolutions with stride [1  1] and padding 'same'
         9   'L12'                        Batch Normalization      Batch normalization with 64 channels
        10   'activation_2'               ReLU                     ReLU
        11   'depthwise_conv2d_1'         Grouped Convolution      64 groups of 1 3×3×1 convolutions with stride [2  2] and padding 'same'
        12   'L21'                        Batch Normalization      Batch normalization with 64 channels
        13   'activation_3'               ReLU                     ReLU
        14   'conv2d_2'                   Convolution              128 1×1×64 convolutions with stride [1  1] and padding 'same'
        15   'L22'                        Batch Normalization      Batch normalization with 128 channels
        16   'activation_4'               ReLU                     ReLU
        17   'depthwise_conv2d_2'         Grouped Convolution      128 groups of 1 3×3×1 convolutions with stride [1  1] and padding 'same'
        18   'L31'                        Batch Normalization      Batch normalization with 128 channels
        19   'activation_5'               ReLU                     ReLU
        20   'conv2d_3'                   Convolution              128 1×1×128 convolutions with stride [1  1] and padding 'same'
        21   'L32'                        Batch Normalization      Batch normalization with 128 channels
        22   'activation_6'               ReLU                     ReLU
        23   'depthwise_conv2d_3'         Grouped Convolution      128 groups of 1 3×3×1 convolutions with stride [2  2] and padding 'same'
        24   'L41'                        Batch Normalization      Batch normalization with 128 channels
        25   'activation_7'               ReLU                     ReLU
        26   'conv2d_4'                   Convolution              256 1×1×128 convolutions with stride [1  1] and padding 'same'
        27   'L42'                        Batch Normalization      Batch normalization with 256 channels
        28   'activation_8'               ReLU                     ReLU
        29   'depthwise_conv2d_4'         Grouped Convolution      256 groups of 1 3×3×1 convolutions with stride [1  1] and padding 'same'
        30   'L51'                        Batch Normalization      Batch normalization with 256 channels
        31   'activation_9'               ReLU                     ReLU
        32   'conv2d_5'                   Convolution              256 1×1×256 convolutions with stride [1  1] and padding 'same'
        33   'L52'                        Batch Normalization      Batch normalization with 256 channels
        34   'activation_10'              ReLU                     ReLU
        35   'depthwise_conv2d_5'         Grouped Convolution      256 groups of 1 3×3×1 convolutions with stride [2  2] and padding 'same'
        36   'L61'                        Batch Normalization      Batch normalization with 256 channels
        37   'activation_11'              ReLU                     ReLU
        38   'conv2d_6'                   Convolution              512 1×1×256 convolutions with stride [1  1] and padding 'same'
        39   'L62'                        Batch Normalization      Batch normalization with 512 channels
        40   'activation_12'              ReLU                     ReLU
        41   'depthwise_conv2d_6'         Grouped Convolution      512 groups of 1 3×3×1 convolutions with stride [1  1] and padding 'same'
        42   'L71'                        Batch Normalization      Batch normalization with 512 channels
        43   'activation_13'              ReLU                     ReLU
        44   'conv2d_7'                   Convolution              512 1×1×512 convolutions with stride [1  1] and padding 'same'
        45   'L72'                        Batch Normalization      Batch normalization with 512 channels
        46   'activation_14'              ReLU                     ReLU
        47   'depthwise_conv2d_7'         Grouped Convolution      512 groups of 1 3×3×1 convolutions with stride [1  1] and padding 'same'
        48   'L81'                        Batch Normalization      Batch normalization with 512 channels
        49   'activation_15'              ReLU                     ReLU
        50   'conv2d_8'                   Convolution              512 1×1×512 convolutions with stride [1  1] and padding 'same'
        51   'L82'                        Batch Normalization      Batch normalization with 512 channels
        52   'activation_16'              ReLU                     ReLU
        53   'depthwise_conv2d_8'         Grouped Convolution      512 groups of 1 3×3×1 convolutions with stride [1  1] and padding 'same'
        54   'L91'                        Batch Normalization      Batch normalization with 512 channels
        55   'activation_17'              ReLU                     ReLU
        56   'conv2d_9'                   Convolution              512 1×1×512 convolutions with stride [1  1] and padding 'same'
        57   'L92'                        Batch Normalization      Batch normalization with 512 channels
        58   'activation_18'              ReLU                     ReLU
        59   'depthwise_conv2d_9'         Grouped Convolution      512 groups of 1 3×3×1 convolutions with stride [1  1] and padding 'same'
        60   'L101'                       Batch Normalization      Batch normalization with 512 channels
        61   'activation_19'              ReLU                     ReLU
        62   'conv2d_10'                  Convolution              512 1×1×512 convolutions with stride [1  1] and padding 'same'
        63   'L102'                       Batch Normalization      Batch normalization with 512 channels
        64   'activation_20'              ReLU                     ReLU
        65   'depthwise_conv2d_10'        Grouped Convolution      512 groups of 1 3×3×1 convolutions with stride [1  1] and padding 'same'
        66   'L111'                       Batch Normalization      Batch normalization with 512 channels
        67   'activation_21'              ReLU                     ReLU
        68   'conv2d_11'                  Convolution              512 1×1×512 convolutions with stride [1  1] and padding 'same'
        69   'L112'                       Batch Normalization      Batch normalization with 512 channels
        70   'activation_22'              ReLU                     ReLU
        71   'depthwise_conv2d_11'        Grouped Convolution      512 groups of 1 3×3×1 convolutions with stride [2  2] and padding 'same'
        72   'L121'                       Batch Normalization      Batch normalization with 512 channels
        73   'activation_23'              ReLU                     ReLU
        74   'conv2d_12'                  Convolution              1024 1×1×512 convolutions with stride [1  1] and padding 'same'
        75   'L122'                       Batch Normalization      Batch normalization with 1024 channels
        76   'activation_24'              ReLU                     ReLU
        77   'depthwise_conv2d_12'        Grouped Convolution      1024 groups of 1 3×3×1 convolutions with stride [1  1] and padding 'same'
        78   'L131'                       Batch Normalization      Batch normalization with 1024 channels
        79   'activation_25'              ReLU                     ReLU
        80   'conv2d_13'                  Convolution              1024 1×1×1024 convolutions with stride [1  1] and padding 'same'
        81   'L132'                       Batch Normalization      Batch normalization with 1024 channels
        82   'activation_26'              ReLU                     ReLU
        83   'global_average_pooling2d'   Global Average Pooling   Global average pooling
        84   'dense'                      Fully Connected          521 fully connected layer
        85   'softmax'                    Softmax                  softmax
        86   'Sound'                      Classification Output    crossentropyex with 'Speech' and 520 other classes


    To view the names of the classes learned by the network, you can view the Classes property of the classification output layer (the final layer). View the first 10 classes by specifying the first 10 elements.

    net.Layers(end).Classes(1:10)
    ans = 10×1 categorical
         Speech
         Child speech, kid speaking
         Conversation
         Narration, monologue
         Babbling
         Speech synthesizer
         Shout
         Bellow
         Whoop
         Yell



    Use analyzeNetwork (Deep Learning Toolbox) to visually explore the network.

    analyzeNetwork(net)


    YAMNet was released with a corresponding sound class ontology, which you can explore using the yamnetGraph object.

    ygraph = yamnetGraph;
    p = plot(ygraph);
    layout(p,'layered')

    The ontology graph plots all 521 possible sound classes. Plot a subgraph of the sounds related to respiratory sounds.

    allRespiratorySounds = dfsearch(ygraph,"Respiratory sounds");
    ygraphSpeech = subgraph(ygraph,allRespiratorySounds);
    plot(ygraphSpeech)

    Read in an audio signal.

    [audioIn,fs] = audioread('SpeechDFT-16-8-mono-5secs.wav');

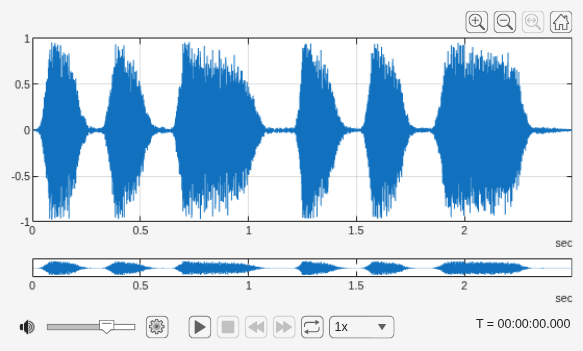

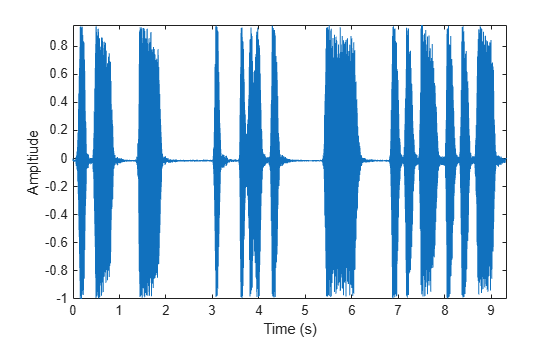

    Plot and listen to the audio signal.

    T = 1/fs;
    t = 0:T:(length(audioIn)*T) - T;
    plot(t,audioIn);
    grid on
    xlabel('Time (t)')
    ylabel('Ampltiude')

    soundsc(audioIn,fs)

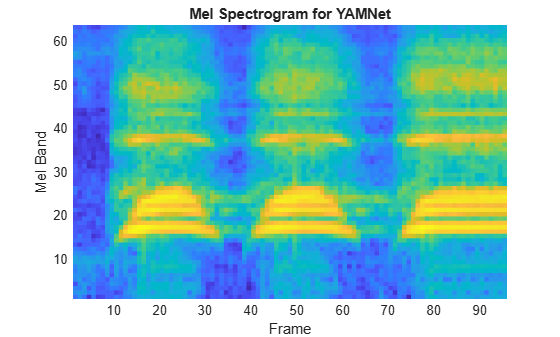

    Use yamnetPreprocess to extract mel spectrograms from the audio signal. Visualize an arbitrary spectrogram from the array.

    melSpectYam = yamnetPreprocess(audioIn,fs);

    arbSpect = melSpectYam(:,:,1,randi(size(melSpectYam,4)));
    surf(arbSpect,'EdgeColor','none')
    view([90,-90])
    axis([1 size(arbSpect,1) 1 size(arbSpect,2)])
    xlabel('Mel Band')
    ylabel('Frame')
    title('Mel Spectrogram for YAMNet')
    axis tight

    Create a YAMNet neural network (This requires Deep Learning Toolbox). Call classify with your YAMNet network and the preprocessed mel spectrogram images.

    net = yamnet;
    classes = classify(net,melSpectYam);

    Classify the audio signal as the most frequently occurring sound.

    mySound = mode(classes)
    mySound = categorical
         Speech



    Input Arguments

    collapse all

    Input signal, specified as a column vector or matrix. If you specify a matrix, yamnetPreprocess treats the columns of the matrix as individual audio channels.

    Data Types: single | double

    Sample rate of the input signal in Hz, specified as a positive scalar.

    Data Types: single | double

    Percentage overlap between consecutive mel spectrograms, specified as a scalar in the range [0,100).

    Data Types: single | double

    Output Arguments

    collapse all

    Mel spectrograms generated from audioIn, returned as a 96-by-64-by-1-by-K array, where:

    • 96 –– Represents the number of 25 ms frames in each mel spectrogram

    • 64 –– Represents the number of mel bands spanning 125 Hz to 7.5 kHz

    • K –– Represents the number of mel spectrograms and depends on the length of audioIn, the number of channels in audioIn, as well as OverlapPercentage

      Note

      Each 96-by-64-by-1 patch represents a single mel spectrogram image. For multichannel inputs, mel spectrograms are stacked along the fourth dimension.

    Data Types: single

    References

    [1] Gemmeke, Jort F., et al. “Audio Set: An Ontology and Human-Labeled Dataset for Audio Events.” 2017 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), IEEE, 2017, pp. 776–80. DOI.org (Crossref), doi:10.1109/ICASSP.2017.7952261.

    [2] Hershey, Shawn, et al. “CNN Architectures for Large-Scale Audio Classification.” 2017 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), IEEE, 2017, pp. 131–35. DOI.org (Crossref), doi:10.1109/ICASSP.2017.7952132.

    Extended Capabilities

    C/C++ Code Generation
    Generate C and C++ code using MATLAB® Coder™.

    Version History

    Introduced in R2021a
