Bit Error Rate Analysis
Analyze BER performance of communications systems
Description
The Bit Error Rate Analysis app calculates the bit error rate (BER) as a function of the energy per bit to noise power spectral density ratio (Eb/N0). Using this app, you can:
Generate BER data for a communications system and analyze performance using:
Monte Carlo simulations of MATLAB® functions and Simulink® models.
Theoretical closed-form expressions for selected types of communications systems.
Run systems contained in MATLAB simulation functions or Simulink models. After you create a function or model that simulates the system, the Bit Error Rate Analysis app iterates over your choice of Eb/N0 values and collects the results.
Plot one or more BER data sets on a single set of axes. You can graphically compare simulation data with theoretical results or simulation data from a series of communications system models.
Fit a curve to a set of simulation data.
Plot confidence levels of simulation data.
Send BER data to the MATLAB workspace or to a file for further processing.
For more information, see Analyze Performance with Bit Error Rate Analysis App.
Open the Bit Error Rate Analysis App
MATLAB Toolstrip: On the Apps tab, under Signal Processing and Communications, click the app icon.
MATLAB command prompt: Enter
bertool
.
Examples
Compute BER Using Theoretical Tab
Generate a theoretical estimate of BER performance for a 16-QAM link in AWGN.
Open the Bit Error Rate Analysis app.
bertool
On the Theoretical tab, set these parameters to the specified values:
Eb/N0
range to 0:10
, Modulation
type to QAM
, and Modulation
order to 16
.
Plot the BER curve by clicking Plot.
Compute BER Using Monte Carlo Tab and MATLAB Function Simulation
Simulate the BER by using a custom MATLAB function. By default, the app uses the
viterbisim.m
simulation.
Open the Bit Error Rate Analysis app.
bertool
On the Monte Carlo tab, set the Eb/N0
range parameter to 1:.5:6
. Run the
simulation and plot the estimated BER values by clicking
Run.
On the Theoretical tab, set Eb/N0
range to 1:6
and set Modulation
order to 4
. Enable convolutional
coding by selecting Convolutional. Click
Plot to add the theoretical upper bound of the BER
curve to the plot.
Prepare MATLAB Function for Use in Bit Error Rate Analysis App
Add code to the simulation function template given in the Template for Simulation Function topic to run in the Monte Carlo tab of the Bit Error Rate Analysis.
Prepare Function
Copy the template from the Template for Simulation Function topic into a new MATLAB file in the MATLAB Editor. Save the file in a folder on your MATLAB path, using the file name
bertool_simfcn
.
Place lines of code that initialize parameters or create objects used in
the simulation in the template section marked Set up initial
parameters
. This code maps simulation variables to the
template input arguments. For example, snr
maps to
EbNo
.
% Set up initial parameters. siglen = 1000; % Number of bits in each trial M = 2; % DBPSK is binary snr = EbNo; % Because of binary modulation % Create an ErrorRate calculator System object to compare % decoded symbols to the original transmitted symbols. errorCalc = comm.ErrorRate;
Place the code for the core simulation tasks in the template section
marked Proceed with simulation
. This code includes the
core simulation tasks, after all setup work has been performed.
msg = randi([0,M-1],siglen,1); % Generate message sequence txsig = dpskmod(msg,M); % Modulate hChan.SignalPower = ... % Calculate and assign signal power (txsig'*txsig)/length(txsig); rxsig = awgn(txsig,snr,'measured'); % Add noise decodmsg = dpskdemod(rxsig,M); % Demodulate berVec = errorCalc(msg,decodmsg); % Calculate BER totErr = totErr + berVec(2); numBits = numBits + berVec(3);
After you insert these two code sections into the template, the
bertool_simfcn
function is compatible with the
Bit Error Rate Analysis app. The resulting code resembles
this code segment.
function [ber,numBits] = bertool_simfcn(EbNo,maxNumErrs,maxNumBits,varargin) % % See also BERTOOL and VITERBISIM. % Copyright 2020 The MathWorks, Inc. % Initialize variables related to exit criteria. totErr = 0; % Number of errors observed numBits = 0; % Number of bits processed % --- Set up the simulation parameters. --- % --- INSERT YOUR CODE HERE. % Set up initial parameters. siglen = 1000; % Number of bits in each trial M = 2; % DBPSK is binary. snr = EbNo; % Because of binary modulation % Create an ErrorRate calculator System object to compare % decoded symbols to the original transmitted symbols. errorCalc = comm.ErrorRate; % Simulate until the number of errors exceeds maxNumErrs % or the number of bits processed exceeds maxNumBits. while((totErr < maxNumErrs) && (numBits < maxNumBits)) % Check if the user clicked the Stop button of BERTool. if isBERToolSimulationStopped(varargin{:}) break end % --- Proceed with the simulation. % --- Update totErr and numBits. % --- INSERT YOUR CODE HERE. msg = randi([0,M-1],siglen,1); % Generate message sequence txsig = dpskmod(msg,M); % Modulate hChan.SignalPower = ... % Calculate and assign signal power (txsig'*txsig)/length(txsig); rxsig = awgn(txsig,snr,'measured'); % Add noise decodmsg = dpskdemod(rxsig,M); % Demodulate berVec = errorCalc(msg,decodmsg); % Calculate BER totErr = totErr + berVec(2); numBits = numBits + berVec(3); end % End of loop % Compute the BER. ber = totErr/numBits;
The function has inputs to specify the app and scalar quantities for
EbNo
, maxNumErrs
, and
maxNumBits
that are provided by the app. The Bit
Error Rate Analysis app is an input because the function monitors
and responds to the stop command in the app. The
bertool_simfcn
function excludes code related to
plotting, curve fitting, and confidence intervals because the Bit Error
Rate Analysis app enables you to do similar tasks interactively
without writing code.
Use Prepared Function
Run bertool_simfcn
in the Bit Error Rate
Analysis app.
Open the Bit Error Rate Analysis app, and then select the Monte Carlo tab.
Set these parameters to the specified values:
Eb/N0
range to 0:10
, Simulation
environment to MATLAB
, Function
name to bertool_simfcn
, Number
of errors to 5
, and Number of
bits to 1e8
.
Click Run.
The Bit Error Rate Analysis app computes the results and then
plots them. In this case, the results do not appear to fall along a smooth
curve because the simulation required only five errors for each value in
EbNo
.
Fit a curve to the series of points in the BER Figure window, by selecting the Fit parameter in the data viewer.
The Bit Error Rate Analysis app plots the fitted curve, as shown in this figure.
Compute Error Rate Simulation Sweeps Using Bit Error Rate Analysis App
Use the Bit Error Rate Analysis app to compute the BER as a function of . The app analyzes performance with either Monte Carlo simulations of MATLAB® functions and Simulink® models or theoretical closed-form expressions for selected types of communications systems. The code in the mpsksim.m function provides an M-PSK simulation that you can run from the Monte Carlo tab of the app.
Open the Bit Error Rate Analysis app from the Apps tab or by running the bertool
function in the MATLAB command window.
On the Monte Carlo tab, set the range parameter to 1:1:5
and the Function name parameter to mpsksim
.
Open the mpsksim
function for editing, set M=2
, and save the changed file.
Run the mpsksim.m
function as configured by clicking Run on the Monte Carlo tab in the app.
After the app simulates the set of points, update the name of the BER data set results by selecting simulation0
in the BER Data Set field and typing M=2
to rename the set of results. The legend on the BER figure updates the label to M=2
.
Update the value for M
in the mpsksim
function, repeating this process for M
= 4
, 8
, and 16
. For example, these figures of the Bit Error Rate Analysis app and BER Figure window show results for varying M
values.
Parallel SNR Sweep Using Bit Error Rate Analysis App
The default configuration for the Monte Carlo processing of the Bit Error Rate Analysis app automatically uses parallel pool processing to process individual points when you have the Parallel Computing Toolbox™ software but for the processing of your simulation code:
Copyright 2020 The MathWorks, Inc.
Prepare Simulink Model for Use with Bit Error Rate Analysis App
This example shows you how to use a Simulink® model to run in the Monte Carlo tab of the Bit Error Rate Analysis app and compare the BER performance of the Simulink® simulation results with theoretical BER results.
Prepare Model and App
Open the example to load the doc_bpsk
model into a working folder on your computer.

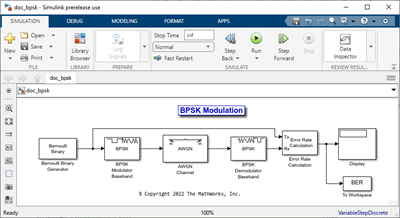

Open the doc_bpsk
model from the working directory it was downloaded to and the Bit Error Rate Analysis app from the apps gallery. Parameters that control the range, load the model, save the results, and set the stopping criteria for each BER iteration must align in the Bit Error Rate Analysis app and in the Simulink® model.
On the Monte Carlo tab in the app,
The range parameter maps to the variable name
EbNo
.The Number of errors parameter maps to the variable name
maxNumErrs
.The Number of bits parameter maps to the variable name
maxNumBits
.Select Simulink for the Simulation environment. For Model name enter
doc_bspk
and for BER variable name enterBER
.
In the model, the PreloadFcn
callback function initializes variables for EbNo
, maxNumErrs
, and maxNumBits
that set block parameters in the model. For more information on the PreloadFcn
callback function, see Model Callbacks (Simulink). To ensure the app will control the model, in the model confirm that the:
AWGN Channel block has Es/No (dB) set to
EbNo
. For BPSK modulation, is equivalent to .Error Rate Calculation block has Target number of errors set to
maxNumErrs
, and Maximum number of symbols set tomaxNumBits
.To Workspace block has Variable name set to
BER
.In the model Simulation, set Stop Time to
Inf
.
Use Prepared Model

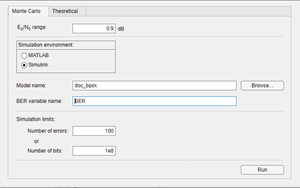

In the Monte Carlo tab of the Bit Error Rate Analysis app, set:
range to
0:9
Number of errors to
100
Number of bits to
1e8

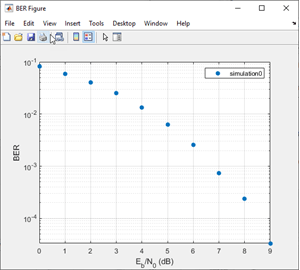

Click Run. The Bit Error Rate Analysis app computes the results and then plots them.

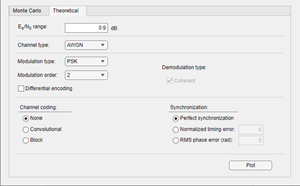

Compare these simulation results with the theoretical results, by clicking the Theoretical tab in the app and setting Eb/N0 range to 0:9
.
Click Plot.

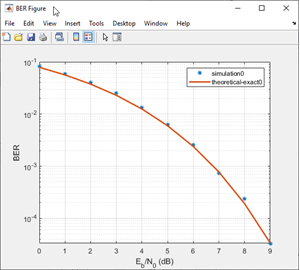

The app plots the theoretical curve in the BER Figure window along with the earlier simulation results.
Parameters
Eb/N0 range
— Range of Eb/N0
values
0:18
(default) | scalar | vector
Range of Eb/N0 values over which the BER is evaluated, specified as a scalar or vector. Units are in dB.
Example: 5:10
specifies the evaluation of
Eb/N0
values over the range [5, 10] at 1 dB increments.
Channel type
— Type of channel over which BER is evaluated
AWGN
(default) | Rayleigh
| Rician
Type of channel over which the BER is evaluated, specified as
AWGN
, Rayleigh
, or
Rician
. The
Rayleigh
and
Rician
options correspond to flat fading
channels.
Modulation type
— Modulation type of communications link
PSK
(default) | DPSK
| OQPSK
| PAM
| QAM
| FSK
| MSK
| CPFSK
Modulation type of the communications link, specified as
PSK
, DPSK
,
OQPSK
, PAM
,
QAM
, FSK
,
MSK
, or
CPFSK
.
Modulation order
— Modulation order of communications link
2
(default) | 4
| 8
| 16
| 32
| 64
Modulation order of the communications link, specified as
2
, 4
,
8
, 16
,
32
, or 64
.
Differential encoding
— Differential encoding of input data
off
(default) | on
Select this parameter to enable differential encoding of the input data.
Correlation coefficient
— Correlation coefficient
0
(default) | real scalar in the range [-1, 1]
Correlation coefficient, specified as a real scalar in the range [-1, 1].
Dependencies
To enable this parameter, set Modulation type to
FSK
.
Modulation index
— Modulation index
0.5
(default) | positive real scalar
Modulation index, specified as a positive real scalar.
Dependencies
To enable this parameter, set Modulation type to
CPFSK
.
Demodulation type
— Coherent demodulation of input data
on
(default) | off
Select this parameter to enable coherent demodulation of the input data.
Clear this parameter to enable noncoherent demodulation of the input data.
Dependencies
To enable this parameter, set Modulation type to
FSK
or
MSK
.
Channel coding
— Channel coding type used when estimating theoretical BER
None (default) | Convolutional | Block
Channel coding type used when estimating the theoretical BER, specified as None, Convolutional, or Block.
Synchronization
— Synchronization error
Perfect synchronization (default) | Normalized timing error | RMS phase noise level
Synchronization error in the demodulation process, specified as Perfect synchronization, Normalized timing error, or RMS phase noise (rad).
When you set Synchronization to Perfect synchronization no synchronization errors are encountered in the demodulation process.
When you set Synchronization to Normalized timing error, you can set the normalized timing error as a scalar in the range [0, 0.5].
When you set Synchronization to RMS phase noise (rad), you can set the RMS phase noise level as a nonnegative scalar. Units are in radians
Dependencies
To enable this parameter, set Modulation type to
PSK
, Modulation
order to 2
, and
Channel coding to
None.
Decision method
— Decoding decision method
Hard
(default) | Soft
Decoding decision method used to decode the received data, specified as
Hard
or
Soft
.
Dependencies
To enable this parameter, set Channel coding to
Convolutional or set Channel
coding to Block and set
Coding type to
General
.
Trellis
— Convolutional code trellis
poly2trellis(7,[171 133])
(default) | structure
Convolutional code trellis, specified as a structure variable. You can
generate this structure by using the poly2trellis
function.
Dependencies
To enable this parameter, set Channel coding to Convolutional.
Coding type
— Block coding type
General
(default) | Hamming
| Golay
| Reed-Solomon
Block coding type used in the BER evaluation, specified as
General
, Hamming
,
Golay
, or
Reed-Solomon
.
Dependencies
To enable this parameter, set Channel coding to Block.
N
— Codeword length
positive integer
Codeword length, specified as a positive integer.
Dependencies
To enable this parameter, set Channel coding to
Block and set Coding type
to General
.
K
— Message length
positive integer
Message length, specified as a positive integer such that K is less than N.
Dependencies
To enable this parameter, set Channel coding to
Block and set Coding type
to General
.
dmin
— Minimum distance of (N,K) block code
positive integer
Minimum distance of the (N,K) block code, specified as a positive integer.
Dependencies
To enable this parameter, set Channel coding to
Block and set Coding type
to General
.
Eb/N0 range
— Range of Eb/N0
values
1:0.5:5
(default) | scalar | vector
Range of Eb/N0 values over which the BER is evaluated, specified as a scalar or vector. Units are in dB.
Example: 4:2:10
specifies evaluation of
Eb/N0
over the range [4, 10] at 2 dB increments.
Simulation environment
— Simulation environment
MATLAB (default) | Simulink
Simulation environment, specified as MATLAB or Simulink.
Function name
— Name of MATLAB function
viterbisim
(default)
Name of the MATLAB function for the app to run for the Monte Carlo simulation.
Dependencies
To enable this parameter, set Simulation environment to MATLAB.
Model name
— Name of Simulink model
commgraycode
(default)
Name of the Simulink model for the app to run for the Monte Carlo simulation.
Dependencies
To enable this parameter, set Simulation environment to Simulink.
BER variable name
— Name of variable containing BER simulation data
grayBER
(default)
Name of the variable containing the BER simulation data. To output the BER simulation data to the MATLAB workspace, you can assign this variable name as the Variable name parameter value in a To Workspace block.
Tip
Select the To Workspace block from the DSP System Toolbox™ / Sinks sublibrary. For more information, see To Workspace Block Configuration for Communications System Simulations.
Dependencies
To enable this parameter, set the Simulation environment to Simulink.
Number of errors
— Number of errors to be measured before simulation stops
100
(default) | positive integer
Number of errors to be measured before the simulation stops, specified as a positive integer. Typically, to produce an accurate BER estimate,100 measured errors are enough.
Number of bits
— Number of bits to be processed before simulation stops
1e8
(default) | positive integer
Number of bits to be processed before the simulation stops, specified as a positive integer. This parameter is used to prevent the simulation from running too long.
Note
The Monte Carlo simulation stops when either the number of errors or number of bits threshold is reached.
Tips
You can stop the simulation by clicking Stop on the Monte Carlo Simulation dialog box.
Version History
Introduced before R2006aR2020b: Semianalytic tab in the Bit Error Rate Analysis has been removed
The Semianalytic tab and functionality in the Bit Error
Rate Analysis app has been removed. To generate semianalytic BER results,
you can still use the semianalytic
function.
For example, this code shows you how to use the semianalytic
function to programmatically generate semianalytic BER results for a BPSK-modulated
signal.
data = [0 1 1 0 0 1 1 1 1 0 1 1 0 0 0 0].'; bpskmod = comm.BPSKModulator txSig = rectpulse(bpskmod(data),16); rxSig = rectpulse(bpskmod(data),16); % Before receive filter modType = ‘psk’; modOrder = 2; sps = 16; % samples per symbol num = ones(16,1) / 16; % Filter numerator den = 1 % Filter denominator EbNo = 0:18; % dB BER = semianalytic(txSig,rxSig,modType,modOrder,sps,num,den,EbNo); semilogy(EbNo,BER)
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
