Compensate for carrier frequency offset for PAM, PSK, or QAM
Synchronization
The Coarse Frequency Compensator block compensates for a carrier frequency offset for BPSK, QPSK, OQPSK, 8PSK, PAM, and QAM modulation schemes. The block accepts a single input signal. To obtain an estimate of the frequency offset in Hz, select the Estimated frequency offset output port check box. The block accepts a sample or framebased complex input signal and returns a complex output signal and a real frequency offset estimate. The output signal has the same dimensions as the input signal. The frequency offset estimate is a scalar.
Specify the modulation type as BPSK
,
QPSK
, OQPSK
,
8PSK
, PAM
, or
QAM
.
The default setting is QAM
.
Specify the frequency offset estimation algorithm as
FFTbased
or
Correlationbased
. This parameter appears
when Modulation type of input signal is
BPSK
, QPSK
,
8PSK
, or
PAM
.
The table shows the allowable combinations of the modulation type and the estimation algorithm.
Modulation  FFTBased Algorithm  CorrelationBased Algorithm

BPSK , QPSK ,
8PSK , PAM  ✓  ✓
OQPSK , QAM  ✓
Specify the frequency resolution in Hz as a positive real scalar. This
option is available when the FFTbased
algorithm
is used. The default setting is 0.001
Hz.
Specify the number of samples per symbol as a positive integer scalar greater than or equal to 4. The default setting is 4.
Specify the maximum frequency offset in Hz as a positive real scalar. This
option is appears when you set Estimation algorithm to
Correlationbased
. The default setting is
0.05
Hz.
Select this check box to provide the estimated frequency offset to an output port. The default for this parameter is selected.
Select the simulation mode.
Code generation
On the first model run, simulate and generate code for the block using only MATLAB^{®} functions supported for code generation. If the structure of the block does not change, subsequent model runs do not regenerate the code.
If the simulation mode is Code
generation
, System objects accept a maximum of
nine inputs.
Interpreted execution
Simulate your model using all supported MATLAB functions. Choosing this option can slow simulation performance.
The default setting is Code generation
.

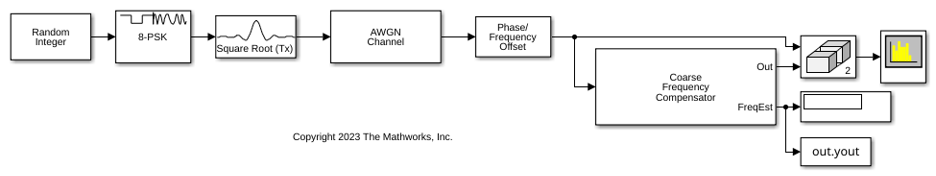

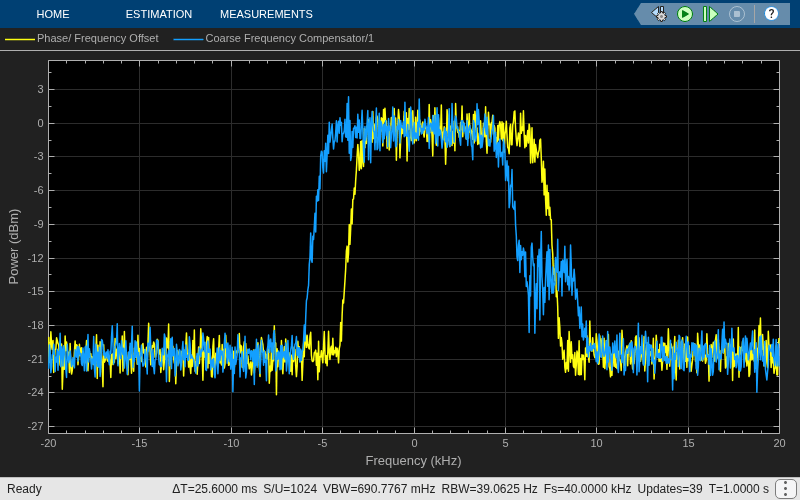

This block implements the algorithm, inputs, and outputs described on the comm.CoarseFrequencyCompensator
reference page. The object properties
correspond to the block parameters.
Port  Supported Data Types

Signal Input

Signal Output

Frequency Estimate

[1] Luise, M. and R. Regiannini. “Carrier recovery in alldigital modems for burstmode transmissions.” IEEE^{®} Transactions on Communications.Vol. 43, No. 2, 3, 4, Feb/Mar/April, 1995, pp. 1169–1178.
[2] Wang, Y., K. Shi, and E. Serpedi. “NonDataAided Feedforward Carrier Frequency Offset Estimators for QAM Constellations: A Nonlinear LeastSquares Approach.” EURASIP Journal on Applied Signal Processing. 2004:13, pp. 1993–2001.
[3] Nakagawa, T., M. Matsui, T. Kobayashi, K. Ishihara, R. Kudo, M. Mizoguchi, and Y. Miyamoto. “NonDataAided WideRange Frequency Offset Estimator for QAM Optical Coherent Receivers.” Optical Fiber Communication Conference and Exposition (OFC/NFOEC), 2011 and the National Fiber Optic Engineers Conference. March 2011, pp. 1–3.
