visualize

Visualize spectrum mask of phase noise

collapse all in page

Syntax

visualize(phznoise)

Description

visualize(phznoise) displays the power spectral density (PSD) of the phase noise added to the input signal by the comm.PhaseNoise System object™. The function shows the specified PSD and the realized PSD in the figure window.

Note

Code generation is not supported for this visualize object function.

example

Examples

collapse all

Open Live Script

Create a phase noise object and display the spectral mask.

pnoise = comm.PhaseNoise( ...
    Level=[-40 -70], ...
    FrequencyOffset=[100 200], ...
    SampleRate=1000);
visualize(pnoise)

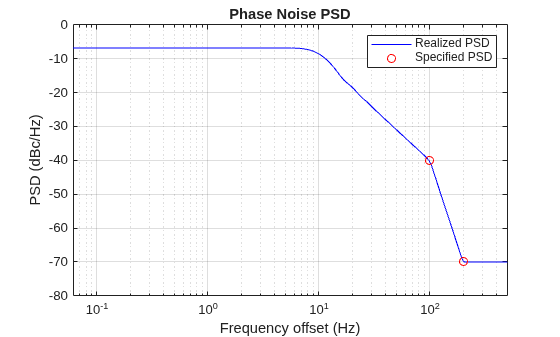

Figure Phase Noise PSD contains an axes object. The axes object with title Phase Noise PSD, xlabel Frequency offset (Hz), ylabel PSD (dBc/Hz) contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Realized PSD, Specified PSD.

Input Arguments

collapse all

Phase noise, specified as a comm.PhaseNoise System object.

Limitations

  • Code generation is not supported for this visulaize object function.

Version History

Introduced in R2012a
