Rectangular QAM Demodulator Baseband

Demodulate rectangular-QAM-modulated data

  • Rectangular QAM Demodulator Baseband block

Libraries:
Communications Toolbox / Modulation / Digital Baseband Modulation / AM
Communications Toolbox HDL Support / Modulation / AM

Description

The Rectangular QAM Demodulator Baseband block demodulates a signal that was modulated using M-ary quadrature amplitude modulation with a constellation on a rectangular lattice.

Note

All values of power assume a nominal impedance of 1 ohm.

Examples

expand all

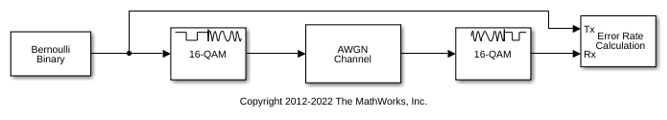

Modulate and demodulate a noisy QAM signal.

Use the Open model button to open the QAM demodulation model.

Run the simulation. The results are saved to the base workspace, where the variable ErrorVec is a 1-by-3 row vector. The BER is found in the first element.

Display the error statistics. For the Eb/No provided, 2 dB, the resultant BER is approximately 0.1. Your results may vary slightly.

ans =

    0.0947

Increase the Eb/No to 4 dB. Rerun the simulation, and observe that the BER has decreased.

ans =

    0.0139

Ports

Input

expand all

QAM-modulated signal, specified as a scalar or column vector. This port is unnamed until the Var port is enabled.

Data Types: double | single | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point
Complex Number Support: Yes

Noise variance, specified as a positive scalar or vector of positive values. When the noise variance or signal power result in computations involving extreme positive or negative magnitudes, see Soft Demodulation for demodulation decision type considerations.

Dependencies

To enable this parameter, set the Noise variance source parameter to Port.

Data Types: double

Output

expand all

Demodulated signal, returned as a scalar, or vector. The dimensions of the demodulated signal depend on the specified Output type and Decision type. This port is unnamed on the block.

Parameters

expand all

To edit block parameters interactively, use the Property Inspector. From the Simulink® Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

Main

Modulation order, specified as a positive integer power of two. The modulation order, M, specifies the number of points in the signal constellation. M must have the form 2K for some positive integer K. The block scales the signal constellation based on how you set the Normalization method parameter. For more information, see Constellation Size and Scaling.

Determines whether the block produces integers or binary representations of integers.

  • When you set Output type to Integer, the block produces integers in the range [0, (M – 1)] for each symbol. M is M-ary number.

  • When you set Output type to Bit and Decision type to Hard decision, the block produces a group of K bits, called a binary word, for each symbol. K=log2(M).

  • When you set Output type to Bit and Decision type to Log-likelihood ratio or Approximate log-likelihood ratio, the block outputs bitwise LLR or approximate LLR, respectively.

Demodulation decision type, specified as Hard decision, Log-likelihood ratio, or Approximate log-likelihood ratio. For algorithm selection considerations, see Hard- vs. Soft-Decision Demodulation.

Dependencies

This parameter appears when you set Output type to Bit.

Noise variance source, specified as Dialog or Port.

  • When you select Dialog, you must use the Noise variance parameter to set the noise variance.

  • When you select Port, you must use the Var port to set the noise variance.

Dependencies

This parameter appears when you set Decision type to Approximate log-likelihood ratio or Log-likelihood ratio.

Noise variance, specified as a positive scalar or vector of positive values.

  • When you specify this parameters as a scalar, that value is used on all elements in the input signal.

  • When you specify this parameters as a vector, the vector length must be equal to the number of columns in the input signal. Each noise variance vector element is applied to its corresponding column in the input signal.

This parameter is tunable in normal mode, Accelerator mode and Rapid Accelerator mode.

If you use the Simulink Coder™ rapid simulation (RSIM) target to build an RSIM executable, then you can tune the parameter without recompiling the model. This is useful for Monte Carlo simulations in which you run the simulation multiple times (perhaps on multiple computers) with different amounts of noise.

The exact LLR algorithm computes exponentials using finite precision arithmetic. For computations involving very large positive or negative magnitudes, the exact LLR algorithm yields:

  • Inf or -Inf if the noise variance is a very large value

  • NaN if the noise variance and signal power are both very small values

The approximate LLR algorithm does not compute exponentials. You can avoid Inf, -Inf, and NaN results by using the approximate LLR algorithm.

Dependencies

To enable this parameter, set the Decision type parameter to either Log-likelihood ratio or Approximate log-likelihood ratio and set the Noise variance source parameter to Dialog.

Mapping order of the symbols, specified as Gray, Binary, or User-defined. This parameter determines how the block maps each symbol to a group of output bits or integer.

Constellation mapping that you define, specified as an M-element containing unique integer values in the range [0, (M – 1)].

The first element of this vector corresponds to the top-leftmost point of the constellation, with subsequent elements running down column-wise, from left to right. The last element corresponds to the bottom-rightmost point.

Dependencies

This parameter appears when you set Constellation ordering to User-defined.

Scaling method for the constellation, specified as Min. distance between symbols, Average Power, or Peak Power. For more information, see Constellation Size and Scaling

Distance between the two nearest constellation points, specified as a positive scalar.

Dependencies

This parameter appears when you set Normalization method to Min. distance between symbols.

Average power of the symbols in the constellation in watts, specified as a positive scalar. Power values assume a nominal impedance of 1 ohm.

Dependencies

This parameter appears when you set Normalization method to Average Power.

Maximum power of the symbols in the constellation in watts, specified as a positive scalar. Power values assume a nominal impedance of 1 ohm.

Dependencies

This parameter appears when you set Normalization method to Peak Power.

Rotation of the signal constellation in radians, specified as a numeric scalar.

Data Types

Output data type, specified as Inherit via internal rule, Smallest unsigned integer, double, single, int8, uint8, int16, uint16, int32, uint32, or boolean.

  • When you select Inherit via internal rule, the block inherits the data type based on an internal rule. For more information on this rule, see Inherit via Internal Rule. The output data type will be the same as the input data type if the input is of type single or double. Otherwise, the output data type will be as if this parameter is set to 'Smallest unsigned integer'.

  • When the parameter is set to 'Smallest unsigned integer', the block sets the output data type based on the settings used in the Hardware Implementation pane of the Configuration Parameters dialog box of the model. If ASIC/FPGA is selected in the Hardware Implementation pane, the output data type is the ideal minimum size, i.e., ufix(1) for bit outputs, and ufix(ceil(log2(M))) for integer outputs. For all other selections, it is an unsigned integer with the smallest available word length large enough to fit the ideal minimum size, usually corresponding to the size of a char (e.g., uint8).

  • For integer outputs, this parameter can be set to Smallest unsigned integer, int8, uint8, int16, uint16, int32, uint32, single, and double. For bit outputs, the options are Smallest unsigned integer, int8, uint8, int16, uint16, int32, uint32, boolean, single, or double.

Specify the derotate factor data type as Inherit: Same word length as input, fixdt(1,16), or <data type expression>.

For information about specifying data types, see Data Type Assistant.

Dependencies

This parameter applies only when the input is fixed-point and Phase offset (rad) is not a multiple of π/2.

Specify the denormalization factor data type as Inherit: Same word length as input, fixdt(1,16), or <data type expression>. This scaling factor is derived from Normalization method and other parameter values in the block dialog. A best-precision fraction length is always used.

For information about specifying data types, see Data Type Assistant.

Dependencies

This parameter applies only when the input is fixed-point and the derived denormalization factor is nonunity (not equal to 1).

Specify the product data type as Inherit: Inherit via internal rule, fixdt(1,16), or <data type expression>.

When you select Inherit: Inherit via internal rule, the block computes the full-precision product word length and fraction length. For information about the full-precision Product output internal rule, see Internal Rule for Product Data Types.

The block uses rounding mode when the result of a fixed-point calculation does not map exactly to a number representable by the data type and scaling storing the result. For more information, see Rounding Modes or Rounding Mode: Simplest (Fixed-Point Designer).

For information about specifying data types, see Data Type Assistant.

Dependencies

This parameter only applies when the input is a fixed-point signal and there is a nonunity (not equal to 1) denormalized factor.

Specify the rounding mode for Product output fixed-point operations as Wrap or Saturate. The block uses rounding mode when the result of a fixed-point calculation does not map exactly to a number representable by the data type. For more information, see Rounding Modes or Rounding Mode: Simplest (Fixed-Point Designer).

Dependencies

This parameter applies for Product output only.

Select this check box to saturate on integer overflow.

Dependencies

This parameter applies for Product output only.

Specify the sum data type as Inherit: Inherit via internal rule, Inherit: Same as product output, fixdt(1,16), or <data type expression>.

  • When you select Inherit: Inherit via internal rule, the block computes the full-precision sum word length and fraction length, based on the two inputs to the Sum in the fixed-point Hard Decision Algorithm signal flow diagram. The rule is the same as the fixed-point inherit rule of the internal Accumulator data type parameter in the Sum (Simulink) block.

  • When you select Inherit: Same as product output and Product output is used, the block configures the data type of the Sum parameter to be the same as the Product output data type. If the Product output is not used, then this setting will be ignored, and the Inherit: Inherit via internal rule and the Sum parameter setting is used.

For information about specifying data types, see Data Type Assistant.

Dependencies

This parameter applies only when the input is a fixed-point signal.

Block Characteristics

Data Types

Boolean | double | fixed pointa, b, c | integer | single

Multidimensional Signals

no

Variable-Size Signals

yes

a Square QAM only.

b Fixed-point inputs must be signed.

c When ASIC/FPGA is selected in the Hardware Implementation Pane, output is ufix(1) for bit outputs, and ufix(ceil(log2(M))) for integer outputs.

More About

expand all

Algorithms

expand all

For algorithm considerations, see Hard- vs. Soft-Decision Demodulation.

References

[1] Smith, J. G. "Odd-Bit Quadrature Amplitude-Shift Keying." IEEE® Transactions on Communications 23, no. 3 (March 1975): 385–89.
