minibatchqueue
Description
Use a minibatchqueue
object to create, preprocess, and manage
mini-batches of data for deep learning.
A minibatchqueue
object iterates over a datastore to provide data in a
suitable format for training or prediction. The object prepares a queue of mini-batches that
are preprocessed on demand. Use a minibatchqueue
object to automatically
convert your data to dlarray
or gpuArray
, convert data to a
different precision, or apply a custom function to preprocess your data. You can prepare your
data in parallel in the background.
You can manage your data in a custom training loop by using a
minibatchqueue
object. You can shuffle the data at the start of each
training epoch using the shuffle
function
and collect data from the queue for each training iteration using the next
function. You
can check if any data is left in the queue using the hasdata
function,
and reset
the queue
when it is empty.
Creation
Syntax
Description
creates a mbq
= minibatchqueue(ds
)minibatchqueue
object from the input datastore
ds
. The mini-batches in mbq
have the same number
of variables as the results of read
on the input datastore.
creates a mbq
= minibatchqueue(ds
,numOutputs
)minibatchqueue
object from the input datastore
ds
and sets the number of variables in each mini-batch. Use this
syntax when you use MiniBatchFcn
to specify a mini-batch
preprocessing function that has a different number of outputs than the number of variables
of the input datastore ds
.
sets one or more properties using name-value arguments. For example,
mbq
= minibatchqueue(___,Name=Value)minibatchqueue(ds,MiniBatchSize=64,PartialMiniBatch="discard")
sets
the size of the returned mini-batches to 64 and discards any mini-batches with fewer than
64 observations.
Input Arguments
ds
— Input datastore
datastore | custom datastore
Input datastore, specified as a MATLAB® datastore or a custom datastore.
For more information about datastores for deep learning, see Datastores for Deep Learning.
numOutputs
— Number of mini-batch variables
positive integer
Number of mini-batch variables, specified as a positive integer. By default, the number of mini-batch variables is equal to the number of variables of the input datastore.
You can determine the number of variables of the input datastore by examining the
output of read(ds)
. If your datastore returns a table, the number
of variables is the number of variables of the table. If your datastore returns a cell
array, the number of variables is the size of the second dimension of the cell array.
If you use the MiniBatchFcn
name-value argument to specify a
mini-batch preprocessing function that returns a different number of variables than
the input datastore, you must set numOutputs
to match the number of
outputs of the function.
Example: 2
Properties
MiniBatchSize
— Size of mini-batches
128
(default) | positive integer
This property is read-only.
Size of mini-batches returned by the next
function, specified as a positive integer. The default value is
128
.
Tip
For best performance, if the input datastore ds
has a
ReadSize
property, such as an imageDatastore
, then set the ReadSize
property of the
input datastore and the MiniBatchSize
property of the
minibatchqueue
object to the same value. If the input datastore
ds
has a MiniBatchSize
property, such as an
augmentedImageDatastore
, then set the MiniBatchSize
property of the input datastore and the MiniBatchSize
property of
the minibatchqueue
object to the same value.
Example: 256
PartialMiniBatch
— Return or discard incomplete mini-batches
"return"
(default) | "discard"
Return or discard incomplete mini-batches, specified as "return"
or "discard"
.
If the total number of observations is not exactly divisible by
MiniBatchSize
, the final mini-batch returned by the next
function
can have fewer than MiniBatchSize
observations. This property
specifies how any partial mini-batches are treated, using the following options:
"return"
— A mini-batch can contain fewer thanMiniBatchSize
observations. All data is returned."discard"
— All mini-batches must contain exactlyMiniBatchSize
observations. Some data can be discarded from the queue if there is not enough for a complete mini-batch.
Set PartialMiniBatch
to "discard"
if you
require that all of your mini-batches are the same size.
The minibatchqueue
object stores this property as a character vector.
Example: "discard"
Data Types: char
| string
MiniBatchFcn
— Mini-batch preprocessing function
"collate"
(default) | function handle
This property is read-only.
Mini-batch preprocessing function, specified as "collate"
or a
function handle.
The default value of MiniBatchFcn
is
"collate"
. This function concatenates the mini-batch variables into
arrays. If the mini-batch variables have N
dimensions, this function
concatenates the mini-batch variables along dimension N+1
.
Use a function handle to a custom function to preprocess mini-batches for custom training. Doing so is recommended for one-hot encoding classification labels, padding sequence data, calculating average images, and so on. You must specify a custom function if your data consists of cell arrays containing arrays of different sizes.
If you specify a custom mini-batch preprocessing function, the function must
concatenate each batch of output variables into an array after preprocessing and return
each variable as a separate function output. The function must accept at least as many
inputs as the number of variables of the underlying datastore. The inputs are passed to
the custom function as N-by-1 cell arrays, where N
is the number of observations in the mini-batch. The function can return as many
variables as required. If the function specified by MiniBatchFcn
returns a different number of outputs than inputs, specify numOutputs
as the number of outputs of the function.
The following actions are not recommended inside the custom function. To reproduce
the desired behavior, instead, set the corresponding property when you create the
minibatchqueue
object.
Action | Recommended Property |
---|---|
Cast variable to different data type. | OutputCast |
Move data to GPU. | OutputEnvironment |
Convert data to dlarray . | OutputAsDlarray |
Apply data format to dlarray variable. | MiniBatchFormat |
The minibatchqueue
object stores this property as a character vector or a
function handle.
Example: @myCustomFunction
Data Types: char
| string
| function_handle
PreprocessingEnvironment
— Environment for fetching and preprocessing mini-batches
"serial"
(default) | "background
| "parallel"
Since R2024a
Environment for fetching and preprocessing mini-batches, specified as one of these values:
"serial"
– Fetch and preprocess data in serial."background"
– Fetch and preprocess data using the background pool. The mini-batch preprocessing functionMiniBatchFcn
must support thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment."parallel"
– Fetch and preprocess data using parallel workers. The software opens a parallel pool using the default profile, if a local pool is not currently open. Non-local parallel pools are not supported. Using this option requires Parallel Computing Toolbox™.
To use the "background"
or "parallel"
options,
the input datastore must be subsettable or partitionable. Custom datastores must
implement the matlab.io.datastore.Subsettable
class.
If you use the "background"
or "parallel"
options, the order in which mini-batches are returned by the next
function varies, making training a network using the minibatchqueue
nondeterministic even if you use the deep.gpu.deterministicAlgorithms
function.
The preprocessing environment defines how the MiniBatchFcn
is
applied but does not affect further processing, including applying the effects of the
OutputCast
, OutputEnvironment
, OutputAsDlarray
, and MiniBatchFormat
.
Use the "background"
option when your mini-batches require
significant preprocessing. If your preprocessing is not supported on threads, or if you
need to control the number of workers, use the "parallel"
option. For
more information about the preprocessing environment, see Preprocess Data in the Background or in Parallel.
The minibatchqueue
object stores this property as a character vector.
Before R2024a: To preprocess mini-batches in parallel, set
the DispatchInBackground
property to 1
(true)
.
Data Types: char
| string
OutputCast
— Data type of each mini-batch variable
"single"
(default) | "double"
| "int8"
| "int16"
| "int32"
| "int64"
| "uint8"
| "uint16"
| "uint32"
| "uint64"
| "logical"
| "char"
| string array | cell array of character vectors
This property is read-only.
Data type of each mini-batch variable, specified as "single"
,
"double"
, "int8"
, "int16"
,
"int32"
, "int64"
, "uint8"
,
"uint16"
, "uint32"
, "uint64"
,
"logical"
, or "char"
, a string array of these
values, a cell array of character vectors of these values, or an empty vector.
If you specify OutputCast
as an empty vector, the data type of
each mini-batch variable is unchanged. To specify a different data type for each
mini-batch variable, specify a string array containing an entry for each mini-batch
variable. The order of the elements of this string array must match the order in which
the mini-batch variables are returned. This order is the same order in which the
variables are returned from the function specified by MiniBatchFcn
.
If you do not specify a custom function for MiniBatchFcn
, it is the
same order in which the variables are returned by the underlying datastore.
You must make sure that the value of OutputCast
does not
conflict with the values of the OutputAsDlarray
or OutputEnvironment
properties. If you specify OutputAsDlarray
as true
or 1
, check
that the data type specified by OutputCast
is supported by dlarray
. If you
specify OutputEnvironment
as "gpu"
or "auto"
and a supported GPU is available, check that the data type specified by
OutputCast
is supported by gpuArray
(Parallel Computing Toolbox).
The minibatchqueue
object stores this property as a cell array of character
vectors.
Example: ["single" "single" "logical"]
Data Types: char
| string
OutputAsDlarray
— Flag to convert mini-batch variable to dlarray
1
(true
) (default) | 0
(false
) | vector of logical values
This property is read-only.
Flag to convert mini-batch variable to dlarray
, specified as a
numeric or logical 1
(true
) or
0
(false
) or as a vector of numeric or logical
values.
To specify a different value for each output, specify a vector containing an entry
for each mini-batch variable. The order of the elements of this vector must match the
order in which the mini-batch variable are returned. This order is the same order in
which the variables are returned from the function specified by
MiniBatchFcn
. If you do not specify a custom function for
MiniBatchFcn
, it is the same order in which the variables are
returned by the underlying datastore.
Variables that are converted to dlarray
have the underlying data
type specified by the OutputCast
property.
Example: [1 1 0]
Data Types: logical
MiniBatchFormat
— Data format of mini-batch variables
""
(default) | string scalar | character vector | string array | cell array of character vectors
This property is read-only.
Data format of mini-batch variables, specified as a string scalar, character vector, string array, or a cell array of character vectors.
The mini-batch format is applied to dlarray
variables only.
Non-dlarray
mini-batch variables must have a
MiniBatchFormat
of ""
.
To avoid an error when you have a mix of dlarray
and
non-dlarray
variables, you must specify a value for each output by
providing a string array containing an entry for each mini-batch variable. The order of
the elements of this string array must match the order in which the mini-batch variables
are returned. This is the same order in which the variables are returned from the
function specified by MiniBatchFcn
. If you do not specify a custom
function for MiniBatchFcn
, it is the same order in which the
variables are returned by the underlying datastore.
If you specify more dimensions than are present in the data, they are added as
singleton dimensions. For example, to add a singleton channel dimension to the data, add
a trailing "C"
dimension.
A data format is a string of characters, where each character describes the type of the corresponding data dimension.
The characters are:
"S"
— Spatial"C"
— Channel"B"
— Batch"T"
— Time"U"
— Unspecified
For example, consider an array containing a batch of sequences where the first, second,
and third dimensions correspond to channels, observations, and time steps, respectively. You
can specify that this array has the format "CBT"
(channel, batch,
time).
You can specify multiple dimensions labeled "S"
or "U"
.
You can use the labels "C"
, "B"
, and
"T"
once each, at most. The software ignores singleton trailing
"U"
dimensions after the second dimension.
For more information, see Deep Learning Data Formats.
The minibatchqueue
object stores this property as a cell array of character
vectors.
Example: ["SSCB" ""]
Data Types: char
| string
OutputEnvironment
— Hardware resource for mini-batch variables
"auto"
(default) | "gpu"
| "cpu"
| string array | cell array of character vectors
Hardware resource for mini-batch variables returned using the next
function, specified as one of the following values:
"auto"
— Return mini-batch variables on the GPU if one is available. Otherwise, return mini-batch variables on the CPU."gpu"
— Return mini-batch variables on the GPU."cpu"
— Return mini-batch variables on the CPU.
To return only specific variables on the GPU, specify
OutputEnvironment
as a string array containing an entry for each
mini-batch variable. The order of the elements of this string array must match the order
the mini-batch variable are returned. This order is the same order as the variables are
returned from the function specified by MiniBatchFcn
. If you do not
specify a custom MiniBatchFcn
, it is the same order as the
variables are returned by the underlying datastore.
Using a GPU requires Parallel Computing Toolbox. To use a GPU for deep
learning, you must also have a supported GPU device. For information on supported devices, see
GPU Computing Requirements (Parallel Computing Toolbox). If you choose the "gpu"
option and Parallel Computing Toolbox or a suitable GPU is not available, then the software returns an
error.
The minibatchqueue
object stores this property as a cell array of character
vectors.
Example: ["gpu" "cpu"]
Data Types: char
| string
Object Functions
Examples
Prepare Mini-Batches for Training
Use a minibatchqueue
object to automatically prepare
mini-batches of images and classification labels for training using the trainnet
function or in a custom training loop.
Create a datastore. Calling read
on auimds
produces a table with two variables: input
, containing the image
data, and response
, containing the corresponding classification
labels.
auimds = augmentedImageDatastore([100 100],digitDatastore); A = read(auimds); head(A,2)
ans = input response _______________ ________ {100×100 uint8} 0 {100×100 uint8} 0
Create a minibatchqueue
object from auimds
. Set
the MiniBatchSize
property to 256
.
The minibatchqueue
object has two output variables: the images and
classification labels from the input
and response
variables of auimds
, respectively. Set the
minibatchqueue
object to return the images as a formatted
dlarray
on the GPU. The images are single-channel black-and-white
images. Add a singleton channel dimension by applying the format
"SSBC"
to the batch. Return the labels as a
non-dlarray
on the CPU.
mbq = minibatchqueue(auimds,... MiniBatchSize=256, ... OutputAsDlarray=[1 0], ... MiniBatchFormat=["SSBC" ""], ... OutputEnvironment=["gpu" "cpu"])
To obtain mini-batches from mbq
to use in a custom training loop,
use the next
function.
[X,Y] = next(mbq);
Create Mini-Batches Using Custom Preprocessing Function
Preprocess data using a minibatchqueue
with a custom mini-batch preprocessing function. The custom function rescales the incoming image data between 0 and 1 and calculates the average image.
Unzip the data and create a datastore.
unzip("MerchData.zip"); imds = imageDatastore("MerchData", ... IncludeSubfolders=true, ... LabelSource="foldernames");
Create a minibatchqueue.
Set the number of outputs to
2
, to match the number of outputs of the function.Set the mini-batch size.
Preprocesses the data using the custom function
preprocessMiniBatch
defined at the end of this example. The custom function concatenates the image data into a numeric array, rescales the image between 0 and 1, and calculates the average of the batch of images. The function returns the rescaled batch of images and the average image.Apply the preprocessing function in the background by setting the
PreprocessingEnvironment
property to"background"
. You can preprocess your data in the background if your preprocessing function is supported for a thread-based environment.Do not convert the mini-batch output variables to a
dlarray
.
mbq = minibatchqueue(imds,2,... MiniBatchSize=16,... MiniBatchFcn=@preprocessMiniBatch,... PreprocessingEnvironment="background",... OutputAsDlarray=false)
mbq = minibatchqueue with 2 outputs and properties: Mini-batch creation: MiniBatchSize: 16 PartialMiniBatch: 'return' MiniBatchFcn: @preprocessMiniBatch PreprocessingEnvironment: 'background' Outputs: OutputCast: {'single' 'single'} OutputAsDlarray: [0 0] MiniBatchFormat: {'' ''} OutputEnvironment: {'auto' 'auto'}

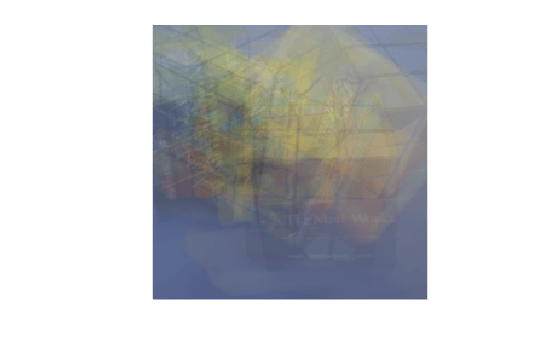

Obtain a mini-batch and display the average of the images in the mini-batch. A thread worker in the backgroundPool
applies the preprocessing function.
[X,averageImage] = next(mbq); imshow(averageImage)
function [X,averageImage] = preprocessMiniBatch(XCell) X = cat(4,XCell{:}); X = rescale(X,InputMin=0,InputMax=255); averageImage = mean(X,4); end
Use minibatchqueue
in Custom Training Loop
Train a network using minibatchqueue
to manage the processing of mini-batches.
Load Training Data
Load the digits training data and store the data in a datastore. Create a datastore for the images and one for the labels using arrayDatastore
. Then, combine the datastores to produce a single datastore to use with minibatchqueue
.
[XTrain,YTrain] = digitTrain4DArrayData; dsX = arrayDatastore(XTrain,IterationDimension=4); dsY = arrayDatastore(YTrain); dsTrain = combine(dsX,dsY);
Determine the number of unique classes in the label data.
classes = categories(YTrain); numClasses = numel(classes);
Define Network
Create a dlnetwork
object.
net = dlnetwork;
Specify the layers and the average image value using the Mean
option in the image input layer.
layers = [ imageInputLayer([28 28 1],Mean=mean(XTrain,4)) convolution2dLayer(5,20) reluLayer convolution2dLayer(3,20,Padding=1) reluLayer convolution2dLayer(3,20,Padding=1) reluLayer fullyConnectedLayer(numClasses) softmaxLayer];
Add the layers and initialize the network.
net = addLayers(net,layers); net = initialize(net);
Define Model Loss Function
Create the helper function modelLoss
, listed at the end of the example. The function takes as input a dlnetwork
object net
and a mini-batch of input data X
with corresponding labels Y
, and returns the loss and the gradients of the loss with respect to the learnable parameters in net
.
Specify Training Options
Specify the options to use during training.
numEpochs = 10; miniBatchSize = 128;
Visualize the training progress in a plot.
plots = "training-progress";
Create the minibatchqueue
Use minibatchqueue
to process and manage the mini-batches of images. For each mini-batch:
Discard partial mini-batches.
Use the custom mini-batch preprocessing function
preprocessMiniBatch
(defined at the end of this example) to one-hot encode the class labels.Format the image data with the dimension labels
'SSCB'
(spatial, spatial, channel, batch). By default, theminibatchqueue
object converts the data todlarray
objects with underlying data typesingle
. Do not add a format to the class labels.Train on a GPU if one is available. By default, the
minibatchqueue
object converts each output to agpuArray
if a GPU is available. Using a GPU requires Parallel Computing Toolbox™ and a supported GPU device. For information on supported devices, see GPU Computing Requirements (Parallel Computing Toolbox).
mbq = minibatchqueue(dsTrain,... MiniBatchSize=miniBatchSize,... PartialMiniBatch="discard",... MiniBatchFcn=@preprocessMiniBatch,... MiniBatchFormat=["SSCB",""]);
Train Network
Train the model using a custom training loop. For each epoch, shuffle the data and loop over mini-batches while data is still available in the minibatchqueue
. Update the network parameters using the adamupdate
function. At the end of each epoch, display the training progress.
Initialize the average gradients and squared average gradients.
averageGrad = []; averageSqGrad = [];
Calculate the total number of iterations for the training progress monitor.
numObservationsTrain = numel(YTrain); numIterationsPerEpoch = ceil(numObservationsTrain / miniBatchSize); numIterations = numEpochs * numIterationsPerEpoch;

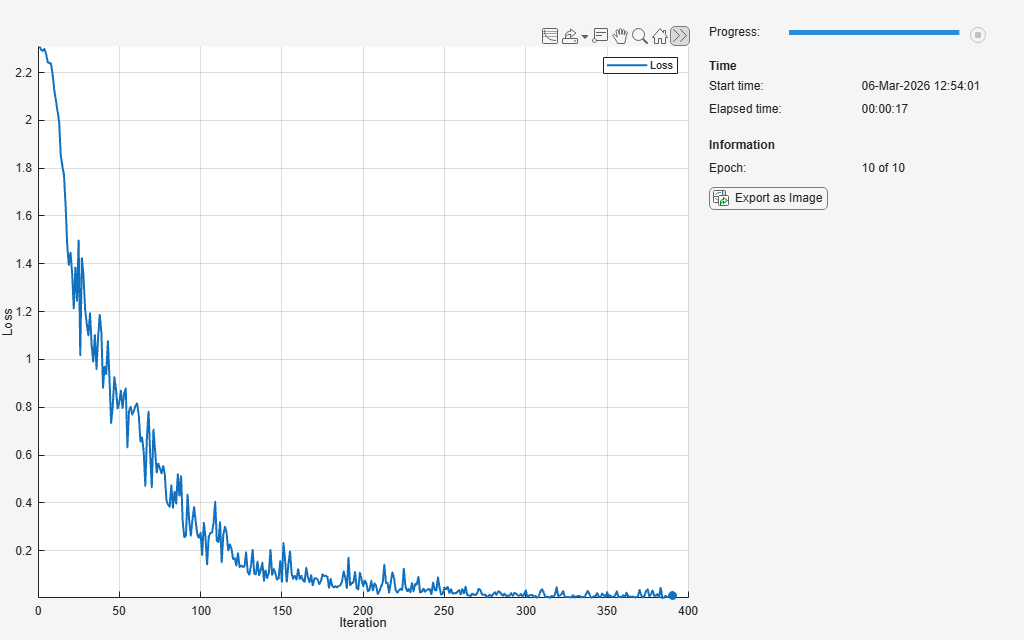

Initialize the TrainingProgressMonitor
object. Because the timer starts when you create the monitor object, make sure that you create the object close to the training loop.
if plots == "training-progress" monitor = trainingProgressMonitor(Metrics="Loss",Info="Epoch",XLabel="Iteration"); end
Train the network.
iteration = 0; epoch = 0; while epoch < numEpochs && ~monitor.Stop epoch = epoch + 1; % Shuffle data. shuffle (mbq); while hasdata(mbq) && ~monitor.Stop iteration = iteration + 1; % Read mini-batch of data. [X,Y] = next(mbq); % Evaluate the model loss and gradients using dlfeval and the % modelLoss helper function. [loss,grad] = dlfeval(@modelLoss,net,X,Y); % Update the network parameters using the Adam optimizer. [net,averageGrad,averageSqGrad] = adamupdate(net,grad,averageGrad,averageSqGrad,iteration); % Update the training progress monitor. if plots == "training-progress" recordMetrics(monitor,iteration,Loss=loss); updateInfo(monitor,Epoch=epoch + " of " + numEpochs); monitor.Progress = 100 * iteration/numIterations; end end end
Model Loss Function
The modelLoss
helper function takes as input a dlnetwork
object net
and a mini-batch of input data X
with corresponding labels Y
, and returns the loss and the gradients of the loss with respect to the learnable parameters in net
. To compute the gradients automatically, use the dlgradient
function.
function [loss,gradients] = modelLoss(net,X,Y) YPred = forward(net,X); loss = crossentropy(YPred,Y); gradients = dlgradient(loss,net.Learnables); end
Mini-Batch Preprocessing Function
The preprocessMiniBatch
function preprocesses the data using the following steps:
Extract the image data from the incoming cell array and concatenate the data into a numeric array. Concatenating the image data over the fourth dimension adds a third dimension to each image, to be used as a singleton channel dimension.
Extract the label data from the incoming cell array and concatenate along the second dimension into a categorical array.
One-hot encode the categorical labels into numeric arrays. Encoding into the first dimension produces an encoded array that matches the shape of the network output.
function [X,Y] = preprocessMiniBatch(XCell,YCell) % Extract image data from the cell array and concatenate over fourth % dimension to add a third singleton dimension, as the channel % dimension. X = cat(4,XCell{:}); % Extract label data from cell and concatenate. Y = cat(2,YCell{:}); % One-hot encode labels. Y = onehotencode(Y,1); end
Version History
Introduced in R2020bR2024a: Setting the DispatchInBackground
property is not recommended
Setting the DispatchInBackground
property is not recommended, set
the PreprocessingEnvironment
property instead.
The PreprocessingEnvironment
property provides the same
functionality and also allows you to use the backgroundPool
for
preprocessing when you set PreprocessingEnvironment
to
"background"
.
This table shows how to update your code:
Not recommended | Recommended |
---|---|
minibatchqueue(imds,DispatchInBackground=false)
(default) | minibatchqueue(imds,PreprocessingEnvironment="serial")
(default) |
minibatchqueue(imds,DispatchInBackground=true) | minibatchqueue(imds,PreprocessingEnvironment="parallel") |
There are no plans to remove the DispatchInBackground
property.
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
