# parkingLot

Add parking lot to driving scenario

Since R2021b

## Syntax

``parkingLot(scenario,vertices)``
``parkingLot(scenario,vertices,Name=Value)``
``lot = parkingLot(___)``

## Description

example

````parkingLot(scenario,vertices)` adds a parking lot to a driving scenario. The parking lot is in the shape of a polygon formed by the specified vertices.```

example

````parkingLot(scenario,vertices,Name=Value)` specifies additional options using name-value arguments. For example, to define the parking space used to populate one of the predefined parking lot layouts, use the `ParkingSpace` name-value argument.```

example

````lot = parkingLot(___)` returns a `ParkingLot` object, `lot`, that stores the properties of the created parking lot. To insert parking spaces into this parking lot, specify `lot` as an input argument of the `insertParkingSpaces` function. You can return `lot` using any of the previous syntaxes.```

## Examples

collapse all

Create a driving scenario containing a short road that enters into a parking lot that is 50 meters long and 20 meters wide. Plot the parking lot and display the edge numbers along which you can insert parking spaces. Because edge 3 forms a junction with the road, its edge number does not display on the plot, but you can still insert spaces along it.

```scenario = drivingScenario; roadcenters = [25 30; 25 15]; road(scenario,roadcenters); vertices = [0 0; 50 0; 50 20; 0 20]; lot = parkingLot(scenario,vertices); plot(scenario,ParkingLotEdges="On")```

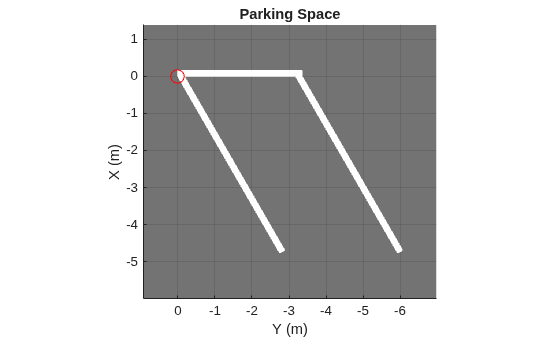

Define the parking space type to add along one of the edges. Set an angle of 60 degrees. Plot the parking space.

```space = parkingSpace(Angle=60); plot(space)```

Insert the angled spaces along edge 1 of the parking lot.

`insertParkingSpaces(lot,space,Edge=1)`

Insert angled spaces along edge 3: five above the junction and five below the junction. Offset these spaces by 3 meters and 30 meters from the bottom of edge 3, respectively. Reverse the angle of the spaces used along edge 1.

```numSpaces = 5; space = parkingSpace(Angle=120); insertParkingSpaces(lot,space,numSpaces,Edge=3,Offset=3) insertParkingSpaces(lot,space,numSpaces,Edge=3,Offset=30)```

Explore the various parking lots that you can create by using predefined layouts as well as the options for configuring those layouts.

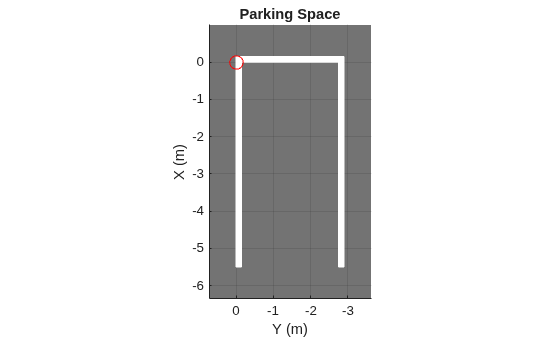

Define the parking space used to populate the parking lot. Modify the width, length, or angle of the space and the width and strength of its lane markings. Plot the parking space.

```width = 2.6; % m length = 5.5; % m angle = 90; % deg markingWidth = 0.15; markingStrength = 1; space = parkingSpace(Width=width, ... Length=length, ... Angle=angle, ... MarkingWidth=markingWidth, ... MarkingStrength=markingStrength); plot(space)```

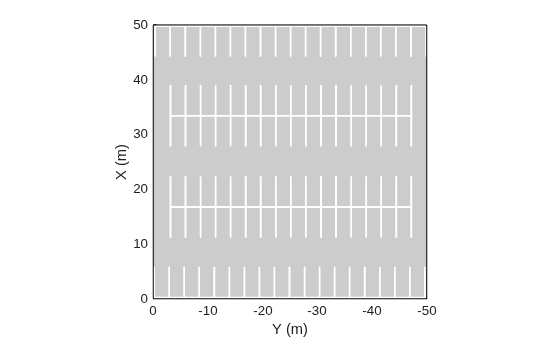

Create a driving scenario containing a 50-by-50 meter parking lot. Specify a predefined parking lot layout and a minimum driving lane width. The generated parking lot fills with as many parking spaces that fit the layout as possible given the minimum driving lane width constraint. Modify the parking space, layout type, and driving lane width, and observe the effects on the parking lot. For example:

• As you increase the size of the parking space or the minimum driving lane width, the number of parking grids that fit in the middle of the parking lot decreases.

• If you select the `HorizontalWithEdges` or `VerticalWithEdges` layout, one edge has fewer spaces than the others. This edge contains a driving lane of width `DrivingLaneWidth` that enables vehicles to enter the parking lot.

```scenario = drivingScenario; vertices = [0 0; 50 0; 50 -50; 0 -50]; parkingLayout = "Vertical"; drivingLaneWidth = 2.6; % m parkingLot(scenario,vertices, ... ParkingSpace=space, ... ParkingLayout=parkingLayout, ... DrivingLaneWidth=drivingLaneWidth); plot(scenario)```

Create a driving scenario containing a 50-meter road and a 20-by-30 meter parking lot. Plot the scenario.

```scenario = drivingScenario; roadcenters = [0 50; 50 0]; road(scenario,roadcenters); vertices = [40 10; 25 -5; 5 15; 20 30]; lot = parkingLot(scenario,vertices); plot(scenario)```

Insert a parking grid into the lot. Specify a grid with two rows of eight spaces. Use the default parking space dimensions, and place the grid at a 45-degree angle to align it with the road.

```space = parkingSpace; numSpaces = 8; insertParkingSpaces(lot,space,numSpaces,Rows=2,Position=[15 20],Orientation=45)```

Create a parking lot that contains a mixture of parking spaces, no-parking areas, and accessible spaces.

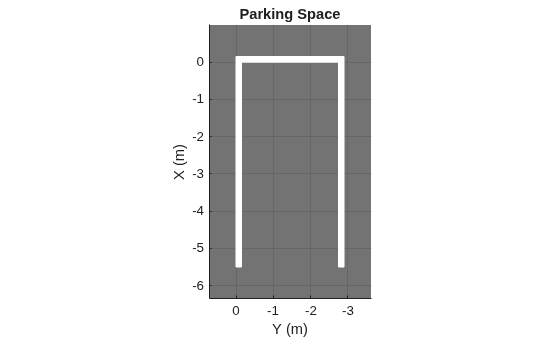

Define the parking space to use in the parking lot. Use the default settings. Plot the space.

```space = parkingSpace; plot(space,Origin="off")```

Define the no-parking areas to use in the parking lot. Specify a color of white and a width that is one meter less than the width of the default parking space. Plot the space.

```noSpace = parkingSpace(Type="NoParking",Width=(space.Width - 1),MarkingColor="White"); plot(noSpace,Origin="off")```

Define the accessible parking space to use in the parking lot. Specify a width that is one meter more than the width of the default parking space. Plot the space.

```accessibleSpace = parkingSpace(Type="Accessible",Width=(space.Width + 1)); plot(accessibleSpace,Origin="off")```

Create a driving scenario containing a parking lot with a nonrectangular layout. Plot the parking lot and display the edge numbers along which you can add parking spaces.

```scenario = drivingScenario; vertices = [0 0; 32 -10.5; 32 -50.5; 25 -57.5; 0 -57.5]; lot = parkingLot(scenario,vertices); plot(scenario,ParkingLotEdges="on")```

Insert default parking spaces along the first three edges of the parking lot. To avoid overlapping parking spaces, make these adjustments to the insertions:

• Along edge 1, insert only 10 spaces.

• Along edge 2, offset the spaces by 5 meters from the first vertex of the edge.

• Along edge 3, offset the spaces by 3 meters from the first vertex of the edge.

```numSpaces = 10; insertParkingSpaces(lot,space,numSpaces,Edge=1) insertParkingSpaces(lot,space,Edge=2,Offset=5) insertParkingSpaces(lot,space,Edge=3,Offset=3)```

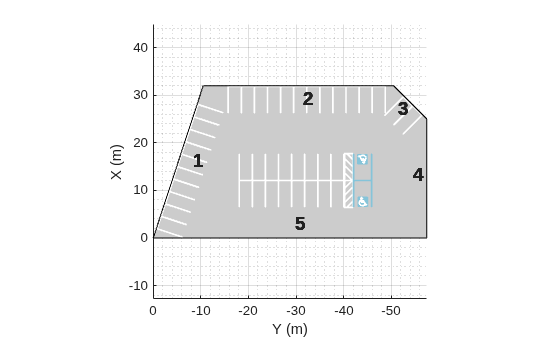

In the center of the parking lot, insert a 2-by-10 grid of parking spaces containing 8 columns of default spaces, 1 column of no-parking areas, and 1 column of accessible spaces.

`insertParkingSpaces(lot,[space noSpace accessibleSpace],[8 1 1],Position=[12 -18],Rows=2)`

Simulate a driving scenario in which a car drives in reverse to back into a parking space.

Create a driving scenario containing a parking lot.

```scenario = drivingScenario; vertices = [0 9; 18 9; 18 -9; 0 -9]; parkingLot(scenario,vertices,ParkingSpace=parkingSpace); ```

Create a car and define its trajectory. The car drives forward, stops, and then drives in reverse to back into the parking space. As the car enters the parking space, it has a yaw orientation angle that is 90 degrees counterclockwise from where it started.

```car = vehicle(scenario,ClassID=1); waypoints = [9 -5; 9 5; 6 -1.3; 2 -1.3]; speed = [3; 0; -2; 0]; yaw = [90 90 180 180]; smoothTrajectory(car,waypoints,speed,Yaw=yaw) ```

Plot the driving scenario and display the waypoints of the trajectory.

```plot(scenario,Waypoints="on") while advance(scenario) pause(0.001) end ```

Generate detections of cars parked in a parking lot, and plot the detections on a bird's-eye plot.

Create a driving scenario containing a road and parking lot.

```scenario = drivingScenario; roadcenters = [10 40; 10 -40]; road(scenario,roadcenters); vertices = [0 20; 20 20; 20 -20; 0 -20]; parkingLot(scenario,vertices,ParkingSpace=parkingSpace); ```

Add an ego vehicle and specify a trajectory in which the vehicle drives through the parking lot.

```ego = vehicle(scenario); waypoints = [10 35 0; 10 10 0]; speed = 5; % m/s smoothTrajectory(ego,waypoints,speed) ```

Create parked cars in several parking spaces. Plot the scenario.

```parkedCar1 = vehicle(scenario,Position=[15.8 12.4 0]); parkedCar2 = vehicle(scenario,Position=[15.8 -12.4 0]); parkedCar3 = vehicle(scenario,Position=[2 -9.7 0]); parkedCar4 = vehicle(scenario,Position=[2 9.7 0]); plot(scenario) ```

Create a vision sensor for generating the detections. By default, the sensor is mounted to the front bumper of the ego vehicle.

```sensor = visionDetectionGenerator; ```

Create a bird's-eye plot and plotters for visualizing the target outlines, road boundaries, parking lane markings, sensor coverage area, and detections. Then, simulate the scenario and generate the detections.

```bep = birdsEyePlot(XLim=[-40 40],YLim=[-30 30]); olPlotter = outlinePlotter(bep); lbPlotter = laneBoundaryPlotter(bep); lmPlotter = laneMarkingPlotter(bep,DisplayName="Parking lanes"); caPlotter = coverageAreaPlotter(bep,DisplayName="Coverage area"); detPlotter = detectionPlotter(bep,DisplayName="Detections"); while advance(scenario) % Plot target outlines. [position,yaw,length,width,originOffset,color] = targetOutlines(ego); plotOutline(olPlotter,position,yaw,length,width) % Plot lane boundaries of ego vehicle. rbEgo = roadBoundaries(ego); plotLaneBoundary(lbPlotter,rbEgo) % Plot parking lane markings. [plmv,plmf] = parkingLaneMarkingVertices(ego); plotParkingLaneMarking(lmPlotter,plmv,plmf) % Plot sensor coverage area. mountPosition = sensor.SensorLocation; range = sensor.MaxRange; orientation = sensor.Yaw; fieldOfView = sensor.FieldOfView(1); plotCoverageArea(caPlotter,mountPosition,range,orientation,fieldOfView) % Generate and plot detections. actors = targetPoses(ego); time = scenario.SimulationTime; [dets,isValidTime] = sensor(actors,time); if isValidTime positions = cell2mat(cellfun(@(x)([x.Measurement(1) x.Measurement(2)]), ... dets,UniformOutput=false)); plotDetection(detPlotter,positions) end end ```

## Input Arguments

collapse all

Driving scenario, specified as a `drivingScenario` object.

Parking lot vertices, specified as an N-by-2 or N-by-3 real-valued matrix. N is the number of vertices, and each of the N – 1 segments between the vertices defines a parking lot edge. N must be greater than or equal to 3.

• If `vertices` is an N-by-2 matrix, then each matrix row represents the (x, y) coordinate of a vertex. The z-coordinate of each vertex is `0`.

• If `vertices` is an N-by-3 matrix, then each matrix row represents the (x, y, z) coordinate of a vertex.

Vertices are in the world coordinate system of the driving scenario.

This argument sets the `Vertices` property of the parking lot. To view the properties of a parking lot, either access the `ParkingLots` property of `scenario`, or return the parking lot by specifying the `lot` output argument.

Example: `[0 0; 0 20; 20 20; 20 0]`

Example: `[0 0 0; 0 20 5; 20 20 5; 20 0 0]`

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: `ParkingSpace=parkingSpace,ParkingLayout="Horizontal"` populates a parking lot with the default parking space in a horizontal layout.

Parking space used to populate the parking lot, specified as a `parkingSpace` object. To specify the type of layout used to populate the parking lot with spaces, use the `ParkingLayout` name-value argument.

You can specify `ParkingSpace` only for rectangular parking lots. To add parking spaces to nonrectangular parking lots, use the `insertParkingSpaces` function.

Parking lot layout, specified as `"Vertical"`, `"Horizontal"`, `"VerticalWithEdges"`, or `"HorizontalWithEdges"`.

To use this argument, you must specify the `ParkingSpace` name-value argument. The `parkingLot` function adds as many spaces of space `ParkingSpace` that fit the layout as possible, given the minimum driving width specified by `DrivingLaneWidth`.

This table describes the `ParkingLayout` options.

OptionDescription
`"Vertical"`

Lay out parking spaces from top to bottom.

`"Horizontal"`

Lay out parking spaces from left to right.

`"VerticalWithEdges"`

Lay out parking spaces from top to bottom and also insert parking spaces along the left and right edges. To enable vehicles to enter the parking lot, the bottom edge contains a driving lane with a width of `DrivingLaneWidth` meters.

`"HorizontalWithEdges"`

Lay out parking spaces from left to right and also insert parking spaces along the top and bottom edges. To enable vehicles to enter the parking lot, the right edge contains a driving lane with a width of `DrivingLaneWidth` meters.

Data Types: `char` | `string`

Minimum width of driving lanes in the parking lot, in meters, specified as a real scalar in the range [0, 50]. To use this argument, you must specify the `ParkingSpace` name-value argument. The `parkingLot` function uses `DrivingLaneWidth` to determine the amount of space to add on either side of the parking grids. By default, `DrivingLaneWidth` is equal to the width of the space specified by `ParkingSpace`.

To enforce the symmetrical arrangement of the parking grids, the actual width of driving lanes might be greater than `DrivingLaneWidth`. For example, in this parking lot, the horizontal width, WH, is equal to `DrivingLaneWidth`, but the vertical width, WV, is slightly greater than `DrivingLaneWidth`. The extra vertical width enables the even distribution of the parking grids in the lot along the vertical axis

Parking lot name, specified as a character vector or string scalar. This argument sets the `Name` property of the parking lot. To view this property in a parking lot, either access the `ParkingLots` property of `scenario` or return the parking lot by specifying the `lot` output argument.

Data Types: `char` | `string`

## Output Arguments

collapse all

Output parking lot, returned as a `ParkingLot` object that has the properties described in this table. With the exception of `RoadID`, which is a scenario-generated property, the property names correspond to the input arguments used to create the parking lot. All properties are read-only.

PropertyValue
`Vertices`

Parking lot vertices, specified as a real-valued N-by-3 matrix, where N is the number of vertices.

The `vertices` input argument sets this property. If you specify `vertices` as an N-by-2 matrix, then the third value (z-value) of each matrix row of `Vertices` is `0`. The stored `Vertices` are of the same data type as the input `vertices`.

`RoadID`

Parking lot identifier, specified as a positive integer.

The input `drivingScenario` object specified by `scenario` generates a unique ID for each road and parking lot in the driving scenario. Driving scenarios treat a parking lot as a road, because it forms junctions when it intersects with other roads.

`Name`

Parking lot name, specified as a string scalar.

The `Name` name-value argument sets this property. Even if you specify this argument as a character vector, the `Name` property value is a string scalar.

To insert parking spaces into this parking lot, specify `lot` as an input argument of the `insertParkingSpaces` function.

## Limitations

• The importing of parking lot data from external sources by using the `roadNetwork` function is not supported.

• The importing of parking lots into the Driving Scenario Designer app is not supported. If you open a scenario containing a parking lot in the app, the app omits the parking lot from the scenario.

• The importing of parking lots into Simulink® is not supported. If you read a scenario containing a parking lot into Simulink by using the Scenario Reader block, the block omits the parking lot from the Simulink model.

• Sensor detections of parking lane markings are not supported. However, you can visualize parking lane markings on a `birdsEyePlot` object by using the `plotParkingLaneMarking` function.

## Version History

Introduced in R2021b
