Since R2021a

## Syntax

``roadGroup(scenario,rg)``

## Description

example

````roadGroup(scenario,rg)` creates a road junction or intersection from road segments and adds it to the driving scenario `scenario`. The `RoadGroup` object `rg` specifies the road segments that link the roads meeting at an intersection.```

## Examples

collapse all

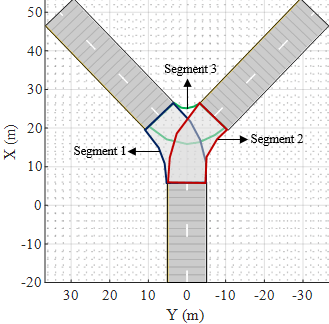

A three-way intersection is a Y-Junction in which two adjacent roads intersect the third road at an obtuse angle, as shown in this figure. To connect the three roads, you will create a Y-Junction by adding three road segments.

Create an empty driving scenario.

`scenario = drivingScenario;`

Specify the number of lanes and the width of each lane in the roads.

`ls = lanespec(2,'Width',5);`

Define the road centers for three roads and add them to the driving scenario. The first road is diagonally oriented to the left of the scenario canvas, second road is diagonally oriented to the right of the scenario canvas, and the third road is oriented vertically.

```% Add the first road roadCenters = [-20 0; 6 0]; road(scenario,roadCenters,'Name','Road 1','Lanes',ls); % Add the second road roadCenters = [23 7; 50 33]; road(scenario,roadCenters,'Name','Road 2','Lanes',ls); % Add the third road roadCenters = [23 -7; 50 -33]; road(scenario,roadCenters,'Name','Road 3','Lanes',ls);```

Plot the scenario.

```figure plot(scenario)```

Create a `RoadGroup` object. Specify the width for each road segment that forms the Y-junction.

```rg = driving.scenario.RoadGroup('Name','Y-Junction'); roadWidth = 10;```

Specify the road centers for three road segments, and add these road segments to the `RoadGroup` object by using the `road` function. These road segments intersect with each other.

```% Add the first road segment roadCenters = [23 7; 14 1; 6 0]; road(rg,roadCenters,roadWidth,'Name','Segment 1'); % Add the second road segment roadCenters = [23 -7; 14 -1; 6 0]; road(rg,roadCenters,roadWidth,'Name','Segment 2'); % Add the third road segment roadCenters = [23 7; 21 4; 21 -4; 23 -7]; road(rg,roadCenters,roadWidth,'Name','Segment 3');```

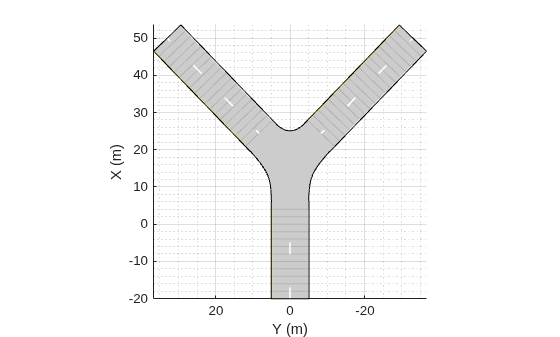

Add the road segments stored in the `RoadGroup` object to the driving scenario by using the `roadGroup` function. The road segments form a Y-Junction that connects the three roads in the driving scenario.

`roadGroup(scenario,rg);`

## Input Arguments

collapse all

Driving scenario, specified as a `drivingScenario` object.

Specifications for road segments that form an intersection, specified as a `RoadGroup` object. Add separate road segments to connect each pair of incoming roads meeting at an intersection. Use the `road` function to add a road segment to the `RoadGroup` object.

Note

• You cannot alter the properties of road segments after adding them to the `RoadGroup` object.

## Limitations

• The function does not support lane markings in intersections.

• The scenario plot does not display the road centers in the intersection.

## Tips

• Add at least one road segment to the `RoadGroup` object to create an intersection using the `roadGroup` function.

• To create a smooth surface shape in an intersection, you must match the specifications (road centers, width, elevation and banking angle) of the road segments in the `RoadGroup` object to those of the incoming roads meeting at the intersection.

• The function considers only the first lane specification for each road segment while creating an intersection, so specify only a single lane specification for each road segment of the `RoadGroup` object.

## Version History

Introduced in R2021a
