# lanespec

Create road lane specifications

## Description

The `lanespec` object defines the lane specifications of a road that was added to a `drivingScenario` object using the `road` function. For more details, see Lane Specifications.

## Creation

### Syntax

``lnspec = lanespec(numlanes)``
``lnspec = lanespec(numlanes,Name,Value)``

### Description

````lnspec = lanespec(numlanes)` creates lane specifications for a road having `numlanes` lanes. `numLanes` sets the `NumLanes` property of the `lanespec` object. The order for numbering the lanes on a road depend on the orientation of the road. For more details, see Draw Direction of Road and Numbering of Lanes.```

example

````lnspec = lanespec(numlanes,Name,Value)` sets properties using one or more name-value pairs. For example, `lanespec(3,'Width',[2.25 3.5 2.25])` specifies a three-lane road with widths from left to right of 2.25 meters, 3.5 meters, and 2.25 meters. For more information on the geometrical properties of a lane, see Lane Specifications.```

## Properties

expand all

This property is read-only.

Number of lanes in the road, specified as a positive integer or two-element vector of positive integers, [NL, NR]. When `NumLanes` is a positive integer, all lanes flow in the same direction. When `NumLanes` is a vector:

• NL is the number of left lanes, all flowing in one direction.

• NR is the number of right lanes, all flowing in the opposite direction.

The total number of lanes in the road is the sum of these vector values: N = NL + NR.

You can set this property when you create the object. After you create the object, this property is read-only.

Example: `[2 2]` specifies two left lanes and two right lanes.

Lane widths, specified as a positive real scalar or 1-by-N vector of positive real scalars, where N is the number of lanes in the road. N must be equal to `numlanes` and the corresponding value set in the `NumLanes` property.

When `Width` is a scalar, the same value is applied to all lanes. When `Width` is a vector, the vector elements apply to lanes from left to right. Units are in meters.

Example: `[3.5 3.7 3.7 3.5]`

Data Types: `double`

Lane markings of road, specified as one of these values:

• `LaneMarking` object. This is the default.

• `SolidMarking` object

• `DashedMarking` object

• `CompoundMarking` object

• 1-by-M array of lane marking objects.

M is the number of lane markings. For a road with N lanes, M = N + 1.

To create lane marking objects, use the `laneMarking` function and specify the type of lane marking.

`'Unmarked' ``'Solid'``'Dashed'``'DoubleSolid'``'DoubleDashed'``'SolidDashed'``'DashedSolid'`

No lane marking

Solid line

Dashed line

Two solid lines

Two dashed lines

Solid line on left, dashed line on right

Dashed line on left, solid line on right

By default, for a one-way road, the rightmost and center lane markings are white and the leftmost lane marking is yellow. For two-way roads, the color of the dividing lane marking is yellow.

Example: ```[laneMarking('Solid') laneMarking('DoubleDashed') laneMarking('Solid')]``` specifies lane markings for a two-lane road. The leftmost and rightmost lane markings are solid lines, and the dividing lane marking is a double-dashed line.

Lane types of road, specified as a homogeneous lane type object or a 1-by-M array of lane type objects. M is the number of lane types.

To create lane type objects, use the `laneType` function and specify the type of lane.

 `'Driving'` `'Border'` `'Restricted'` `'Shoulder'` `'Parking'`

Example: `[laneType('Shoulder') laneType('Driving')]` specifies the lane types for a two-lane road. The leftmost lane is the shoulder lane and the rightmost lane is the driving lane.

## Examples

collapse all

Create a driving scenario and the road centers for a straight, 80-meter road.

```scenario = drivingScenario; roadCenters = [0 0; 80 0];```

Create a `lanespec` object for a four-lane road. Use the `laneMarking` function to specify its five lane markings. The center line is double-solid and double yellow. The outermost lines are solid and white. The inner lines are dashed and white.

```solidW = laneMarking('Solid','Width',0.3); dashW = laneMarking('Dashed','Space',5); doubleY = laneMarking('DoubleSolid','Color','yellow'); lspec = lanespec([2 2],'Width',[5 5 5 5], ... 'Marking',[solidW dashW doubleY dashW solidW]);```

Add the road to the driving scenario. Display the road.

```road(scenario,roadCenters,'Lanes',lspec); plot(scenario)```

Simulate a driving scenario with one car traveling on an S-curve. Create and plot the lane boundaries.

Create the driving scenario with one road having an S-curve.

```scenario = drivingScenario('StopTime',3); roadcenters = [-35 20 0; -20 -20 0; 0 0 0; 20 20 0; 35 -20 0]; ```

Create the lanes and add them to the road.

```lm = [laneMarking('Solid','Color','w'); ... laneMarking('Dashed','Color','y'); ... laneMarking('Dashed','Color','y'); ... laneMarking('Solid','Color','w')]; ls = lanespec(3,'Marking',lm); road(scenario,roadcenters,'Lanes',ls); ```

Add an ego vehicle and specify its trajectory from its waypoints. By default, the car travels at a speed of 30 meters per second.

```car = vehicle(scenario, ... 'ClassID',1, ... 'Position',[-35 20 0]); waypoints = [-35 20 0; -20 -20 0; 0 0 0; 20 20 0; 35 -20 0]; smoothTrajectory(car,waypoints); ```

Plot the scenario and corresponding chase plot.

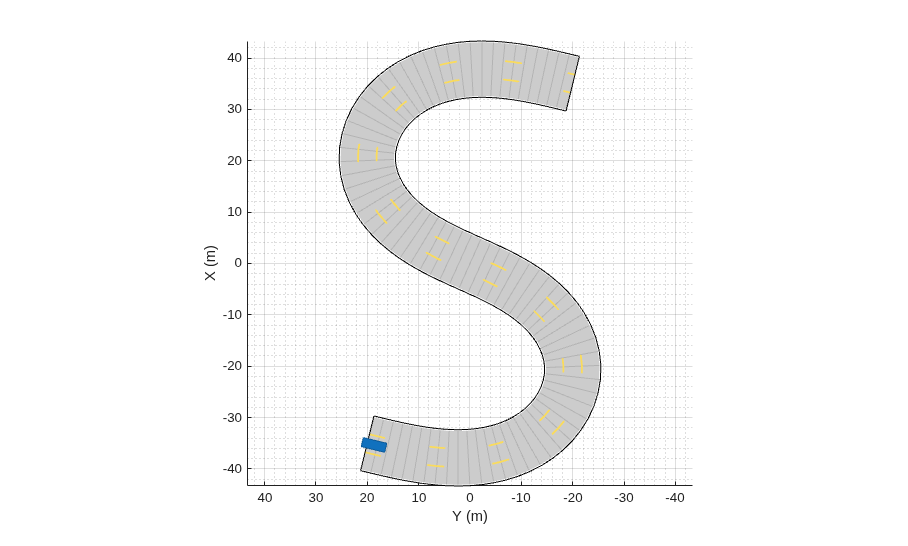

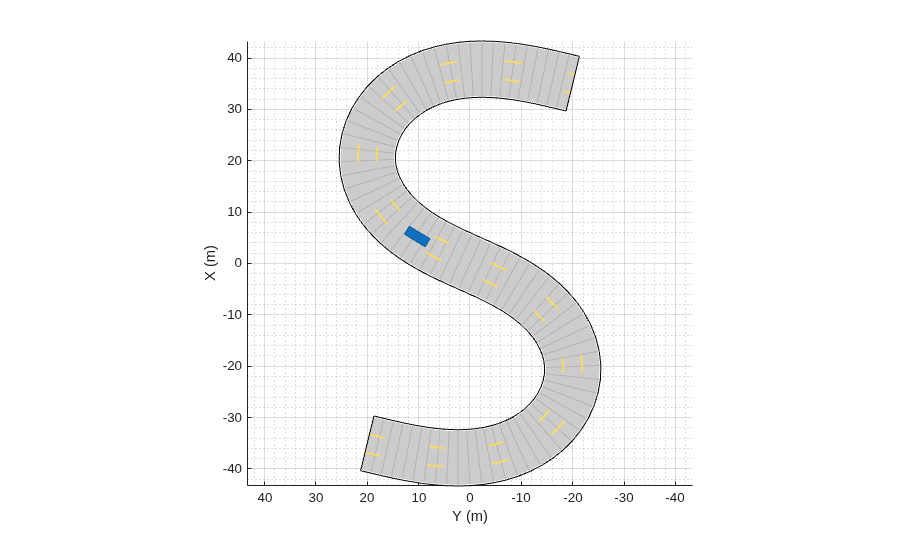

```plot(scenario) ```

```chasePlot(car) ```

Run the simulation loop.

1. Initialize a bird's-eye plot and create an outline plotter, left-lane and right-lane boundary plotters, and a road boundary plotter.

2. Obtain the road boundaries and rectangular outlines.

3. Obtain the lane boundaries to the left and right of the vehicle.

4. Advance the simulation and update the plotters.

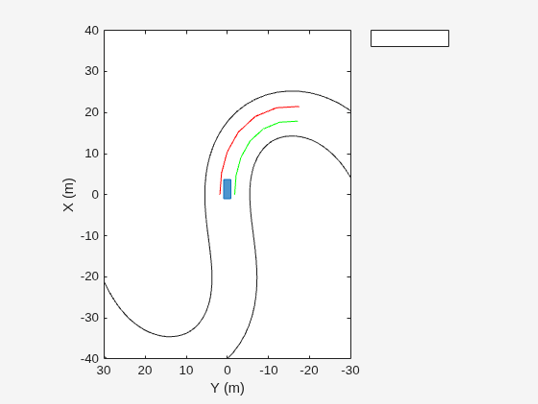

```bep = birdsEyePlot('XLim',[-40 40],'YLim',[-30 30]); olPlotter = outlinePlotter(bep); lblPlotter = laneBoundaryPlotter(bep,'Color','r','LineStyle','-'); lbrPlotter = laneBoundaryPlotter(bep,'Color','g','LineStyle','-'); rbsEdgePlotter = laneBoundaryPlotter(bep); legend('off'); while advance(scenario) rbs = roadBoundaries(car); [position,yaw,length,width,originOffset,color] = targetOutlines(car); lb = laneBoundaries(car,'XDistance',0:5:30,'LocationType','Center', ... 'AllBoundaries',false); plotLaneBoundary(rbsEdgePlotter,rbs) plotLaneBoundary(lblPlotter,{lb(1).Coordinates}) plotLaneBoundary(lbrPlotter,{lb(2).Coordinates}) plotOutline(olPlotter,position,yaw,length,width, ... 'OriginOffset',originOffset,'Color',color) end ```

## Limitations

• Lane markings in intersections are not supported.

• The number of lanes for a road is fixed. You cannot change lane specifications for a road during a simulation.
