modifyDisplayChannel
Modify properties of Logic Analyzer display channel
Description
Examples

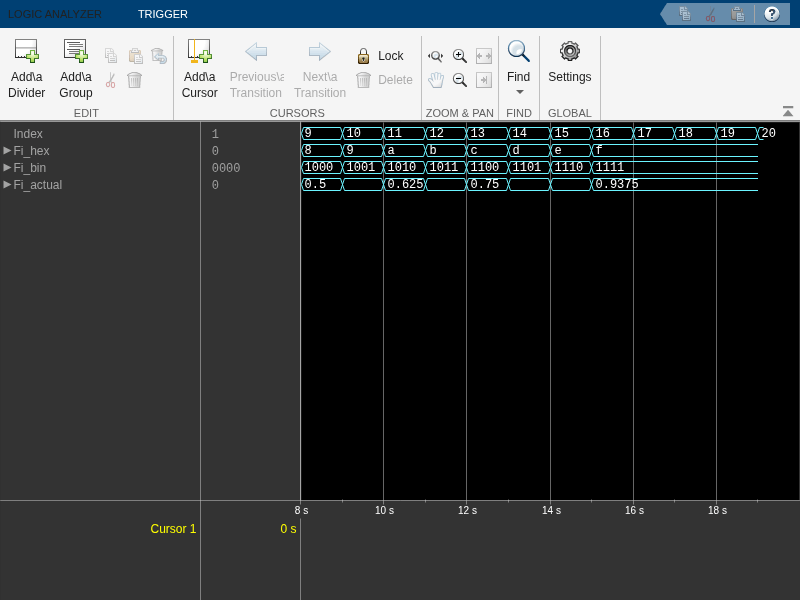

Display Fixed-Point Signals
Create a dsp.LogicAnalyzer
object with four channels. Call modifyDisplayChannel
to set the radix of each of the channels. Run the scope in a loop to display the waves.
scope = dsp.LogicAnalyzer('NumInputPorts',4,'DisplayChannelFormat','Digital'); scope.TimeSpan = 12; modifyDisplayChannel(scope,1,'Name','Index','Radix','Unsigned decimal'); modifyDisplayChannel(scope,2,'Name','Fi_hex','Radix','Hexadecimal'); modifyDisplayChannel(scope,3,'Name','Fi_bin','Radix','Binary'); modifyDisplayChannel(scope,4,'Name','Fi_actual','Radix','Signed decimal'); for ii = 1:20 fival = fi((ii-1)/16,0,4,4); scope(ii,fival,fival,fival); end
Manipulate Logic Analyzer Programmatically
Use functions to construct and manipulate a dsp.LogicAnalyzer System object.
Display Waves on Logic Analyzer scope.
scope = dsp.LogicAnalyzer('NumInputPorts',2); stop = 30; for count = 1:stop sinValVec = sin(count/stop*2*pi); cosValVec = cos(count/stop*2*pi); cosValVecOffset = cos((count+10)/stop*2*pi); scope([count (count-(stop/2))],[sinValVec cosValVec cosValVecOffset]) end
Reorganize Display
hide(scope) digitalDividerTag = addDivider(scope,'Name','Digital','Height',20); analogDividerTag = addDivider(scope,'Name','Analog','Height',40); tags = getDisplayChannelTags(scope); modifyDisplayChannel(scope,tags{1},'InputChannel',1,... 'Name','Ramp Digital','Height',40); modifyDisplayChannel(scope,tags{2},'InputChannel',2,... 'Name','Waves Analog','Format','Analog','Height',80); moveDisplayChannel(scope,digitalDividerTag,'DisplayChannel',1) moveDisplayChannel(scope,tags{2},'DisplayChannel',length(tags)) show(scope)
Duplicate Wave and Check Information
hide(scope) addWave(scope,'InputChannel',2,'Name','Waves Digital','Format','Digital',... 'Height',30,'DisplayChannel',3); show(scope)
Remove Dividers
hide(scope) deleteDisplayChannel(scope,digitalDividerTag) deleteDisplayChannel(scope,analogDividerTag) show(scope)
Clear variables
clear analogDividerTag cosValVec cosValVecOffset count digitalDividerTag duplicateWave scope sinValVec stop tags
Input Arguments
scope
— Logic Analyzer object for which you want to modify a display channel
dsp.LogicAnalyzer
object
dsp.LogicAnalyzer
The Logic Analyzer object for which you want to modify a display channel,
specified as a handle to the dsp.LogicAnalyzer
object.
tag
— which display channel to modify
character vector | string scalar
The tag identifying which display channel to modify.
Example: modifyDisplayChannel(scope,tag)
Example: modifyDisplayChannel(scope,'W4')
Data Types: char
| string
The first section on Name-Value Pair Arguments shows the properties you can set if the display channel contains a wave. The second section on Name-Value Pair Arguments shows the properties you can set if the display channel contains a divider.
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: 'InputChannel',2,'Color','Blue'
specifies that a wave should be added to input channel 1 and
colored blue.
Color
— Color of the wave
'Default'
(default) | character vector | three element numeric vector | string scalar
Color of the wave, specified as an [R G B]
value or one of the following:
'Black'
'Blue'
'Cyan'
'Default'
'Green'
'Magenta'
'Red'
'White'
'Yellow'
When you choose 'Default'
, the value of the DisplayChannelColor
property in the Logic Analyzer is used.
Example: 'Color','Blue'
Example: 'Color',[0,0,1]
Data Types: char
| string
| double
| single
| uint8
| uint16
| uint32
| uint64
| int8
| int16
| int32
| int64
DisplayChannel
— Channel on the display that shows this wave
NumInputPorts
(default) | scalar numeric value in the range (1,NumInputPorts
)
Specify as a scalar numeric value the display channel that shows this wave. By default, the wave is added to the end of the display.
Example: 'DisplayChannel',2
Data Types: double
| single
| uint8
| uint16
| uint32
| uint64
| int8
| int16
| int32
| int64
FontSize
— Font size for values in the wave
0
(default) | scalar nonnegative integer
Specify as a scalar nonnegative integer the font size in points. When you choose 0, the value of the
DisplayChannelFontSize
property in the Logic Analyzer is used.
Example: 'FontSize',8
Data Types: double
Format
— Display format for the wave
'Default'
(default) | 'Analog'
| 'Digital'
When you choose 'Default'
, the value of the DisplayChannelFormat
property in the Logic Analyzer is used.
Example: 'Format','Digital'
Data Types: char
| string
Height
— Height of the wave
0
(default) | scalar integer
Specify as a scalar integer the height of the wave in the display in units of 16 pixels. When you choose 0,
the value of the DisplayChannelHeight
property in the Logic Analyzer is used.
Example: 'Height',2
Data Types: double
InputChannel
— Input channel that corresponds to this wave
1
(default) | scalar integer in the range (1,NumInputPorts
)
This property specifies the input channel whose data is used for this wave. By default, it will connect the first input to this wave.
Example: 'InputChannel',2
Data Types: double
| single
| uint8
| uint16
| uint32
| uint64
| int8
| int16
| int32
| int64
Name
— Name or label for the wave
''
(default) | character vector | string scalar
Specify the name that you would like to set for the new wave.
Example: 'Name','MyWave'
Data Types: char
| string
Radix
— Radix for the wave
'Default'
(default) | 'Binary'
| 'Hexadecimal'
| 'Octal'
| 'Signed decimal'
| 'Unsigned decimal'
When the input signals are of class double, single, or logical, you should not set this property. When you
choose 'Default'
, the value of the DisplayChannelRadix
property in the
Logic Analyzer is used.
Data Types: char
| string
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: 'DisplayChannel',2,'Name','MyDivider'
specifies that a divider should be added to display
channel 2 and named “MyDivider”.
DisplayChannel
— Channel on the display that shows this divider
NumInputPorts
(default) | scalar numeric value in the range (1,NumInputPorts
)
Specify as a scalar numeric value the display channel that shows this divider. By default, the divider is added to the end of the display.
Example: 'DisplayChannel',2
Data Types: double
| single
| uint8
| uint16
| uint32
| uint64
| int8
| int16
| int32
| int64
Height
— Height of the divider
0
(default) | scalar integer
Specify, in pixels, the height of the divider as a scalar integer in the range 8-200. If you choose 0, the
value of the DisplayChannelHeight
property in the Logic Analyzer is used.
Example: 'Height',2
Data Types: double
Name
— The name or label for the divider
''
(default) | character vector | string scalar
Specify the name that you would like to set for the new divider.
Example: 'Name','MyDivider'
Data Types: char
| string
Version History
Introduced in R2013a
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
