Signal Monitoring and Parameter Tuning
Monitor signals and tune parameters on Renesas RA microcontrollers by using external-mode communication between the host and the target. Deploy your Simulink® model as generated C code and stream signal data in real time while adjusting parameters without regenerating code.
You can generate optimized code for Renesas RA microcontrollers and perform real-time signal monitoring, parameter tuning, and processor-in-the-loop (PIL) testing with Embedded Coder.
Topics
- Configuration for Monitor & Tune and PIL for Renesas RA Microcontrollers
Monitor signals, tune parameters, and validate generated code on Renesas RA microcontrollers using External mode and processor-in-the-loop (PIL) workflows.
Featured Examples
Test Generated Code with PIL Simulations on Renesas RA Microcontrollers

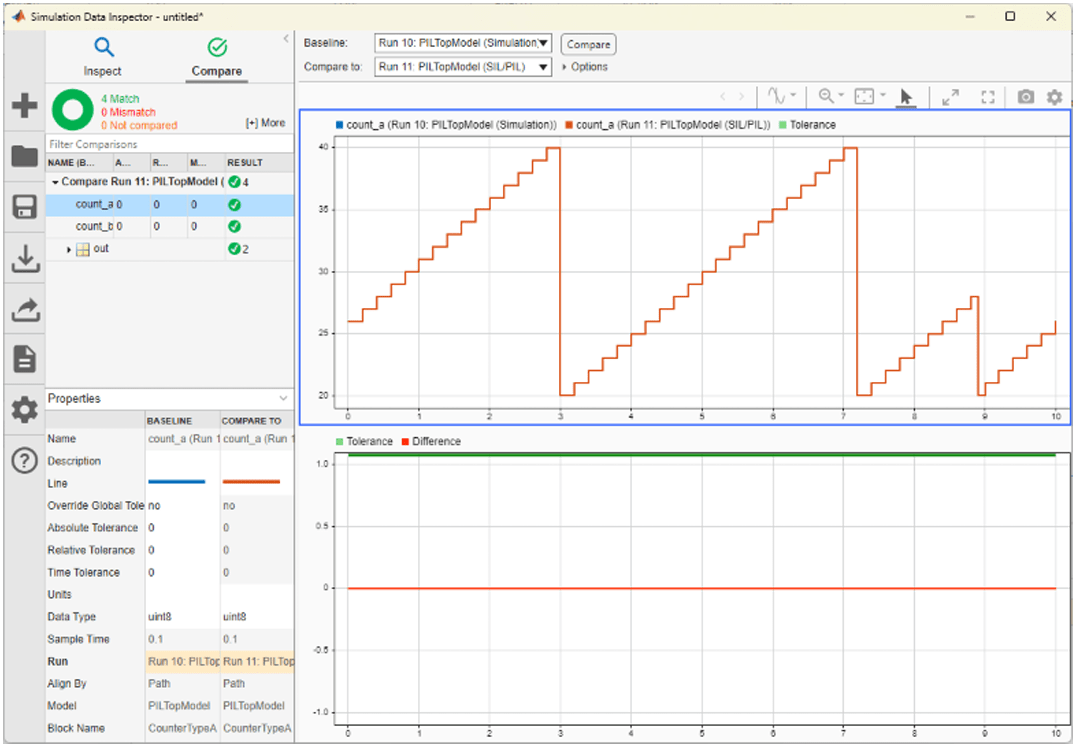

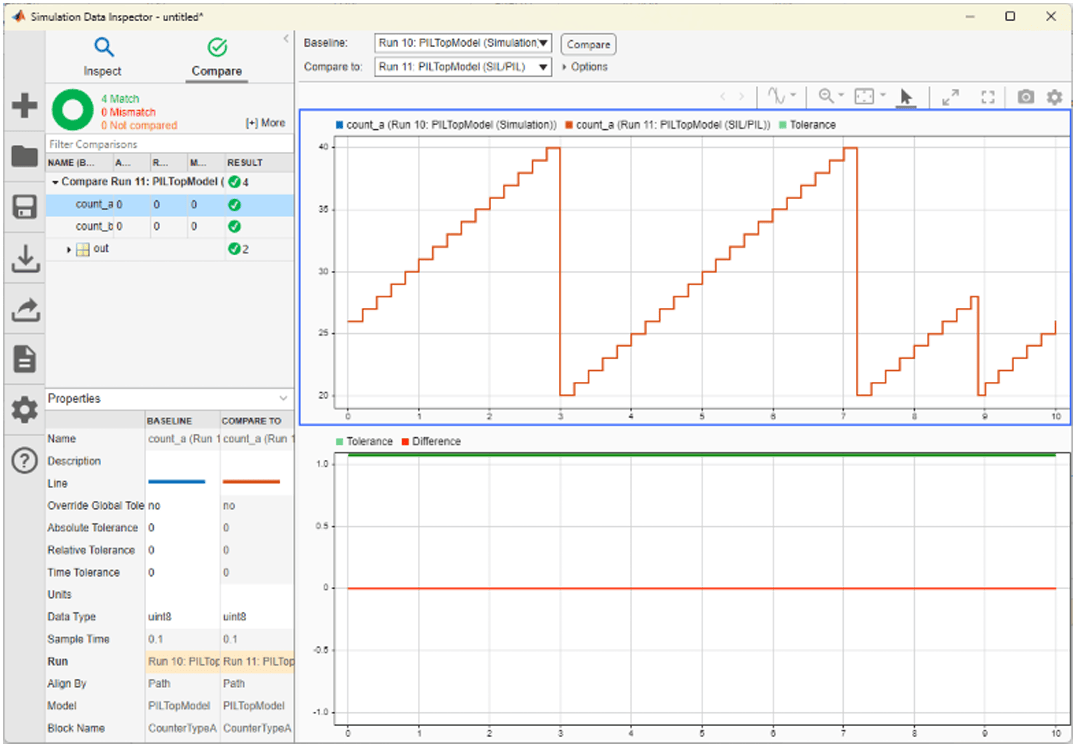

Use the Embedded Coder ® Support Package for Renesas® RA Microcontrollers to generate code from Simulink models and perform Processor-in-the-Loop (PIL) simulations on the Renesas RA6T2 board. You can run this workflow using either the SIL/PIL Manager or command-line approach. PIL verification is a key step in validating that the generated code, when executed on actual hardware, replicates the behavior of your original Simulink design. For more information, see Choose a SIL or PIL Approach and SIL/PIL Manager.
Execution Time Profiling of Field-Oriented Control (FOC) Algorithm Using PIL on Renesas RA Microcontrollers

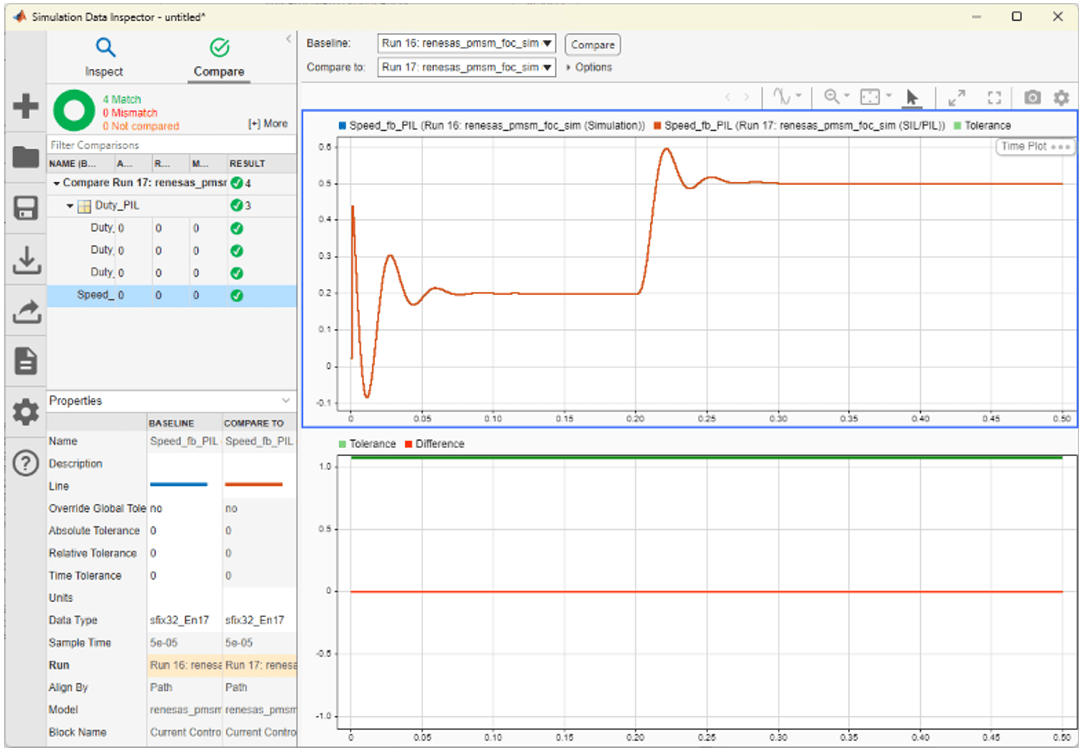

Use the Embedded Coder® Support Package for Renesas® RA Microcontrollers to perform Processor-in-the-Loop (PIL) profiling of a Field-Oriented Control (FOC) motor control algorithm on the Renesas MCK-RA6T2 hardware board. In PIL simulation, the control algorithm executes on the target hardware while the plant model runs on the host machine. This configuration enables you to measure and compare execution times, as well as verify numerical equivalence between simulation and hardware implementations.
