creditexposures

Compute credit exposures from contract values

Syntax

[exposures,exposurecpty] = creditexposures(values,counterparties)

[exposures,exposurecpty] = creditexposures(___,Name,Value)

[exposures,exposurecpty,collateral] = creditexposures(___,Name,Value)

Description

[exposures,exposurecpty] = creditexposures(values,counterparties) computes the counterparty credit exposures from an array of mark-to-market OTC contract values. These exposures are used when calculating the CVA (credit value adjustment) for a portfolio.

[exposures,exposurecpty] = creditexposures(___,Name,Value) adds optional name-value arguments.

[exposures,exposurecpty,collateral] = creditexposures(___,Name,Value) computes the counterparty credit exposures from an array of mark-to-market OTC contract values using optional name-value pair arguments for CollateralTable and Dates, the collateral output is returned for the simulated collateral amounts available to counterparties at each simulation date and over each scenario.

Examples

View Contract Values and Exposures Over Time for a Particular Counterparty

After computing the mark-to-market contract values for a portfolio of swaps over many scenarios, compute the credit exposure for a particular counterparty. View the contract values and credit exposure over time.

First, load data (ccr.mat) containing the mark-to-market contract values for a portfolio of swaps over many scenarios.

load ccr.mat
% Look at one counterparty.
cpID = 4;
cpValues = squeeze(sum(values(:,swaps.Counterparty == cpID,:),2));
subplot(2,1,1)
plot(simulationDates,cpValues);
title(sprintf('Mark-to-Market Contract Values for Counterparty: %d',cpID));
datetick('x','mmmyy')
ylabel('Portfolio Value ($)')
% Compute the exposure by counterparty.
[exposures, expcpty] = creditexposures(values,swaps.Counterparty,...
'NettingID',swaps.NettingID);
% View the credit exposure over time for the counterparty.
subplot(2,1,2)
cpIdx = find(expcpty == cpID);
plot(simulationDates,squeeze(exposures(:,cpIdx,:)));
title(sprintf('Exposure for counterparty: %d',cpIdx));
datetick('x','mmmyy')
ylabel('Exposure ($)')
xlabel('Simulation Dates')

Compute the Credit Exposure and Determine the Incremental Exposure for a New Trade

Load the data (ccr.mat) containing the mark-to-market contract values for a portfolio of swaps over many scenarios.

load ccr.mat

Look at one counterparty.

cpID = 4;
cpIdx = swaps.Counterparty == cpID;
cpValues = values(:,cpIdx,:);
plot(simulationDates,squeeze(sum(cpValues,2)));
grid on;
title(sprintf('Potential Mark-to-Market Portfolio Values for Counterparty: %d',cpID));
datetick('x','mmmyy')
ylabel('Portfolio Value ($)')

Compute the exposures.

netting = swaps.NettingID(cpIdx);
exposures = creditexposures(cpValues,cpID,'NettingID',netting);

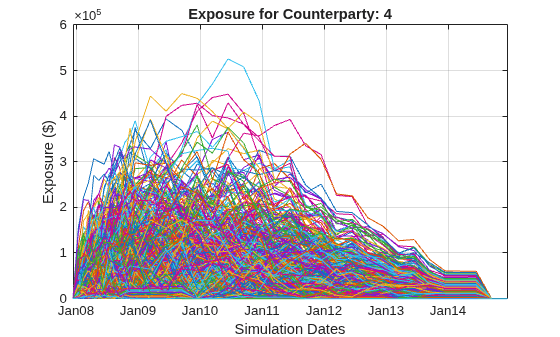

View the credit exposure over time for the counterparty.

figure;
plot(simulationDates,squeeze(exposures));
grid on
title(sprintf('Exposure for counterparty: %d',cpID));
datetick('x','mmmyy')
ylabel('Exposure ($)')
xlabel('Simulation Dates')

Compute the credit exposure profiles.

profilesBefore = exposureprofiles(simulationDates,exposures)

profilesBefore = struct with fields:
     Dates: [37x1 double]
        EE: [37x1 double]
       PFE: [37x1 double]
      MPFE: 2.1580e+05
     EffEE: [37x1 double]
       EPE: 2.8602e+04
    EffEPE: 4.9579e+04

Consider a new trade with a counterparty. For this example, take another trade from the original swap portfolio and "copy" it for a new counterparty. This example is only for illustrative purposes.

newTradeIdx = 3;
newTradeValues = values(:,newTradeIdx,:);

% Append a new trade to your existing portfolio.
cpValues = [cpValues newTradeValues];
netting = [netting; cpID];
exposures = creditexposures(cpValues,cpID,'NettingID',netting);

Compute the new credit exposure profiles.

profilesAfter = exposureprofiles(simulationDates,exposures)

profilesAfter = struct with fields:
     Dates: [37x1 double]
        EE: [37x1 double]
       PFE: [37x1 double]
      MPFE: 2.4689e+05
     EffEE: [37x1 double]
       EPE: 3.1609e+04
    EffEPE: 5.6178e+04

Visualize the expected exposures and the new trade's incremental exposure. Use the incremental exposure to compute the incremental credit value adjustment (CVA) charge.

figure;
subplot(2,1,1)
plot(simulationDates,profilesBefore.EE,...
    simulationDates,profilesAfter.EE);
grid on;
legend({'EE before','EE with trade'})
datetick('x','mmmyy','keeplimits')
title('Expected Exposure before and after new trade');
ylabel('Exposure ($)')

subplot(2,1,2)
incrementalEE = profilesAfter.EE - profilesBefore.EE;
plot(simulationDates,incrementalEE);
grid on;
legend('incremental EE')
datetick('x','mmmyy','keeplimits')
ylabel('Exposure ($)')
xlabel('Simulation Dates')

Compute Exposures for Counterparties Under Collateral Agreement

Load the data (ccr.mat) containing the mark-to-market contract values for a portfolio of swaps over many scenarios.

load ccr.mat

Only look at a single counterparty for this example.

cpID = 4;
cpIdx = swaps.Counterparty == cpID;
cpValues = values(:,cpIdx,:);

Compute the uncollateralized exposures.

exposures = creditexposures(cpValues,swaps.Counterparty(cpIdx),...
'NettingID',swaps.NettingID(cpIdx));

View the credit exposure over time for the counterparty.

plot(simulationDates,squeeze(exposures));
expYLim = get(gca,'YLim');
title(sprintf('Exposures for Counterparty: %d',cpID));
datetick('x','mmmyy')
ylabel('Exposure ($)')
xlabel('Simulation Dates')

Add a collateral agreement for the counterparty. The 'CollateralTable' parameter is a MATLAB® table. You can create tables from spreadsheets or other data sources, in addition to building them inline as seen here. For more information, see table.

collateralVariables = {'Counterparty';'PeriodOfRisk';'Threshold';'MinimumTransfer'};
periodOfRisk = 14;
threshold = 100000;
minTransfer = 10000;
collateralTable = table(cpID,periodOfRisk,threshold,minTransfer,...
'VariableNames',collateralVariables)

collateralTable=1×4 table
    Counterparty    PeriodOfRisk    Threshold    MinimumTransfer
    ____________    ____________    _________    _______________

         4               14           1e+05           10000

Compute the collateralized exposures.

[collatExp, collatcpty, collateral] = creditexposures(cpValues,...
    swaps.Counterparty(cpIdx),'NettingID',swaps.NettingID(cpIdx),...
    'CollateralTable',collateralTable,'Dates',simulationDates);

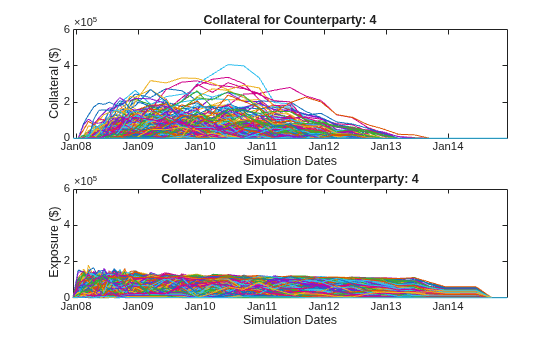

Plot the collateral levels and collateralized exposures.

figure;
subplot(2,1,1)
plot(simulationDates,squeeze(collateral));
set(gca,'YLim',expYLim);
title(sprintf('Collateral for counterparty: %d',cpID));
datetick('x','mmmyy')
ylabel('Collateral ($)')
xlabel('Simulation Dates')

subplot(2,1,2)
plot(simulationDates,squeeze(collatExp));
set(gca,'YLim',expYLim);
title(sprintf('Collateralized Exposure for Counterparty: %d',cpID));
datetick('x','mmmyy')
ylabel('Exposure ($)')
xlabel('Simulation Dates');

Input Arguments

values — 3-D array of simulated mark-to-market values of portfolio of contracts

array

3-D array of simulated mark-to-market values of a portfolio of contracts simulated over a series of simulation dates and across many scenarios, specified as a NumDates-by-NumContracts-by-NumScenarios “cube” of contract values. Each row represents a different simulation date, each column a different contract, and each “page” is a different scenario from a Monte-Carlo simulation.

Data Types: double

counterparties — Counterparties corresponding to each contract

vector | cell array

Counterparties corresponding to each contract in values, specified as a NumContracts-element vector of counterparties. Counterparties can be a vector of numeric IDs or a cell array of counterparty names. By default, each counterparty is assumed to have one netting set that covers all of its contracts. If counterparties are covered by multiple netting sets, then use the NettingID parameter. A value of NaN (or '' in a cell array) indicates that a contract is not included in any netting set unless otherwise specified by NettingID. counterparties is case insensitive and leading or trailing white spaces are removed.

Data Types: double | cell

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: [exposures,exposurecpty] = creditexposures(values,counterparties,'NettingID','10','ExposureType','Additive')

NettingID — Netting set IDs indicate which netting set each contract belongs

vector | cell array

Netting set IDs to indicate to which netting set each contract in values belongs, specified by a NumContracts-element vector of netting set IDs. NettingID can be a vector of numeric IDs or else a cell array of character vector identifiers. The creditexposures function uses counterparties and NettingID to define each unique netting set (all contracts in a netting set must be with the same counterparty). By default, each counterparty has a single netting set which covers all of their contracts. A value of NaN (or '' in a cell array) indicates that a contract is not included in any netting set. NettingID is case insensitive and leading or trailing white spaces are removed.

Data Types: double | cell

ExposureType — Calculation method for exposures

'Counterparty' (default) | character vector with value of 'Counterparty' or 'Additive'

Calculation method for exposures, specified with values:

• 'Counterparty' — Compute exposures per counterparty.

• 'Additive' — Compute additive exposures at the contract level. Exposures are computed per contract and sum to the total counterparty exposure.

Data Types: char

CollateralTable — Table containing information on collateral agreements of counterparties

MATLAB^® table

Table containing information on collateral agreements of counterparties, specified as a MATLAB table. The table consists of one entry (row) per collateralized counterparty and must have the following variables (columns):

• 'Counterparty' — Counterparty name or ID. The Counterparty name or ID should match the parameter 'Counterparty' for the ExposureType argument.

• 'PeriodOfRisk' — Margin period of risk in days. The number of days from a margin call until the posted collateral is available from the counterparty.

• 'Threshold' — Collateral threshold. When counterparty exposures exceed this amount, the counterparty must post collateral.

• 'MinimumTransfer' — Minimum transfer amount. The minimum amount over/under the threshold required to trigger transfer of collateral.

Note

When computing collateralized exposures, both the CollateralTable parameter and the Dates parameter must be specified.

Data Types: table

Dates — Simulation dates corresponding to each row of the values array

vector of date numbers | cell array of character vectors

Simulation dates corresponding to each row of the values array, specified as a NUMDATES-by-1 vector of simulation dates. Dates is either a vector of MATLAB date numbers or else a cell array of character vectors in a known date format.

Note

When computing collateralized exposures, both the CollateralTable parameter and the Dates parameter must be specified.

Data Types: double | cell

Output Arguments

exposures — 3-D array of credit exposures

array

3-D array of credit exposures representing the potential losses from each counterparty or contract at each date and over all scenarios. The size of exposures depends on the ExposureType input argument:

• When ExposureType is 'Counterparty', exposures returns a NumDates-by-NumCounterparties-by-NumScenarios “cube” of credit exposures representing potential losses that could be incurred over all dates, counterparties, and scenarios, if a counterparty defaulted (ignoring any post-default recovery).

• When ExposureType is 'Additive', exposures returns a NumDates-by-NumContracts-by-NumScenarios “cube,” where each element is the additive exposure of each contract (over all dates and scenarios). Additive exposures sum to the counterparty-level exposure.

exposurecpty — Counterparties that correspond to columns of exposures array

vector

Counterparties that correspond to columns of the exposures array, returned as NumCounterparties or NumContracts elements depending on the ExposureType.

collateral — Simulated collateral amounts available to counterparties at each simulation date and over each scenario

3D array

Simulated collateral amounts available to counterparties at each simulation date and over each scenario, returned as a NumDates-by-NumCounterparties-by-NumScenarios 3D array. Collateral amounts are calculated using a Brownian bridge to estimate contract values between simulation dates. For more information, see Brownian Bridge. If the CollateralTable was not specified, this output is empty.

More About

Brownian Bridge

A Brownian bridge is used to simulate portfolio values at intermediate dates to compute collateral available at the subsequent simulation dates.

For example, to estimate collateral available at a particular simulation date, t_i, you need to know the state of the portfolio at time t_i – dt, where dt is the margin period of risk. Portfolio values are simulated at these intermediate dates by drawing from a distribution defined by the Brownian bridge between t_i and the previous simulation date, t_i–1.

If the contract values at time t_{i –1} and t_i are known and you want to estimate the contract value at time t_c (where t_c is t_i – dt), then a sample from a normal distribution is used with variance:

$$\frac{(t_i-t_c)(t_c-t_{i-1})}{(t_i-t_{i-1})}$$

and with mean that is simply the linear interpolation of the contract values between the two simulation dates at time t_c. For more details, see References.

References

[1] Lomibao, D., and S. Zhu. “A Conditional Valuation Approach for Path-Dependent Instruments.” August 2005.

[2] Pykhtin M. “Modeling credit exposure for collateralized counterparties.” December 2009.

[3] Pykhtin M., and S. Zhu. “A Guide to Modeling Counterparty Credit Risk.” GARP, July/August 2007, issue 37.

[4] Pykhtin, Michael., and Dan Rosen. “Pricing Counterparty Risk at the Trade Level and CVA Allocations.” FEDS Working Paper No. 10., February 1, 2010.

Version History

Introduced in R2014a
