cbondbystt

Price convertible bonds from standard trinomial tree

Syntax

Price = cbondbystt(STTTree,CouponRate,Settle,Maturity,ConvRatio)

[Price,PriceTree] = cbondbystt(STTTree,CouponRate,Settle,Maturity,ConvRatio)

[Price,PriceTree,EquityTree,DebtTree] = cbondbystt(___,Name,Value)

Description

Price = cbondbystt(STTTree,CouponRate,Settle,Maturity,ConvRatio) prices convertible bonds using a standard trinomial (STT) tree using the Tsiveriotis and Fernandes method.

Note

Alternatively, you can use the ConvertibleBond instrument object to price a convertible bond. For more information, see Get Started with Workflows Using Object-Based Framework for Pricing Financial Instruments.

[Price,PriceTree] = cbondbystt(STTTree,CouponRate,Settle,Maturity,ConvRatio) prices convertible bonds using a standard trinomial (STT) tree using the Tsiveriotis and Fernandes method.

[Price,PriceTree,EquityTree,DebtTree] = cbondbystt(___,Name,Value) prices convertible bonds from a standard trinomial (STT) tree using a credit spread or incorporating the risk of bond default.

To incorporate the risk in the form of credit spread (Tsiveriotis-Fernandes method), use the optional name-value pair input argument Spread. To incorporate default risk into the algorithm, specify the optional name-value pair input arguments DefaultProbability and RecoveryRate.

Examples

Price a Convertible Bond Using a STTTree

Create a RateSpec.

StartDates = datetime(2015,1,1);
EndDates = datetime(2020,1,1);
Rates = 0.025;
Basis = 1;

RateSpec = intenvset('ValuationDate',StartDates,'StartDates',StartDates,...
'EndDates',EndDates,'Rates',Rates,'Compounding',-1,'Basis',Basis)

RateSpec = struct with fields:
           FinObj: 'RateSpec'
      Compounding: -1
             Disc: 0.8825
            Rates: 0.0250
         EndTimes: 5
       StartTimes: 0
         EndDates: 737791
       StartDates: 735965
    ValuationDate: 735965
            Basis: 1
     EndMonthRule: 1

Create a StockSpec.

AssetPrice = 80;
Sigma = 0.12;
StockSpec = stockspec(Sigma,AssetPrice)

StockSpec = struct with fields:
             FinObj: 'StockSpec'
              Sigma: 0.1200
         AssetPrice: 80
       DividendType: []
    DividendAmounts: 0
    ExDividendDates: []

Create a STTTree.

TimeSpec = stttimespec(StartDates, EndDates, 20);
STTTree = stttree(StockSpec, RateSpec, TimeSpec)

STTTree = struct with fields:
       FinObj: 'STStockTree'
    StockSpec: [1×1 struct]
     TimeSpec: [1×1 struct]
     RateSpec: [1×1 struct]
         tObs: [0 0.2500 0.5000 0.7500 1 1.2500 1.5000 1.7500 2 2.2500 2.5000 2.7500 3 3.2500 3.5000 3.7500 4 4.2500 4.5000 4.7500 5]
         dObs: [735965 736056 736147 736238 736330 736421 736512 736604 736695 736786 736878 736969 737060 737151 737243 737334 737425 737517 737608 737699 737791]
        STree: {1×21 cell}
        Probs: {1×20 cell}

Define the convertible bond. The convertible bond can be called starting on Jan 1, 2016 with a strike price of 95.

CouponRate = 0.03;
Settle = datetime(2015,1,1);
Maturity = datetime(2018,4,1);
Period = 1;
CallStrike = 95;
CallExDates = [datetime(2016,1,1) ; datetime(2018,1,1)];
ConvRatio = 1;
Spread = 0.025;

Price the convertible bond using the standard trinomial tree model.

[Price,PriceTree,EqtTre,DbtTree] = cbondbystt(STTTree,CouponRate,Settle,Maturity,ConvRatio,...
'Period',Period,'Spread',Spread,'CallExDates',CallExDates,'CallStrike',CallStrike,'AmericanCall',1)

Price = 2×1

   91.8885
   90.6328

PriceTree = struct with fields:
    FinObj: 'TrinPriceTree'
     PTree: {1×21 cell}
      tObs: [0 0.2500 0.5000 0.7500 1 1.2500 1.5000 1.7500 2 2.2500 2.5000 2.7500 3 3.2500 3.5000 3.7500 4 4.2500 4.5000 4.7500 5]
      dObs: [735965 736056 736147 736238 736330 736421 736512 736604 736695 736786 736878 736969 737060 737151 737243 737334 737425 737517 737608 737699 737791]

EqtTre = struct with fields:
    FinObj: 'TrinPriceTree'
     PTree: {1×21 cell}
      tObs: [0 0.2500 0.5000 0.7500 1 1.2500 1.5000 1.7500 2 2.2500 2.5000 2.7500 3 3.2500 3.5000 3.7500 4 4.2500 4.5000 4.7500 5]
      dObs: [735965 736056 736147 736238 736330 736421 736512 736604 736695 736786 736878 736969 737060 737151 737243 737334 737425 737517 737608 737699 737791]

DbtTree = struct with fields:
    FinObj: 'TrinPriceTree'
     PTree: {1×21 cell}
      tObs: [0 0.2500 0.5000 0.7500 1 1.2500 1.5000 1.7500 2 2.2500 2.5000 2.7500 3 3.2500 3.5000 3.7500 4 4.2500 4.5000 4.7500 5]
      dObs: [735965 736056 736147 736238 736330 736421 736512 736604 736695 736786 736878 736969 737060 737151 737243 737334 737425 737517 737608 737699 737791]

Spread Effect Analysis for a Convertible Bond Using a STTTree

This example demonstrates the spread effect analysis of a 4% coupon convertible bond, callable at 110 at end of the second year, maturing in five years, with spreads of 0, 50, 100, and 150 BP.

Define the RateSpec.

StartDates = datetime(2015,4,1);
EndDates = datetime(2020,4,1);
Rates = 0.05;
Compounding = -1;
Basis = 1;
RateSpec = intenvset('StartDates',StartDates,'EndDates',EndDates,'Rates',Rates,...
'Compounding',Compounding,'Basis',Basis)

RateSpec = struct with fields:
           FinObj: 'RateSpec'
      Compounding: -1
             Disc: 0.7788
            Rates: 0.0500
         EndTimes: 5
       StartTimes: 0
         EndDates: 737882
       StartDates: 736055
    ValuationDate: 736055
            Basis: 1
     EndMonthRule: 1

Define the convertible bond data.

Settle = datetime(2015,4,1);
Maturity = datetime(2020,4,1);
CouponRate = 0.04;
CallStrike = 110;
CallExDates = [datetime(2017,4,1)  datetime(2020,4,1)];
ConvRatio = 1;
AmericanCall = 1;
Sigma = 0.3;
Spreads = 0:0.005:0.015;
Prices = 40:10:140;
convprice = zeros(length(Prices),length(Spreads));

Define the TimeSpec for the Standard Trinomial Tree, create an STTTree using stttree, and price the convertible bond using cbondbystt.

NumSteps = 200;
TimeSpec = stttimespec(StartDates, EndDates, NumSteps);

for PriceIdx = 1:length(Prices)
    StockSpec = stockspec(Sigma, Prices(PriceIdx));
    STTT = stttree(StockSpec, RateSpec, TimeSpec);
    convprice(PriceIdx,:) = cbondbystt(STTT,  CouponRate, Settle, Maturity, ConvRatio,...
    'Spread', Spreads(:),'CallExDates', CallExDates, 'CallStrike', CallStrike,...
    'AmericanCall', AmericanCall);
end

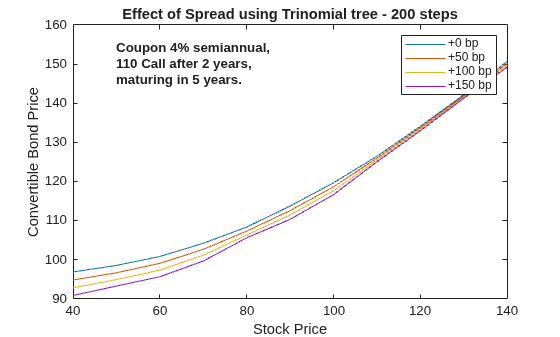

Plot the spread effect analysis for the convertible bond.

stock = repmat(Prices',1,length(Spreads));
plot(stock,convprice);
legend({'+0 bp'; '+50 bp'; '+100 bp'; '+150 bp'});
title ('Effect of Spread using Trinomial tree - 200 steps')
xlabel('Stock Price');
ylabel('Convertible Bond Price');
text(50, 150, ['Coupon 4% semiannual,', sprintf('\n'), ...
    '110 Call after 2 years,' sprintf('\n'), ...
    'maturing in 5 years.'],'fontweight','Bold')

Price a Convertible Bond Using an STT Tree and Incorporate Default Risk Using DefaultProbability and RecoveryRate

Create the interest-rate term structure RateSpec.

StartDates = datetime(2015,1,1);
EndDates = datetime(2020,1,1);
Rates = 0.025;
Basis = 1;

RateSpec = intenvset('ValuationDate',StartDates,'StartDates',StartDates,...
'EndDates',EndDates,'Rates',Rates,'Compounding',-1,'Basis',Basis)

RateSpec = struct with fields:
           FinObj: 'RateSpec'
      Compounding: -1
             Disc: 0.8825
            Rates: 0.0250
         EndTimes: 5
       StartTimes: 0
         EndDates: 737791
       StartDates: 735965
    ValuationDate: 735965
            Basis: 1
     EndMonthRule: 1

Create the StockSpec.

AssetPrice = 80;
Sigma = 0.12;
StockSpec = stockspec(Sigma,AssetPrice)

StockSpec = struct with fields:
             FinObj: 'StockSpec'
              Sigma: 0.1200
         AssetPrice: 80
       DividendType: []
    DividendAmounts: 0
    ExDividendDates: []

Create the STT tree for the equity.

TimeSpec = stttimespec(StartDates, EndDates, 20);
STTTree = stttree(StockSpec, RateSpec, TimeSpec)

STTTree = struct with fields:
       FinObj: 'STStockTree'
    StockSpec: [1×1 struct]
     TimeSpec: [1×1 struct]
     RateSpec: [1×1 struct]
         tObs: [0 0.2500 0.5000 0.7500 1 1.2500 1.5000 1.7500 2 2.2500 2.5000 2.7500 3 3.2500 3.5000 3.7500 4 4.2500 4.5000 4.7500 5]
         dObs: [735965 736056 736147 736238 736330 736421 736512 736604 736695 736786 736878 736969 737060 737151 737243 737334 737425 737517 737608 737699 737791]
        STree: {1×21 cell}
        Probs: {1×20 cell}

Define and price the convertible bond using the optional DefaultProbability and RecoveryRate arguments.

CouponRate = 0.03;
Settle = datetime(2015,1,1);
Maturity = datetime(2018,4,1);
Period = 1;
CallStrike = 95;
CallExDates = [datetime(2016,1,1) datetime(2018,1,1)];
ConvRatio = 1;
DefaultProbability = .30;
RecoveryRate = .82;

[Price,PriceTree,EqtTre,DbtTree] = cbondbystt(STTTree,CouponRate,Settle,Maturity,ConvRatio,...
'Period',Period,'CallExDates',CallExDates,'CallStrike',CallStrike,'AmericanCall',1,...
'DefaultProbability',DefaultProbability,'RecoveryRate',RecoveryRate)

Price =
80

PriceTree = struct with fields:
    FinObj: 'TrinPriceTree'
     PTree: {1×21 cell}
      tObs: [0 0.2500 0.5000 0.7500 1 1.2500 1.5000 1.7500 2 2.2500 2.5000 2.7500 3 3.2500 3.5000 3.7500 4 4.2500 4.5000 4.7500 5]
      dObs: [735965 736056 736147 736238 736330 736421 736512 736604 736695 736786 736878 736969 737060 737151 737243 737334 737425 737517 737608 737699 737791]

EqtTre = struct with fields:
    FinObj: 'TrinPriceTree'
     PTree: {1×21 cell}
      tObs: [0 0.2500 0.5000 0.7500 1 1.2500 1.5000 1.7500 2 2.2500 2.5000 2.7500 3 3.2500 3.5000 3.7500 4 4.2500 4.5000 4.7500 5]
      dObs: [735965 736056 736147 736238 736330 736421 736512 736604 736695 736786 736878 736969 737060 737151 737243 737334 737425 737517 737608 737699 737791]

DbtTree = struct with fields:
    FinObj: 'TrinPriceTree'
     PTree: {1×21 cell}
      tObs: [0 0.2500 0.5000 0.7500 1 1.2500 1.5000 1.7500 2 2.2500 2.5000 2.7500 3 3.2500 3.5000 3.7500 4 4.2500 4.5000 4.7500 5]
      dObs: [735965 736056 736147 736238 736330 736421 736512 736604 736695 736786 736878 736969 737060 737151 737243 737334 737425 737517 737608 737699 737791]

Input Arguments

STTTree — Stock tree structure for standard trinomial tree

structure

Stock tree structure for a standard trinomial tree, specified by using stttree.

Data Types: struct

CouponRate — Bond coupon rate

positive decimal value

Bond coupon rate, specified as an NINST-by-1 decimal annual rate or NINST-by-1 cell array, where each element is a NumDates-by-2 cell array. The first column of the NumDates-by-2 cell array is dates and the second column is associated rates. The date indicates the last day that the coupon rate is valid.

Data Types: double | cell

Settle — Settlement date

datetime array | string array | date character vector

Settlement date, specified as an NINST-by-1 vector using a datetime array, string array, or date character vectors.

Note

The Settle date for every convertible bond is set to the ValuationDate of the standard trinomial (STT) stock tree. The bond argument, Settle, is ignored.

To support existing code, cbondbystt also accepts serial date numbers as inputs, but they are not recommended.

Maturity — Maturity date

datetime array | string array | date character vector

Maturity date, specified as an NINST-by-1 vector using a datetime array, string array, or date character vectors.

To support existing code, cbondbystt also accepts serial date numbers as inputs, but they are not recommended.

ConvRatio — Number of shares convertible to one bond

nonnegative number

Number of shares convertible to one bond, specified as an NINST-by-1 with a nonnegative number.

Data Types: double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: [Price,PriceTree,EquityTree,DebtTree] = cbondbystt(STTTree,CouponRate,Settle,Maturity,ConvRatio,'Spread',Spread,'CallExDates',CallExDates,'CallStrike',CallStrike,'AmericanCall',1)

Spread — Number of basis points over the reference rate

0 (default) | vector

Number of basis points over the reference rate, specified as the comma-separated pair consisting of 'Spread' and a NINST-by-1 vector. For example, if the reference rate is 2% and spread is 4%, then the Spread value in basis points would be 0.04.

Note

To incorporate the risk in the form of credit spread (Tsiveriotis-Fernandes method), use the optional input argument Spread. To incorporate default risk into the algorithm, specify the optional input arguments DefaultProbability and RecoveryRate. Do not use Spread with DefaultProbability and RecoveryRate.

Data Types: double

Period — Coupons per year

2 per year (default) | vector

Coupons per year, specified as the comma-separated pair consisting of 'Period' and a NINST-by-1 vector.

Data Types: double

IssueDate — Bond issue date

datetime array | string array | date character vector

Bond issue date, specified as the comma-separated pair consisting of 'IssueDate' and a NINST-by-1 vector using a datetime array, string array, or date character vectors.

To support existing code, cbondbystt also accepts serial date numbers as inputs, but they are not recommended.

FirstCouponDate — Irregular first coupon date

datetime array | string array | date character vector

Irregular first coupon date, specified as the comma-separated pair consisting of 'FirstCouponDate' and a NINST-by-1 vector using a datetime array, string array, or date character vectors.

To support existing code, cbondbystt also accepts serial date numbers as inputs, but they are not recommended.

LastCouponDate — Irregular last coupon date

datetime array | string array | date character vector

Irregular last coupon date, specified as the comma-separated pair consisting of 'LastCouponDate' and a NINST-by-1 vector using a datetime array, string array, or date character vectors.

To support existing code, cbondbystt also accepts serial date numbers as inputs, but they are not recommended.

Face — Face value

100 (default) | nonnegative value | cell array of nonnegative values

Face value, specified as the comma-separated pair consisting of 'Face' and a NINST-by-1 vector of nonnegative face values or a NINST-by-1 cell array, where each element is a NumDates-by-2 cell array. The first column of the NumDates-by-2 cell array is dates and the second column is the associated face value. The date indicates the last day that the face value is valid.

Data Types: cell | double

CallStrike — Call strike price for European, Bermuda, or American option

nonnegative integer | vector of nonnegative integers

Call strike price for European, Bermuda, or American option, specified as the comma-separated pair consisting of 'CallStrike' and one of the following values:

• For a European call option — NINST-by-1 vector of nonnegative integers

• For a Bermuda call option — NINST-by-NSTRIKES matrix of call strike price values, where each row is the schedule for one call option. If a call option has fewer than NSTRIKES exercise opportunities, the end of the row is padded with NaNs.

• For an American call option — NINST-by-1 vector of strike price values for each option.

Data Types: double

CallExDates — Call exercise date for European, Bermuda, or American option

datetime array | string array | date character vector

Call exercise date for European, Bermuda, or American option, specified as the comma-separated pair consisting of 'CallExDates' and a datetime array, string array, or date character vectors for one of the following values:

• For a European option — NINST-by-1 vector of date character vectors.

• For a Bermuda option — NINST-by-NSTRIKES matrix of exercise dates, where each row is the schedule for one option. For a European option, there is only one CallExDate on the option expiry date.

• For an American option — NINST-by-1 or NINST-by-2 matrix of exercise date boundaries. For each instrument, the call option can be exercised on any tree date between or including the pair of dates on that row. If CallExDates is NINST-by-1, the option can be exercised between the ValuationDate of the STT stock tree and the single listed CallExDate.

To support existing code, cbondbystt also accepts serial date numbers as inputs, but they are not recommended.

AmericanCall — Call option type indicator

0 if AmericanCall is NaN or not entered (default) | positive integer [0,1] | vector of positive integers [0,1]

Call option type, specified as the comma-separated pair consisting of 'AmericanCall' and a NINST-by-1 vector of positive integer flags with values 0 or 1.

• For a European or Bermuda option — AmericanCall is 0 for each European or Bermuda option.

• For an American option — AmericanCall is 1 for each American option. The AmericanCall argument is required to invoke American exercise rules.

Data Types: double

PutStrike — Put strike values for European, Bermuda, or American option

positive integer | vector of positive integers

Put strike values for European, Bermuda, or American option, specified as the comma-separated pair consisting of 'PutStrike' and one of the following values:

• For a European put option — NINST-by-1 vector of nonnegative integers.

• For a Bermuda put option — NINST-by-NSTRIKES matrix of strike price values where each row is the schedule for one option. If a put option has fewer than NSTRIKES exercise opportunities, the end of the row is padded with NaNs.

• For an American put option — NINST-by-1 vector of strike price values for each option.

Data Types: double

PutExDates — Put exercise date for European, Bermuda, or American option

datetime array | string array | date character vector

Put exercise date for European, Bermuda, or American option, specified as the comma-separated pair consisting of 'PutExDates' and a datetime array, string array, or date character vectors for one of the following values:

• For a European option — NINST-by-1 vector of date character vectors.

• For a Bermuda option — NINST-by-NSTRIKES matrix of exercise dates where each row is the schedule for one option. For a European option, there is only one PutExDate on the option expiry date.

• For an American option — NINST-by-1 or NINST-by-2 matrix of exercise date boundaries. For each instrument, the put option can be exercised on any tree date between or including the pair of dates on that row. If PutExDates is NINST-by-1, the put option can be exercised between the ValuationDate of the STT stock tree and the single listed PutExDate.

To support existing code, cbondbystt also accepts serial date numbers as inputs, but they are not recommended.

AmericanPut — Put option type indicator

0 if AmericanPut is NaN or not entered (default) | positive integer [0,1] | vector of positive integers [0,1]

Put option type, specified as the comma-separated pair consisting of 'AmericanPut' and a NINST-by-1 vector of positive integer flags with values 0 or 1.

• For a European or Bermuda option — AmericanPut is 0 for each European or Bermuda option.

• For an American option — AmericanPut is 1 for each American option. The AmericanPut argument is required to invoke American exercise rules.

Data Types: double

ConvDates — Convertible dates

MaturityDate (default) | datetime array | string array | date character vector

Convertible dates, specified as the comma-separated pair consisting of 'ConvDates' and a NINST-by-1 or NINST-by-2 vector using a datetime array, string array, or date character vectors. If ConvDates is not specified, the bond is always convertible until maturity.

To support existing code, cbondbystt also accepts serial date numbers as inputs, but they are not recommended.

For each instrument, the bond can be converted on any tree date between or including the pair of dates on that row.

If ConvDates is NINST-by-1, the bond can be converted between the ValuationDate of the standard trinomial (STT) stock tree and the single listed ConvDates.

DefaultProbability — Annual probability of default rate

0 (default) | nonnegative decimal

Annual probability of default rate, specified as the comma-separated pair consisting of 'DefaultProbability' and a NINST-by-1 nonnegative decimal value.

Note

To incorporate default risk into the algorithm, specify the optional input arguments DefaultProbability and RecoveryRate. To incorporate the risk in the form of credit spread (Tsiveriotis-Fernandes method), use the optional input argument Spread. Do not use DefaultProbability and RecoveryRate with Spread.

Data Types: double

RecoveryRate — Recovery rate

1 (default) | nonnegative decimal

Recovery rate, specified as the comma-separated pair consisting of 'RecoveryRate' and a NINST-by-1 nonnegative decimal value.

Note

To incorporate default risk into the algorithm, specify the optional input arguments DefaultProbability and RecoveryRate. To incorporate the risk in the form of credit spread (Tsiveriotis-Fernandes method), use the optional input argument Spread. Do not use DefaultProbability and RecoveryRate with Spread.

Data Types: double

Output Arguments

Price — Expected price at time 0

array

Expected price at time 0, returned as an NINST-by-1 array.

PriceTree — Structure with vector of convertible bond prices at each node

tree structure

Structure with a vector of convertible bond prices at each node, returned as a tree structure.

EquityTree — Structure with vector of convertible bond equity component at each node

tree structure

Structure with a vector of convertible bond equity components at each node, returned as a tree structure.

DebtTree — Structure with vector of convertible bond debt component at each node

tree structure

Structure with a vector of convertible bond debt components at each node, returned as a tree structure.

More About

Convertible Bond

A convertible bond is a type of hybrid security that combines features of both debt and equity; it is bond that can be converted into a predetermined number of shares of the issuing company's stock at the bondholder's discretion, usually at specific times during its life.

Upon call, the bondholder can either convert the bond or redeem at the call price. This option enables the issuer to control the price of the convertible bond and, if necessary, refinance the debt with a new cheaper one.

Callable Convertible

A convertible bond that is callable by the issuer. The issuer of the bond forces conversion, removing the advantage that conversion is at the discretion of the bondholder.

Upon call, the bondholder can either convert the bond or redeem at the call price. This option enables the issuer to control the price of the convertible bond and, if necessary, refinance the debt with a new cheaper bond.

Puttable Convertible

A convertible bond with a put feature allows the bondholder to sell back the bond at a premium on a specific date.

This option protects the holder against rising interest rates by reducing the year to maturity.

Algorithms

cbondbycrr, cbondbyeqp, cbondbyitt, and cbondbystt return price information in the form of a price vector and a price tree. These functions implement the risk in the form of either a credit spread or incorporating the risk of bond default. To incorporate the risk in the form of credit spread (Tsiveriotis-Fernandes method), use the optional name-value pair argument Spread. To incorporate default risk into the algorithm, specify the optional name-value pair arguments DefaultProbability and RecoveryRate.

References

[1] Tsiveriotis, K., and C. Fernandes. “Valuing Convertible Bonds with Credit Risk.” Journal of Fixed Income. Vol 8, 1998, pp. 95–102.

[2] Hull, J. Options, Futures and Other Derivatives. Fourth Edition. Prentice Hall, 2000, pp. 646–649.

Version History

Introduced in R2015b

R2022b: Serial date numbers not recommended

Although cbondbystt supports serial date numbers, datetime values are recommended instead. The datetime data type provides flexible date and time formats, storage out to nanosecond precision, and properties to account for time zones and daylight saving time.

To convert serial date numbers or text to datetime values, use the datetime function. For example:

t = datetime(738427.656845093,"ConvertFrom","datenum");
y = year(t)

y =

        2021

There are no plans to remove support for serial date number inputs.
