Interpret surrogateoptplot

The surrogateoptplot plot function provides a good deal of information about the surrogate optimization steps.

Minimize Bounded Function

For example, consider the plot of the steps surrogateopt takes on the test function rastriginsfcn, which is available when you run this example. This function has a global minimum value of 0 at the point [0,0].

Create a surface plot of rastriginsfcn.

ezsurf(@(x,y)rastriginsfcn([x(:),y(:)]));

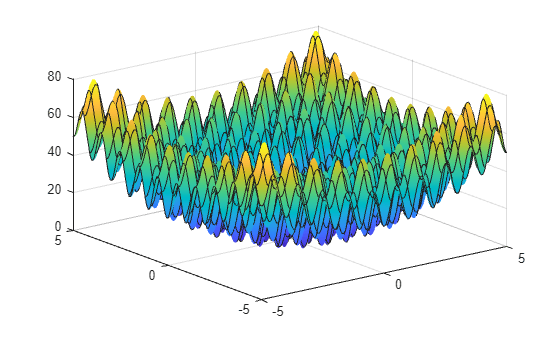

Figure contains an axes object. The axes object with title r a s t r i g i n s f c n ( [ x ( : ) , y ( : ) ] ), xlabel x, ylabel y contains an object of type surface.

Plot Minimization Process

By giving asymmetric bounds, you encourage surrogateopt to search away from the global minimum. Set asymmetric bounds of [-3,-3] and [9,10]. Set options to use the surrogateoptplot plot function, and then call surrogateopt.

lb = [-3,-3];
ub = [9,10];
options = optimoptions('surrogateopt','PlotFcn','surrogateoptplot');
rng(100)
[x,fval] = surrogateopt(@rastriginsfcn,lb,ub,options);

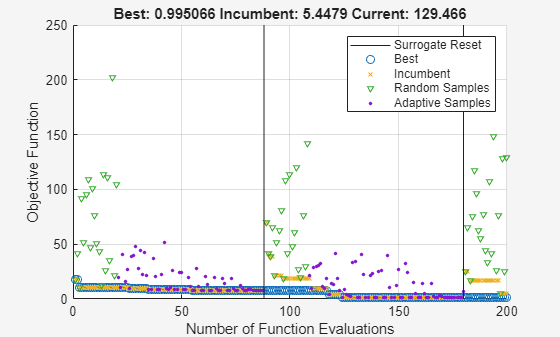

Figure Optimization Plot Function contains an axes object. The axes object with title Best: 3.98013 Incumbent: 16.5598 Current: 55.4645, xlabel Number of Function Evaluations, ylabel Objective Function contains 6 objects of type line. One or more of the lines displays its values using only markers These objects represent Best, Incumbent, Random Samples, Adaptive Samples, Surrogate Reset.

surrogateopt stopped because it exceeded the function evaluation limit set by
'options.MaxFunctionEvaluations'.

Interpret Plot

Begin interpreting the plot from its left side. For details of the algorithm steps, see Surrogate Optimization Algorithm.

  • The first points are colored triangles, indicating quasirandom samples of the function within the problem bounds. These points, labeled "Random Samples" in the legend, come from the Construct Surrogate phase.

  • Next are dots indicating the adaptive points, the points created in the Search for Minimum phase. These points are labeled "Adaptive Samples" in the legend.

  • The circles (overlapping to look like a thick line) represent the best (lowest) objective function value found. These points are labeled "Best" in the legend. Shortly after evaluation number 30, surrogateopt is stuck in a local minimum with an objective function value near 8. Zoom in to see this behavior more clearly.

xlim([20 100])
ylim([0 15])

Figure Optimization Plot Function contains an axes object. The axes object with title Best: 3.98013 Incumbent: 16.5598 Current: 55.4645, xlabel Number of Function Evaluations, ylabel Objective Function contains 6 objects of type line. One or more of the lines displays its values using only markers These objects represent Best, Incumbent, Random Samples, Adaptive Samples, Surrogate Reset.

  • Before evaluation number 120, a vertical line indicates a surrogate reset. At this point, the algorithm returns to the Construct Surrogate phase.

  • The colored x points represent the incumbent, which are the best points found since the previous surrogate reset.

  • Near evaluation number 150, the incumbent improves on the previous best point by attaining a value of about 4. Zoom in to see this behavior more clearly.

xlim([140 200])
ylim([0 6])

Figure Optimization Plot Function contains an axes object. The axes object with title Best: 3.98013 Incumbent: 16.5598 Current: 55.4645, xlabel Number of Function Evaluations, ylabel Objective Function contains 6 objects of type line. One or more of the lines displays its values using only markers These objects represent Best, Incumbent, Random Samples, Adaptive Samples, Surrogate Reset.

  • The solver has another surrogate reset after evaluation 190.

  • The optimization halts at evaluation number 200 because it is the default function evaluation limit for a 2-D problem.

Problem with Nonlinear and Integer Constraints

The surrogateoptplot display changes when you have nonlinear constraints. Impose the constraint that x(1) is integer-valued, and the nonlinear constraint that x2x12-2. For the function that implements this constraint, see rasfcn at the end of this example.

fun = @rasfcn;

Set integer constraints by setting intcon = 1, and run the minimization.

intcon = 1;
[x,fval] = surrogateopt(fun,lb,ub,intcon,options);

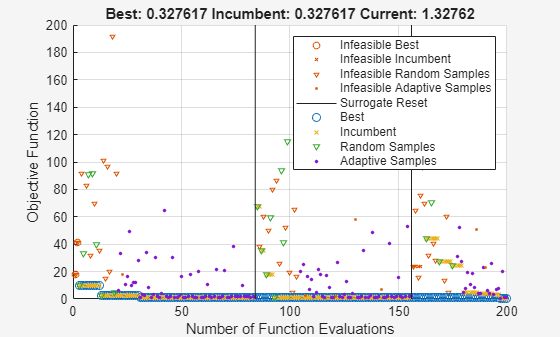

Figure Optimization Plot Function contains an axes object. The axes object with title Best: 9.16888e-07 Incumbent: 2.00429 Current: 2.0232, xlabel Number of Function Evaluations, ylabel Objective Function contains 9 objects of type line. One or more of the lines displays its values using only markers These objects represent Infeasible Best, Infeasible Incumbent, Infeasible Random Samples, Best, Incumbent, Random Samples, Adaptive Samples, Infeasible Adaptive Samples, Surrogate Reset.

surrogateopt stopped because it exceeded the function evaluation limit set by
'options.MaxFunctionEvaluations'.

The plot now shows colored markers where surrogateopt evaluates infeasible points. The final point is close to the true minimum point of [0,0].

disp(x)
   1.0e-04 *

         0    0.6798

The integer constraint likely helps surrogateopt find the true minimum by reducing the search space.

function F = rasfcn(x)
F.Fval = rastriginsfcn(x);
F.Ineq = x(1)^2 - 2 - x(2);
end
