getRegion

Read arbitrary region of blocked image

Since R2021a

Description

pixels = getRegion(bim,pixelStart,pixelEnd) returns all the pixels in the blocked image bim, in the region specified by pixelStart and pixelEnd.

example

pixels = getRegion(bim,pixelStart,pixelEnd,Level=L) gets the specified region from the L'th resolution level of the multiresolution blockedImage object, bim. pixelStart and pixelEnd are pixel subscripts at the L'th resolution level.

Examples

collapse all

Create a blocked image.

bim = blockedImage("tumor_091R.tif");

Specify the start and end points of a region in the blocked image at resolution level 1, and retrieve the data.

pixelStartLevel1 = [2100 1800];
pixelEndLevel1 = [2600 2300];
imLevel1 = getRegion(bim,pixelStartLevel1,pixelEndLevel1,Level=1);

Convert the start and end points of the region from pixel subscripts to world coordinates.

worldStartLevel1 = sub2world(bim,pixelStartLevel1,Level=1);
worldEndLevel1 = sub2world(bim,pixelEndLevel1,Level=1);

Convert the start and end points of the region from world coordinates to pixel subscripts at resolution level 3, and retrieve the data.

pixelStartLevel3 = world2sub(bim,worldStartLevel1,Level=3);
pixelEndLevel3 = world2sub(bim, worldEndLevel1,Level=3);
imLevel3 = getRegion(bim,pixelStartLevel3,pixelEndLevel3,Level=3);

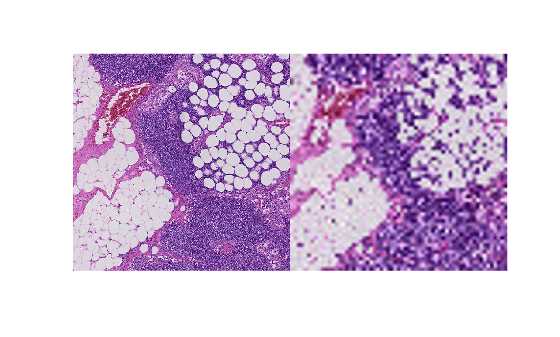

Display the region at both resolution levels.

montage({imLevel1,imLevel3});

Figure contains an axes object. The hidden axes object contains an object of type image.

Input Arguments

collapse all

Blocked image, specified as a blockedImage object.

Starting pixel of the region at the desired resolution level, specified as a 1-by-N vector of pixel subscripts in the form [row,column,...,subN]. N is equal to or less than the number of dimensions of the blocked image bim. If you specify pixel subscripts with a smaller dimensionality than the blocked image, then the getRegion function pads the remaining dimensions with the value 1.

Ending pixel of the region at the desired resolution level, specified as a 1-by-N vector of pixel subscripts in the form [row,column,...,subN]. N is equal to or less than the number of dimensions of the blocked image bim. If you specify pixel subscripts with a smaller dimensionality than the blocked image, then the getRegion function pads the remaining dimensions with the value 1.

Resolution level, specified as a positive integer that is less than or equal to the number of resolution levels of bim.

Output Arguments

collapse all

Pixels in specified region, returned as a numeric array.

Version History

Introduced in R2021a
