Create binary masks from circles

Since R2024a

## Syntax

``mask = circles2mask(centers,radii,maskSize)``

## Description

example

````mask = circles2mask(centers,radii,maskSize)` creates a binary mask image from circles specified by center coordinates `centers` and radius lengths `radii`. The `maskSize` argument specifies the dimensions of the output binary mask, `mask`.```

## Examples

collapse all

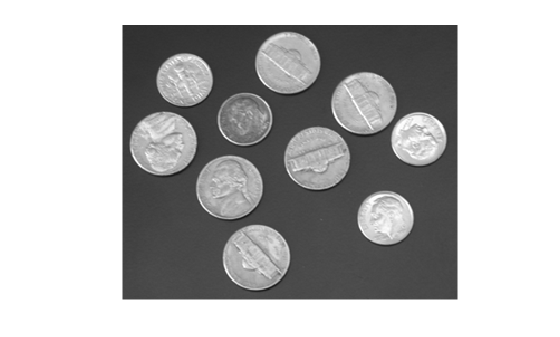

Load a grayscale image into the workspace and display it.

```A = imread("coins.png"); imshow(A)```

Find all the circles with radii in the range [20, 35] pixels.

`[centers,radii] = imfindcircles(A,[20 35],Sensitivity=0.9);`

Create a binary mask image that contains masks for the detected circles.

`mask = circles2mask(centers,radii,size(A));`

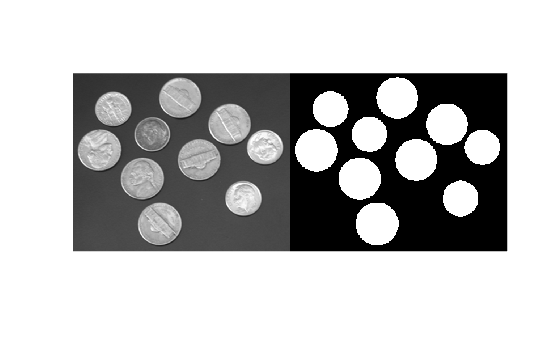

Display the original image and the mask image.

```figure montage({A,mask})```

## Input Arguments

collapse all

Circle centers, specified as a P-by-`2` matrix. Each row specifies the xy-coordinates of a circle center. You can specify this argument using the `centers` output of the `imfindcircles` function.

Data Types: `double`

Circle radii, specified as a vector. You can specify this argument using the `radii` output of the `imfindcircles` function.

Data Types: `double`

Mask image size, specified as a 2-element row vector of nonnegative integers of the form [height width]. This argument specifies the dimensions of the output binary mask, `mask`, in pixels.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64`

## Output Arguments

collapse all

Binary mask image, returned as a logical matrix of the size specified by the `maskSize` argument.

Data Types: `logical`

## Tips

• `circles2mask` can generate masks for circles with centers outside the bounds of the image.

## Version History

Introduced in R2024a
