fuseCameraToLidar

Fuse image information to lidar point cloud

Description

ptCloudOut = fuseCameraToLidar(I,ptCloudIn,intrinsics) fuses information from an image, I, to a specified point cloud, ptCloudIn, using the camera intrinsic parameters, intrinsics.

The function crops the fused point cloud, ptCloudOut, so that it contains only the points present in the field of view of the camera.

example

ptCloudOut = fuseCameraToLidar(I,ptCloudIn,intrinsics,tform) uses the camera to lidar rigid transformation tform to bring the point cloud into image frame before fusing it to the image information. Use this syntax when the point cloud data is not in the camera coordinate frame.

ptCloudOut = fuseCameraToLidar(___,nonoverlapcolor) returns a fused point cloud of the same size as the input point cloud. The function uses the specified color nonoverlapcolor for points that are outside the field of view of the camera in addition to any combination of input arguments from previous syntaxes.

[ptCloudOut,colormap] = fuseCameraToLidar(___) returns the colors of the points colormap of the fused point cloud.

[___,indices] = fuseCameraToLidar(___) returns linear indices of the points in the fused point cloud that are in the field of view of the camera in addition to any combination of arguments from previous syntaxes.

Examples

collapse all

Load a MAT-file containing ground truth data into the workspace. Extract the image and point cloud from data.

dataPath = fullfile(toolboxdir('lidar'),'lidardata','lcc','sampleColoredPtCloud.mat');
gt = load(dataPath);
im = gt.im;
ptCloud = gt.ptCloud;

Plot the extracted point cloud.

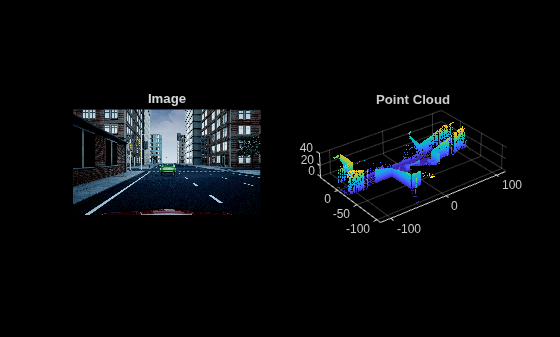

pcshow(ptCloud)
title('Original Point Cloud')

Extract the lidar to camera transformation matrix and camera intrinsic parameters from the ground truth data.

intrinsics = gt.camParams;
camToLidar = gt.tform;

Fuse the image to the point cloud.

ptCloudOut = fuseCameraToLidar(im,ptCloud,intrinsics,camToLidar);

Visualize the fused point cloud.

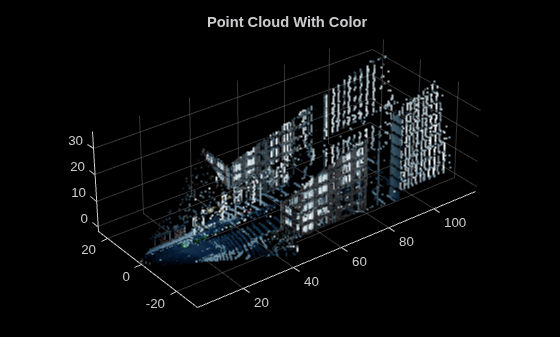

pcshow(ptCloudOut)
title('Colored Point Cloud')

Input Arguments

collapse all

Color or grayscale image, specified as an H-by-W-by-C array.

  • H — This specifies the height of the image.

  • W — This specifies the width of the image.

  • C — This specifies the number of color channels in the image. The function supports up to three color channels in an image.

Data Types: single | double | int16 | uint8 | uint16

Point cloud, specified as a pointCloud object.

Camera intrinsic parameters, specified as a cameraIntrinsics object.

Camera to lidar rigid transformation, specified as a rigid3d object.

Color specification for points outside the camera field of view, specified as a color name, short color name, or RGB triplet.

For a custom color, specify an RGB triplet. An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1]; for example, [0.4 0.6 0.7]. Alternatively, you can specify some common colors by name. This table lists the named color options and the equivalent RGB triplet values.

Color NameColor Short NameRGB TripletAppearance
'red''r'[1 0 0]

'green''g'[0 1 0]

'blue''b'[0 0 1]

'cyan' 'c' [0 1 1]

'magenta''m'[1 0 1]

'yellow''y'[1 1 0]

'black''k'[0 0 0]

'white''w'[1 1 1]

Data Types: single | double | char

Output Arguments

collapse all

Fused point cloud, returned as a pointCloud object.

Point cloud color map, returned as one of these options:

  • M-by-3 matrix — For unorganized point clouds

  • M-by-N-by-3 array — For organized point clouds

Each row of the matrix or channel of the array contains the RGB triplet for the corresponding point in the point cloud. The function returns them as real values in the range [0, 1]. If you do not specify a nonoverlapcolor argument, then the color value for points outside the field of view of the camera is [0 0 0] (black).

Data Types: uint8

Linear indices of the fused point cloud points in the camera field of view, returned as a vector of positive integers.

Data Types: single | double

Introduced in R2020b
