camheight

Set or query height of camera for geographic globe

Syntax

camheight(g,height)

camheight(g,"auto")

camheight(g,"manual")

heightOut = camheight(g)

heightOut = camheight(___)

Description

Set Height and Mode

camheight(g,height) sets the ellipsoidal height of the camera for the specified geographic globe.

camheight(g,"auto") sets the camera height to automatic mode, enabling the geographic globe to determine the height of the camera based on the plotted data. The mode defaults to automatic when you create a geographic globe. If you change the camera height using your mouse, then the mode switches to automatic.

camheight(g,"manual") sets the camera height to manual mode. When the hold state of the geographic globe is "on", manual mode specifies that the geographic globe preserve the height of the camera when the plotted data changes. If you change the camera height using the camheight function, then the mode switches to manual.

Query Height

heightOut = camheight(g) returns the ellipsoidal height of the camera.

heightOut = camheight(___) sets the height or mode and then returns the ellipsoidal height of the camera. You can return the camera height using any combination of input arguments from the previous syntaxes.

Examples

Change Camera Height

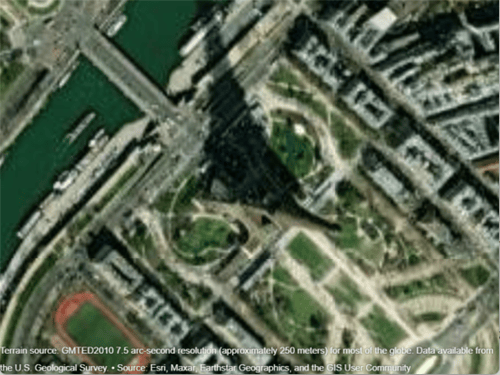

Create a geographic globe. Specify the latitude and longitude of the Eiffel Tower, and specify a height that is 700 meters above the WGS84 reference ellipsoid. Then, move the camera using the campos function.

uif = uifigure;
g = geoglobe(uif);

lat = 48.8584;
lon = 2.2945;
h = 700;
campos(g,lat,lon,h)

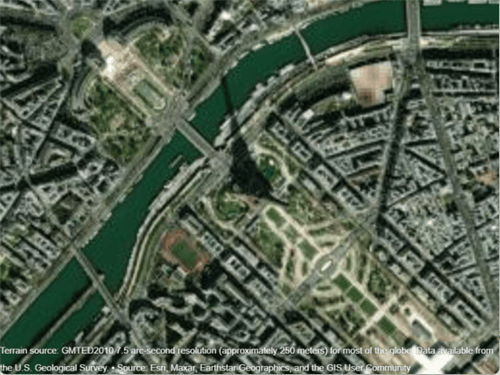

Change only the height of the camera by using the camheight function. Increase the camera height to 1500 meters above the WGS84 reference ellipsoid.

camheight(g,1500)

Animate Changes to Camera Height

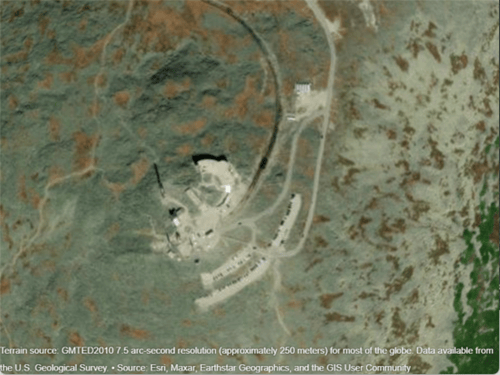

Create a geographic globe. Position the camera above Mount Washington by specifying a latitude, longitude, and ellipsoidal height.

uif = uifigure;
g = geoglobe(uif);

height0 = 2500;
campos(g,44.2706,-71.3025,height0)

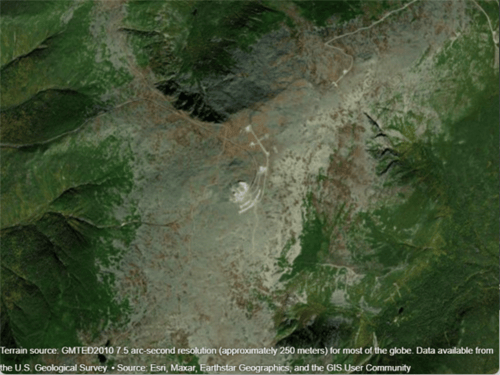

Animate the view by incrementally changing the camera height. As the camera height increases, the view zooms out.

for height = 2500:50:5000
    camheight(g,height)
    drawnow
end

Get Height of Camera

Get the height of the camera. Use this information to control the view of a different geographic globe or to automate navigation.

Create a geographic globe. Zoom in on an area around Spain using your mouse or gestures.

uif = uifigure;
g = geoglobe(uif);

Query the height of the camera and assign it to a variable.

outHeight = camheight(g)

outHeight =

   1.7702e+06

Use this value to control the camera height for a different geographic globe. For example, create a new geographic globe and programmatically set the camera height.

uif2 = uifigure;
g2 = geoglobe(uif2);
camheight(g2,outHeight)

Preserve Camera View

In many cases, the camera view of the geographic globe changes when you plot new data. You can preserve the camera view by setting the camera modes to "manual" and the hold state to "on".

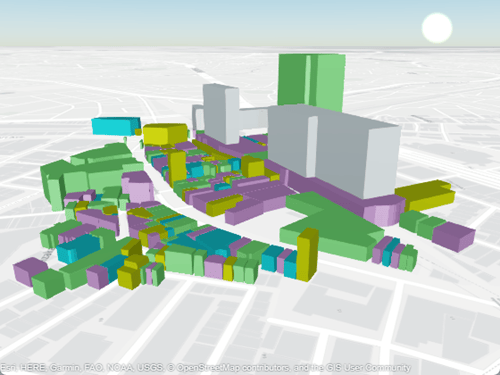

Read the buildings layer from an OpenStreetMap file [1] containing data for several city blocks in Shibuya, Tokyo, Japan. Display the buildings in a geographic globe with a road map and no terrain data.

GT = readgeotable("shibuya.osm",Layer="buildings");
addCustomBuildings("shibuya",GT)

uif = uifigure;
g = geoglobe(uif,Buildings="shibuya",Basemap="streets-light",Terrain="none");

Adjust the camera view by interacting with the globe.

Read track points from a GPX file into a geospatial table. Extract the latitude and longitude coordinates from the geospatial table, and specify a height value for each coordinate.

track = readgeotable("shibuya_track.gpx",Layer="track_points");
lat = track.Shape.Latitude;
lon = track.Shape.Longitude;
height = linspace(10,100,length(lat));

Set the camera modes to "manual" and the hold state to "on". Then, plot the data. Note that the camera position does not change.

campos(g,"manual")
camheight(g,"manual")
camheading(g,"manual")
campitch(g,"manual")
camroll(g,"manual")
hold(g,"on")

geoplot3(g,lat,lon,height,"-o",LineWidth=3)

[1] You can download OpenStreetMap files from https://www.openstreetmap.org, which provides access to crowd-sourced map data all over the world. The data is licensed under the Open Data Commons Open Database License (ODbL), https://opendatacommons.org/licenses/odbl/.

Convert Between Zoom Level and Camera Height

The strategies you use to programmatically zoom in and out of GeographicGlobe and GeographicAxes objects are different. For GeographicGlobe objects, you specify a camera height using the camheight function. For GeographicAxes objects, you specify a zoom level using the ZoomLevel property or specify latitude and longitude limits using the geolimits function. To create GeographicGlobe and GeographicAxes objects with similar map scales, approximate camera height and zoom level using the heightToZoomLevel and zoomLevelToHeight local functions (defined here).

You can verify the behavior of the zoomLevelToHeight local function by displaying GeographicAxes and GeographicGlobe objects using comparable magnification levels.

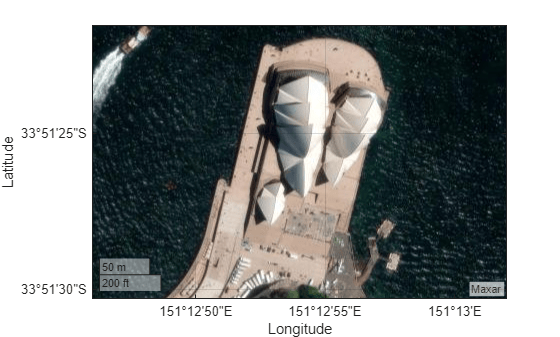

Specify the latitude and longitude of the Sydney Opera House. Create geographic axes with a basemap, map center, and zoom level that allows you to clearly see the building.

lat = -33.8572;
lon = 151.2150;
z = 17;
gx = geoaxes(Basemap="satellite",MapCenter=[lat lon],ZoomLevel=z);

Create a geographic globe. Position the camera above the Sydney Opera House using the campos function.

uif = uifigure;
g = geoglobe(uif);
campos(g,lat,lon)

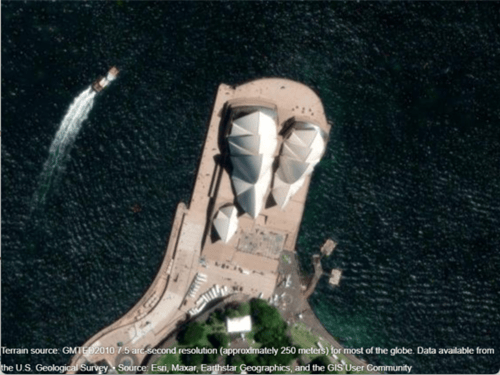

Calculate an approximate camera height from the zoom level using the zoomLevelToHeight local function. Then, set the camera height using the camheight function. Note that the geographic axes and geographic globe displays are comparable.

h = zoomLevelToHeight(z,lat);
camheight(g,h)

To verify the behavior of the heightToZoomLevel function, calculate an approximate zoom level from the camera height.

z2 = heightToZoomLevel(h,lat)

z2 =
17

Note that z and z2 are equal.

This code defines a local function called zoomLevelToHeight that approximates the camera height h for a GeographicGlobe object using the zoom level z and map center latitude lat of a GeographicAxes object.

function h = zoomLevelToHeight(z,lat)
    earthCircumference = 2*pi*6378137;
    h = (earthCircumference*cosd(lat)) / 2^(z-1);
end

This code defines a local function called heightToZoomLevel that approximates the zoom level z for a GeographicAxes object using the camera height h and latitude lat of a GeographicGlobe object.

function z = heightToZoomLevel(h,lat)
    earthCircumference = 2*pi*6378137;
    z = log2((earthCircumference*cosd(lat)) / h) + 1;
    z = max(0,z);
    z = min(19,z);
end

Input Arguments

g — Geographic globe

GeographicGlobe object

Geographic globe, specified as a GeographicGlobe object.¹

height — Ellipsoidal height of camera

15000000 (default) | numeric scalar

Ellipsoidal height of the camera, specified as a numeric scalar in meters. Geographic globe objects use the WGS84 reference ellipsoid. For more information about ellipsoidal height, see Find Ellipsoidal Height from Orthometric Height.

If you specify the height so that the camera is level with or below the terrain, then the camheight function sets the height to a value one meter above the terrain.

Version History

Introduced in R2020b
