pchip

Piecewise Cubic Hermite Interpolating Polynomial (PCHIP)

Syntax

p = pchip(x,y,xq)

pp = pchip(x,y)

Description

p = pchip(x,y,xq) returns a vector of interpolated values p corresponding to the query points in xq. The values of p are determined by shape-preserving piecewise cubic interpolation of x and y.

pp = pchip(x,y) returns a piecewise polynomial structure for use with ppval and the spline utility unmkpp.

Examples

Data Interpolation with spline, pchip, and makima

Compare the interpolation results produced by spline, pchip, and makima for two different data sets. These functions all perform different forms of piecewise cubic Hermite interpolation. Each function differs in how it computes the slopes of the interpolant, leading to different behaviors when the underlying data has flat areas or undulations.

Compare the interpolation results on sample data that connects flat regions. Create vectors of x values, function values at those points y, and query points xq. Compute interpolations at the query points using spline, pchip, and makima. Plot the interpolated function values at the query points for comparison.

x = -3:3;
y = [-1 -1 -1 0 1 1 1];
xq1 = -3:.01:3;
p = pchip(x,y,xq1);
s = spline(x,y,xq1);
m = makima(x,y,xq1);
plot(x,y,'o',xq1,p,'-',xq1,s,'-.',xq1,m,'--')
legend('Sample Points','pchip','spline','makima','Location','SouthEast')

In this case, pchip and makima have similar behavior in that they avoid overshoots and can accurately connect the flat regions.

Perform a second comparison using an oscillatory sample function.

x = 0:15;
y = besselj(1,x);
xq2 = 0:0.01:15;
p = pchip(x,y,xq2);
s = spline(x,y,xq2);
m = makima(x,y,xq2);
plot(x,y,'o',xq2,p,'-',xq2,s,'-.',xq2,m,'--')
legend('Sample Points','pchip','spline','makima')

When the underlying function is oscillatory, spline and makima capture the movement between points better than pchip, which is aggressively flattened near local extrema.

Interpolation with Piecewise Polynomial Structure

Create vectors for the x values and function values y, and then use pchip to construct a piecewise polynomial structure.

x = -5:5;
y = [1 1 1 1 0 0 1 2 2 2 2];
p = pchip(x,y);

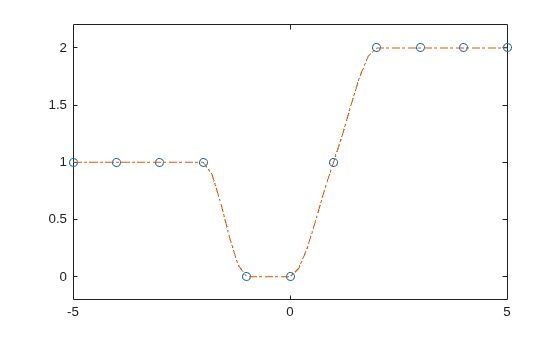

Use the structure with ppval to evaluate the interpolation at several query points. Plot the results.

xq = -5:0.2:5;
pp = ppval(p,xq);
plot(x,y,'o',xq,pp,'-.')
ylim([-0.2 2.2])

Input Arguments

x — Sample points

vector

Sample points, specified as a vector. The vector x specifies the points at which the data y is given. The elements of x must be unique.

Data Types: single | double

y — Function values at sample points

vector | matrix | array

Function values at sample points, specified as a numeric vector, matrix, or array. x and y must have the same length.

If y is a matrix or array, then the values in the last dimension, y(:,...,:,j), are taken as the values to match with x. In that case, the last dimension of y must be the same length as x.

Data Types: single | double

xq — Query points

scalar | vector | matrix | array

Query points, specified as a scalar, vector, matrix, or array. The points specified in xq are the x-coordinates for the interpolated function values yq computed by pchip.

Data Types: single | double

Output Arguments

p — Interpolated values at query points

scalar | vector | matrix | array

Interpolated values at query points, returned as a scalar, vector, matrix, or array. The size of p is related to the sizes of y and xq:

• If y is a vector, then p has the same size as xq.

• If y is an array of size Ny = size(y), then these conditions apply:

  • If xq is a scalar or vector, then size(p) returns [Ny(1:end-1) length(xq)].

  • If xq is an array, then size(p) returns [Ny(1:end-1) size(xq).

pp — Piecewise polynomial

structure

Piecewise polynomial, returned as a structure. Use this structure with the ppval function to evaluate the interpolating polynomials at one or more query points. The structure has these fields.

Field	Description
form	'pp' for piecewise polynomial
breaks	Vector of length L+1 with strictly increasing elements that represent the start and end of each of L intervals
coefs	L-by-k matrix with each row coefs(i,:) containing the local coefficients of an order k polynomial on the ith interval, [breaks(i),breaks(i+1)]
pieces	Number of pieces, L
order	Order of the polynomials
dim	Dimensionality of target

Since the polynomial coefficients in coefs are local coefficients for each interval, you must subtract the lower endpoint of the corresponding knot interval to use the coefficients in a conventional polynomial equation. In other words, for the coefficients [a,b,c,d] on the interval [x1,x2], the corresponding polynomial is

$$f\left(x\right)=a{\left(x-x_1\right)}^3+b{\left(x-x_1\right)}^2+c\left(x-x_1\right)+d.$$

More About

Shape-Preserving Piecewise Cubic Interpolation

pchip interpolates using a piecewise cubic polynomial $$P(x)$$ with these properties:

• On each subinterval $$x_k\le x\le x_{k+1}$$, the polynomial $$P(x)$$ is a cubic Hermite interpolating polynomial for the given data points with specified derivatives (slopes) at the interpolation points.

• $$P(x)$$ interpolates y, that is, $$P(x_j)=y_j$$, and the first derivative $$\frac{dP}{dx}$$ is continuous. The second derivative $$\frac{d^{2}P}{d{x}^2}$$ is probably not continuous so jumps at the $$x_j$$ are possible.

• The cubic interpolant $$P(x)$$ is shape preserving. The slopes at the $$x_j$$ are chosen in such a way that $$P(x)$$ preserves the shape of the data and respects monotonicity. Therefore, on intervals where the data is monotonic, so is $$P(x)$$, and at points where the data has a local extremum, so does $$P(x)$$.

Note

If y is a matrix, $$P(x)$$ satisfies these properties for each row of y.

Tips

• spline constructs $$S(x)$$ in almost the same way pchip constructs $$P(x)$$. However, spline chooses the slopes at the $$x_j$$ differently, namely to make even $$S^{″}(x)$$ continuous. This difference has several effects:

  • spline produces a smoother result, such that $$S^{″}(x)$$ is continuous.

  • spline produces a more accurate result if the data consists of values of a smooth function.

  • pchip has no overshoots and less oscillation if the data is not smooth.

  • pchip is less expensive to set up.

  • The two are equally expensive to evaluate.

References

[1] Fritsch, F. N. and R. E. Carlson. "Monotone Piecewise Cubic Interpolation." SIAM Journal on Numerical Analysis. Vol. 17, 1980, pp.238–246.

[2] Kahaner, David, Cleve Moler, Stephen Nash. Numerical Methods and Software. Upper Saddle River, NJ: Prentice Hall, 1988.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• Input x must be strictly increasing.

• Code generation does not remove y entries with NaN values.

• If you generate code for the pp = pchip(x,y) syntax, then you cannot input pp to the ppval function in MATLAB^®. To create a MATLAB pp structure from a pp structure created by the code generator:

  • In code generation, use unmkpp to return the piecewise polynomial details to MATLAB.

  • In MATLAB, use mkpp to create the pp structure.

Thread-Based Environment

Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

The pchip function fully supports GPU arrays. To run the function on a GPU, specify the input data as a gpuArray (Parallel Computing Toolbox). For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Distributed Arrays

Partition large arrays across the combined memory of your cluster using Parallel Computing Toolbox™.

Usage notes and limitations:

• The pchip(x,y) syntax is not supported for distributed arrays.

For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).

Version History

Introduced before R2006a
