vertexAttachments

Triangles or tetrahedra attached to vertex

collapse all in page

Syntax

V = vertexAttachments(TR)
V = vertexAttachments(TR,ID)

Description

V = vertexAttachments(TR) returns the IDs of the triangles or tetrahedra attached to every vertex in the triangulation TR. A triangle or tetrahedron ID is the row number of the corresponding triangle or tetrahedron in the property TR.ConnectivityList.

The output v is an m-by-1 cell array where m is the number of vertices in TR. Each element of V contains the IDs of the attached triangles or tetrahedra corresponding to that vertex. The vertices can have a different number of attached triangles or tetrahedra depending on where they are located in the triangulation.

V = vertexAttachments(TR,ID) returns the IDs of the triangles or tetrahedra attached to the vertices specified in ID. The vertex IDs in ID are the row numbers of the corresponding vertices in the property TR.Points.

example

Examples

collapse all

Open Live Script

Locate and plot the attachments to a specified vertex in a 2-D Delaunay triangulation.

Create a Delaunay triangulation from a set of 2-D points.

rng default;
x = rand([20,1]);
y = rand([20,1]);
TR = delaunayTriangulation(x,y);

Find the triangles attached to the 5th vertex.

V = vertexAttachments(TR,5);
V{:}
ans = 1×4

     8     9    11    12

Plot the triangulation, and plot the triangles attached to vertex 5 in red.

triplot(TR)
hold on
triplot(TR(V{:},:),x,y,'Color','r')

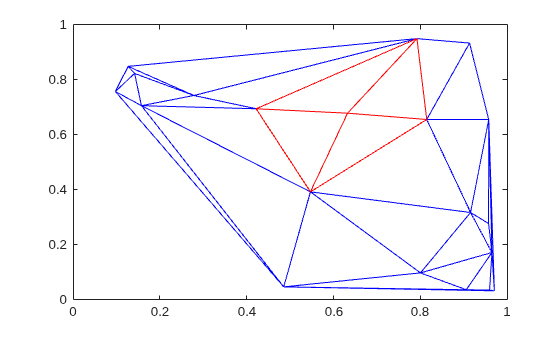

Figure contains an axes object. The axes object contains 2 objects of type line.

Input Arguments

collapse all

Triangulation representation, specified as a scalar triangulation or delaunayTriangulation object.

Data Types: triangulation | delaunayTriangulation

Vertex IDs of the query points, returned as a column vector. A vertex ID is the row number of the corresponding vertex in the Points property.

Data Types: double

Extended Capabilities

expand all

Thread-Based Environment
Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

Version History

Introduced in R2013a
