yscale

Set or query y-axis scale (linear or logarithmic)

Since R2023b

Syntax

yscale(scale)

yscale(ax,___)

ys = yscale

Description

yscale(scale) sets the scale of the y-axis to be linear or logarithmic in the current axes. Specify scale as "linear" or "log". You can also omit the parentheses and quotation marks when using this syntax. For example, yscale log is equivalent to yscale("log").

yscale(ax,___) sets the scale for the specified axes object. This syntax is useful when you are working with multiple plots, either in a tiled chart layout or in different figures.

ys = yscale returns the current y-axis scale value as 'linear' or 'log'.

Examples

Change y-Axis to Logarithmic Scale

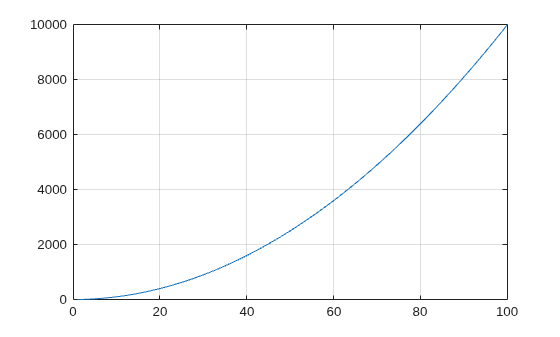

Create vectors x and y and plot them. Then display the axes grid.

x = 1:100;
y = x.^2;
plot(x,y)
grid on

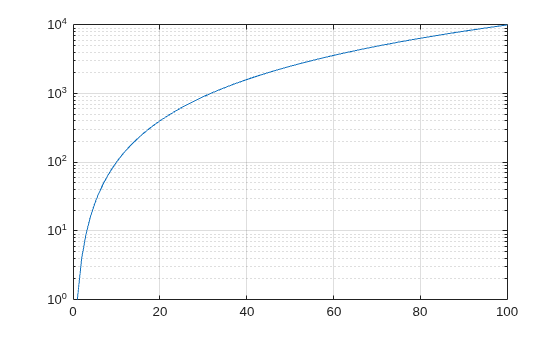

Change the scale of the y-axis to logarithmic.

yscale log

Change y-Axis Scale in Tile Chart Layout

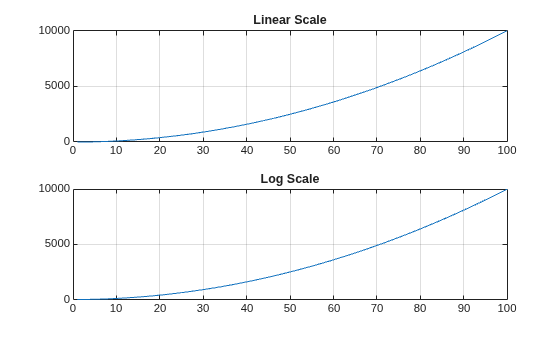

Create the same line plot twice in a tiled chart layout. This code calls the nexttile function to create a tiled chart layout with one axes object. The second call to nexttile creates and returns the second axes object.

x = 1:100;
y = x.^2;

nexttile;
plot(x,y)
grid on
title("Linear Scale")

ax2 = nexttile;
plot(x,y)
grid on
title("Log Scale")

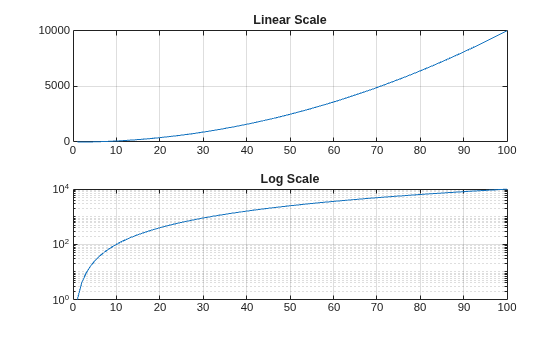

Change the y-axis scale of the bottom plot to logarithmic.

yscale(ax2,"log")

Input Arguments

scale — Scale value

"linear" | "log"

Scale value, specified as "linear" or "log". When you change the scale, MATLAB^® changes the YScale property of the axes object to the value you specify.

Note

When you specify a logarithmic scale, the axes might exclude coordinates in some cases:

• If the coordinates include positive and negative values, only the positive values are displayed.

• If the coordinates are all negative, all of the values are displayed on a logarithmic scale with the appropriate sign.

• Zero values are not displayed.

ax — Target axes

Axes object

Target Axes object. If you do not specify the target axes, yscale uses the current axes.

Version History

Introduced in R2023b
