# mpcsimopt

MPC simulation options

## Description

When simulating an implicit or explicit MPC controller using the `sim`

function, you can specify additional simulation options using an
`mpcsimopt`

object.

## Creation

### Syntax

### Description

creates a default set
of options for specifying additional parameters for simulating an MPC controller with the
`options`

= mpcsimopt;`sim`

function. To specify nondefault values for the properties, use dot
notation.

## Properties

`PlantInitialState`

— Simulation plant model initial state

`[]`

(default) | vector

Simulation plant model initial state, specified as a vector with length equal to the
number states in the plant model used for the simulation. To use the default nominal
state of the simulation plant model, set `PlantInitialState`

to
`[]`

.

If you do not specify the `Model`

option, then the plant model
used for the simulation is the internal plant model from the controller. In this case,
the default initial controller state is equal to
`mpcobj.Model.Nominal.X`

.

If you specify the `Model`

option, then the plant model used for
simulation is `Model.Plant`

. In this case, the default initial
controller state is equal to `Model.Nominal.X`

.

`ControllerInitialState`

— MPC controller initial condition

`[]`

(default) | `mpcstate`

object

MPC controller initial condition, specified as an `mpcstate`

object. Setting `ControllerInitialState = []`

is equivalent to setting ```
ControllerInitialState =
mpcstate(mpcobj)
```

.

`UnmeasuredDisturbance`

— Unmeasured disturbance signal

`[]`

(default) | array

Unmeasured disturbance signal for simulating disturbances occurring at the
unmeasured disturbance inputs of the simulation plant model, specified as an array with
*N _{ud}* columns and up to

*N*rows, where

_{t}*N*is the number of unmeasured disturbances, and

_{ud}*N*is the number of simulation steps. If you specify fewer than

_{t}*N*rows, then the values in the final row of the array are extended to the end of the simulation.

_{t}`InputNoise`

— Manipulated variable noise signal

`[]`

(default) | array

Manipulated variable noise signal for simulating load disturbances occurring at the
manipulated variable inputs to the simulation plant model, specified as an array with
*N _{mv}* columns and up to

*N*rows, where

_{t}*N*is the number of manipulated variables, and

_{mv}*N*is the number of simulation steps. If you specify fewer than

_{t}*N*rows, then the values in the final row of the array are extended to the end of the simulation.

_{t}`OutputNoise`

— Measured output noise signal

`[]`

(default) | array

Measured output noise signal for simulating disturbances occurring at the measured
output of the simulation plant model, specified as an array with
*N _{y}* columns and up to

*N*rows, where

_{t}*N*is the number of measured outputs, and

_{y}*N*is the number of simulation steps. If you specify fewer than

_{t}*N*rows, then the values in the final row of the array are extended to the end of the simulation.

_{t}`RefLookAhead`

— Option to use reference previewing

`'off'`

(default) | `'on'`

Option to use reference previewing during simulation, specified as one of the following:

`'off'`

— Do not use reference previewing.`'on'`

— Use reference previewing.

When simulating an explicit MPC controller, you must set
`RefLookAhead`

to `'off'`

.

`MDLookAhead`

— Option to use measured disturbance previewing

`'off'`

(default) | `'on'`

Option to use measured disturbance previewing during simulation, specified as one of the following:

`'off'`

— Do not use measured disturbance previewing.`'on'`

— Use measured disturbance previewing.

When simulating an explicit MPC controller, you must set
`MDLookAhead`

to `'off'`

.

`Constraints`

— Enable constraints

`'on'`

(default) | `'off'`

Option to enable constraints during simulation, specified as one of the following:

`'on'`

— Use the constraints defined in the controller during simulation.`'off'`

— Simulate the controller without any constraints.

`Model`

— Plant model to use for simulation

`[]`

(default) | LTI system object | structure

Plant model to use for simulation, specified as one of the following:

`[]`

— Simulate the controller against its internal plant model (`mpcobj.Model`

). In this case, there is no plant-model mismatch.LTI system object — Simulate the controller against the specified LTI plant. The specified plant must have the same input and output group configuration as

`mpcobj.Model.Plant`

. To set this configuration, use`setmpcsignals`

.Structure with fields

`Plant`

and`Nominal`

— Simulate the controller using the specified plant (`Plant`

) and nominal conditions (`Nominal`

).

`Model`

sets the actual plant (not the internal prediction model
of the controller) to be used in closed-loop or open-loop simulations. To test the
controller robustness against a plant model mismatch, use this option to specify a plant
that differs from the controller internal plant model.

If you do not specify nominal conditions, `Model.Nominal.U`

and
`Model.Nominal.Y`

are inherited from
`mpcobj.Model.Nominal`

. `Model.Nominal.X`

and
`Model.Nominal.DX`

are only inherited if both plants are state-space
objects with the same state dimension.

To specify the initial state of this simulation plant model, use the
`PlantInitialState`

option.

`StatusBar`

— Display the simulation status bar

`'off'`

(default) | `'on'`

Option to display the simulation status bar, specified as one of the following:

`'off'`

— Do not display the status bar.`'on'`

— Display the status bar.

`MVSignal`

— Sequence of manipulated variables

`[]`

(default) | array

Sequence of manipulated variables to use during open-loop simulation, specified as
an array with *N _{mv}* columns and up to

*N*rows, where

_{t}*N*is the number of manipulated variables, and

_{mv}*N*is the number of simulation steps. If you specify fewer than

_{t}*N*rows, then the values in the final row of the array are extended to the end of the simulation. The specified manipulated variable signals must include any manipulated variable offsets. If

_{t}`MVSignal`

is an empty array (default) then a value of 0 is assumed
for all the manipulated variables.`MVSignal`

is ignored if `OpenLoop`

is set to
`'off'`

.

`OpenLoop`

— Run an open-loop simulation

`'off'`

(default) | `'on'`

Option to run an open-loop simulation, specified as one of the following:

`'off'`

— Perform a closed-loop simulation.`'on'`

— Perform an open-loop simulation.

`ShowOutputNoise`

— Include output noise in measured output plots

`'off'`

(default) | `'on'`

Option to include output noise in measured output plots, specified as one of the following:

`'off'`

— Do not include output noise in plots`'on'`

— Include output noise in plots

Enable this option to view the output disturbance rejection behavior of the controller during closed-loop simulations.

## Object Functions

`sim` | Simulate an MPC controller in closed loop with a linear plant |

## Examples

### Simulate MPC Control with Plant Model Mismatch

Simulate the MPC control of a multi-input, multi-output (MIMO) system with a mismatch between the predicted and actual plant models. The system has two manipulated variables, two unmeasured disturbances, and two measured outputs.

Define the predicted plant model.

p1 = tf(1,[1 2 1])*[1 1;0 1]; plantPredict = ss([p1 p1]); plantPredict.InputName = {'mv1','mv2','umd3','umd4'};

Specify the MPC signal types.

plantPredict = setmpcsignals(plantPredict,'MV',[1 2],'UD',[3 4]);

Create the MPC controller.

mpcobj = mpc(plantPredict,1,40,2);

-->The "Weights.ManipulatedVariables" property is empty. Assuming default 0.00000. -->The "Weights.ManipulatedVariablesRate" property is empty. Assuming default 0.10000. -->The "Weights.OutputVariables" property is empty. Assuming default 1.00000.

Define the unmeasured input disturbance model used by the controller.

distModel = eye(2,2)*ss(-0.5,1,1,0); mpcobj.Model.Disturbance = distModel;

Define an actual plant model which differs from the predicted model and has unforeseen unmeasured disturbance inputs.

p2 = tf(1.5,[0.1 1 2 1])*[1 1;0 1]; plantActual = ss([p2 p2 tf(1,[1 1])*[0;1]]); plantActual = setmpcsignals(plantActual,'MV',[1 2],'UD',[3 4 5]);

Configure the unmeasured disturbance and output reference trajectories.

dist = ones(1,3); refs = [1 2];

Create and configure a simulation option set.

options = mpcsimopt(mpcobj); options.UnmeasuredDisturbance = dist; options.Model = plantActual;

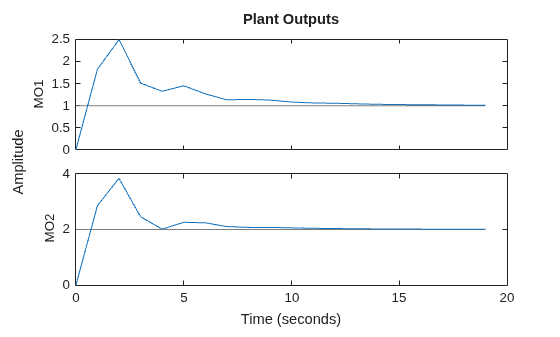

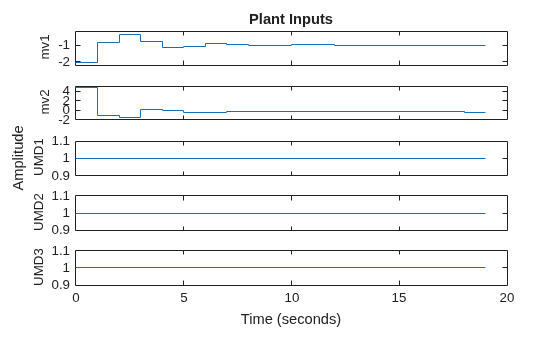

Simulate the system.

sim(mpcobj,20,refs,options)

-->Converting model to discrete time. -->Assuming output disturbance added to measured output channel #1 is integrated white noise. -->Assuming output disturbance added to measured output channel #2 is integrated white noise. -->The "Model.Noise" property is empty. Assuming white noise on each measured output. -->Converting model to discrete time. -->The "PredictionHorizon" property is empty. Assuming default 10. -->The "ControlHorizon" property is empty. Assuming default 2. -->The "Weights.ManipulatedVariables" property is empty. Assuming default 0.00000. -->The "Weights.ManipulatedVariablesRate" property is empty. Assuming default 0.10000. -->The "Weights.OutputVariables" property is empty. Assuming default 1.00000.

## Version History

**Introduced before R2006a**
