findThermalBC

Find thermal boundary conditions assigned to a geometric region

Syntax

tbca = findThermalBC(thermalmodel.BoundaryConditions,RegionType,RegionID)

Description

example

tbca = findThermalBC(thermalmodel.BoundaryConditions,RegionType,RegionID) returns the thermal boundary condition assigned to the specified region.

Examples

collapse all

Create a thermal model and include a square geometry.

thermalmodel = createpde('thermal');
geometryFromEdges(thermalmodel,@squareg);

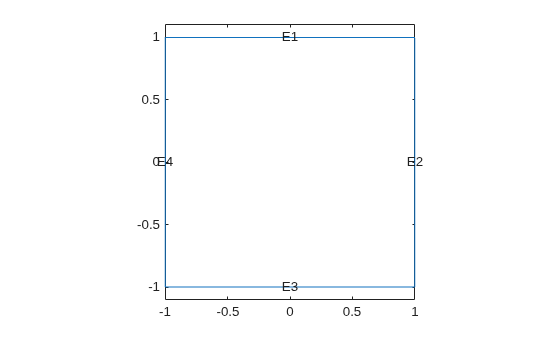

pdegplot(thermalmodel,'EdgeLabels','on')
ylim([-1.1 1.1])
axis equal

Apply temperature boundary conditions on edges 1 and 3 of the square.

thermalBC(thermalmodel,'Edge',[1 3],'Temperature',100);

Apply a heat flux boundary condition on edge 4 of the square.

thermalBC(thermalmodel,'Edge',4,'HeatFlux',20);

Check the boundary condition specification on edge 1.

tbcaEdge1 = findThermalBC(thermalmodel.BoundaryConditions,'Edge',1)
tbcaEdge1 =
  ThermalBC with properties:

               RegionType: 'Edge'
                 RegionID: [1 3]
              Temperature: 100
                 HeatFlux: []
    ConvectionCoefficient: []
               Emissivity: []
       AmbientTemperature: []
               Vectorized: 'off'

Check the boundary condition specifications on edges 3 and 4.

tbca = findThermalBC(thermalmodel.BoundaryConditions,'Edge',[3:4]);
tbcaEdge3 = tbca(1)
tbcaEdge3 =
  ThermalBC with properties:

               RegionType: 'Edge'
                 RegionID: [1 3]
              Temperature: 100
                 HeatFlux: []
    ConvectionCoefficient: []
               Emissivity: []
       AmbientTemperature: []
               Vectorized: 'off'

tbcaEdge4 = tbca(2)
tbcaEdge4 =
  ThermalBC with properties:

               RegionType: 'Edge'
                 RegionID: 4
              Temperature: []
                 HeatFlux: 20
    ConvectionCoefficient: []
               Emissivity: []
       AmbientTemperature: []
               Vectorized: 'off'

Create a thermal model and include a block geometry.

thermalmodel = createpde('thermal','transient');
gm = importGeometry(thermalmodel,'Block.stl');
pdegplot(thermalmodel,'FaceLabels','on','FaceAlpha',0.5)

Apply temperature boundary condition on faces 1 and 3 of a block.

thermalBC(thermalmodel,'Face',1,'Temperature',100);
thermalBC(thermalmodel,'Face',3,'Temperature',300);

Apply convection boundary condition on faces 5 and 6 of a block.

thermalBC(thermalmodel,'Face',[5,6],...
                       'ConvectionCoefficient',5,...
                       'AmbientTemperature',27);

Check the boundary condition specification on faces 1 and 3.

tbca = findThermalBC(thermalmodel.BoundaryConditions,'Face',[1,3]);
tbcaFace1 = tbca(1)
tbcaFace1 =
  ThermalBC with properties:

               RegionType: 'Face'
                 RegionID: 1
              Temperature: 100
                 HeatFlux: []
    ConvectionCoefficient: []
               Emissivity: []
       AmbientTemperature: []
               Vectorized: 'off'

tbcaFace3 = tbca(2)
tbcaFace3 =
  ThermalBC with properties:

               RegionType: 'Face'
                 RegionID: 3
              Temperature: 300
                 HeatFlux: []
    ConvectionCoefficient: []
               Emissivity: []
       AmbientTemperature: []
               Vectorized: 'off'

Check the boundary condition specifications on faces 5 and 6.

tbcaFace5 = findThermalBC(thermalmodel.BoundaryConditions,'Face',5)
tbcaFace5 =
  ThermalBC with properties:

               RegionType: 'Face'
                 RegionID: [5 6]
              Temperature: []
                 HeatFlux: []
    ConvectionCoefficient: 5
               Emissivity: []
       AmbientTemperature: 27
               Vectorized: 'off'

tbcaFace6 = findThermalBC(thermalmodel.BoundaryConditions,'Face',6)
tbcaFace6 =
  ThermalBC with properties:

               RegionType: 'Face'
                 RegionID: [5 6]
              Temperature: []
                 HeatFlux: []
    ConvectionCoefficient: 5
               Emissivity: []
       AmbientTemperature: 27
               Vectorized: 'off'

Input Arguments

collapse all

Boundary conditions of a thermal model, specified as the BoundaryConditions property of a ThermalModel object.

Example: thermalmodel.BoundaryConditions

Geometric region type, specified as 'Face' for 3-D geometry or 'Edge' for 2-D geometry.

Data Types: char | string

Geometric region ID, specified as a vector of positive integers. Find the region IDs using pdegplot with the 'FaceLabels' (3-D) or 'EdgeLabels' (2-D) value set to 'on'.

Data Types: double

Output Arguments

collapse all

Thermal boundary condition for a particular region, returned as a ThermalBC object.

Introduced in R2017a
