matrixProfile

Compute matrix profile of time series

Since R2024b

Syntax

MP = matrixProfile(X,len)

[MP,MPI]=matrixProfile(X,len)

[___] = matrixProfile(___,Name=Value)

matrixProfile(___)

Description

Return Matrix Profile

MP = matrixProfile(X,len) returns the matrix profile of the time series X, which is the vector of minimum z-normalized Euclidean distances between each subsequence of X with length len and its closest neighbor.

You can use the function findDiscord to find the locations of the top discords in MP.

[MP,MPI]=matrixProfile(X,len) also returns the matrix profile index vector MPI for the location MPI(k) of the nearest neighbor to the subsequence.

[___] = matrixProfile(___,Name=Value) specifies options using one or more name-value arguments in addition to the arguments in previous syntaxes. For example, to use parallel processing, set UseParallel to true.

Plot Matrix Profile

matrixProfile(___) plots an interactive plot of the matrix profile. You can use this syntax with any of the previous input-argument combinations.

Examples

Create Matrix Profile and Find Top Discords

Load the data, which consists of T1. T1 is a timetable containing armature current measurements of a degrading DC motor.

load matrix_profile_data T1

Specify the time series variable X to T1.MotorCurrent and the query segment length to 100.

X = T1.MotorCurrent;
len = 100;

Calculate the matrix profile.

[MP,MPI] = matrixProfile(X,len);

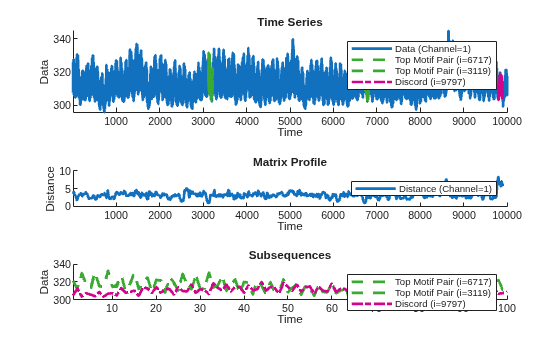

Plot the matrix profile.

matrixProfile(X,len)

The profile shows the two top motif pairs, or segments that agree best with their neighbors, occur at locations 6717 and 3119. These locations are consistent with minima in the matrix profile plot.

The profile also shows a single discord at location 9797. This subsequence visibly deviates from the motif subsequences for much of its length.

Use findDiscord to find more discords, which are the locations of segments with the furthest distances from their neighbors. Show the top four locations.

locs = findDiscord(MP,MPI);
toplocs = locs(1:4)

toplocs = 4×1

        9797
        9800
        9802
        9792

Show the corresponding distances.

topdist = MP(toplocs)

topdist = 4×1

    8.3894
    8.2062
    8.1517
    7.9777

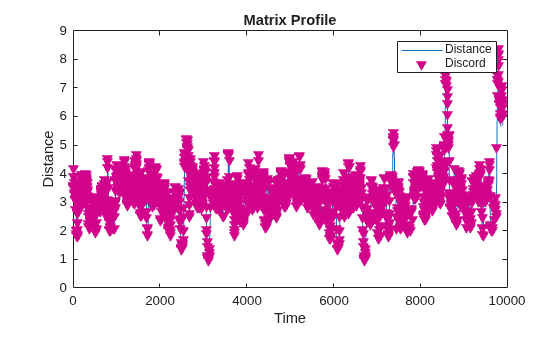

Plot the findDiscord results.

findDiscord(MP,MPI)

Discords that are close to each other are probably part of the same anomaly. You need to identify only one discord for such a segment. Improve the segment separation and limit the number of discords to 10.

findDiscord(MP,MPI,MinSeparation=40,MaxNumDiscords=10)

The highest discord is at location 9797, as the original matrix profile showed. The plot also shows significant discords in other locations.

Input Arguments

X — Time series to evaluate

numeric vector

Time series to evaluate, specified as a numeric vector of length N. X must not have any missing data.

len — Length of query subsequence

integer

Length of query subsequence, specified as an integer. len must be less than time series length N.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: MP = matrixProfile(X,len,UseParallel=true) results in parallel processing.

ExclusionZoneLength — Length of exclusion zone

ceil(len/2) (default) | integer

Length of exclusion zone on either side of the query starting position loc, specified as the number of data points to exclude. This argument prevents false matches with the query subsequence itself.

EndPoints — Options for controlling output lengths

"discard" (default) | "fill"

Option for controlling output length when X ends with a partial subsequence, specified as one of the following options:

• "discard" — Truncate the length of the output vectors MP and I to N-len+1, where N is the length of X.

• "fill" — Extend the length of distance and index to N by padding MP with len-1 NaNs. The software sets the last len-1 elements of the vector I to the sequence N-len+2:N.

MaxIteration — Maximum number of iterations

N-len+1 (default) | integer

Maximum number of iterations for computing an upper bound on MP, specified as an integer. The default value is N-len+1, which runs the algorithm to completion.

UseParallel — Option to use parallel pool

false (default) | true

Option to use the parallel pool to speed up computations, specified as false, which results in using serial computation, or true for parallel computation.

Output Arguments

MP — Matrix profile

numeric vector

Matrix profile containing the z-normalized distances between each subsequence of length len in the time series X and the best-matching len-length neighbor of that subsequence, returned as a numeric vector.

The length of MP is equal to len–1 when X ends with a complete subsequence with respect to len. When X ends with a partial subsequence, the value of EndPoints further modifies the length of MP by truncation or fill.

The ExclusionZoneLength value prevents false matches with the query subsequence itself.

You can use the function findDiscord to find the locations of the top discords in MP.

MPI — Starting indices

integer vector

Starting indices for subsequences X(MPI(k):MPI(k)+len-1) of X that best match the query subsequence of x(loc:loc+len-1), returned as an integer vector.

References

[1] Yeh, Chin-Chia Michael, et al. “Matrix Profile I: All Pairs Similarity Joins for Time Series: A Unifying View That Includes Motifs, Discords and Shapelets.” 2016 IEEE 16th International Conference on Data Mining (ICDM), IEEE, 2016, pp. 1317–22. DOI.org (Crossref), https://doi.org/10.1109/ICDM.2016.0179.

Version History

Introduced in R2024b
