# radareqsearchsnr

Range-dependent SNR using search radar equation

## Description

computes the available SNR with additional options specified by one or more name-value
arguments. For example, `snr`

= radareqsearchsnr(___,`Name,Value`

)`'Loss',6`

specifies system losses as 6
decibels.

## Examples

### Compute SNR Using Search Radar Equation

Compute the available signal-to-noise ratio (SNR) for a search radar at a target range of `1000`

kilometers with a power-aperture product of $3\times {10}^{6}$ $\mathrm{W}\cdot {\mathrm{m}}^{2}$. Assume the search time is `10`

seconds, the RCS of the target is `–10`

dBsm, the system noise temperature is `487`

Kelvin, and the total system loss is `6`

decibels.

range = 1000e3; pap = 3e6; tsearch = 10; rcs = db2pow(-10); ts = 487; loss = 6;

The radar surveys a region of space with azimuths in the range [0,30] degrees and elevations in the range [0,45] degrees. Find the solid angular search volume in steradians by using the `solidangle`

function.

az = [0;30]; el = [0;45]; omega = solidangle(az,el);

Calculate the available SNR.

snr = radareqsearchsnr(range,pap,omega,tsearch,'RCS',rcs,'Ts',ts,'Loss',loss)

snr = 13.8182

### Plot SNR as Function of Range

Plot the available signal-to-noise ratio (SNR) as a function of the range for a search radar with a power-aperture product of $2.5\times {10}^{6}$ $\mathrm{W}\cdot {\mathrm{m}}^{2}$. Incorporate path loss due to absorption into the calculation of the SNR.

Specify the ranges as 1000 linearly-spaced values in the interval [0,1000] kilometers. Assume the search volume is `1.5`

steradians and the search time is `12`

seconds.

range = linspace(1,1000e3,1000); pap = 2.5e6; omega = 1.5; tsearch = 12;

Find the path loss due to atmospheric gaseous absorption by using the `gaspl`

function. Specify the radar operating frequency as `10`

GHz, the temperature as `15`

degrees Celsius, the dry air pressure as `1013`

hPa, and the water vapour density as `7.5`

$\mathrm{g}/{\mathrm{m}}^{3}$.

freq = 10e9; temp = 15; pressure = 1013e2; density = 7.5; loss = gaspl(range,freq,temp,pressure,density);

Compute the available SNR. By default, the target RCS is 1 square meter.

`snr = radareqsearchsnr(range,pap,omega,tsearch,'AtmosphericLoss',loss);`

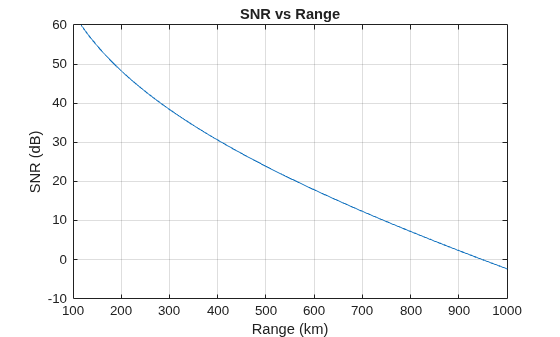

Plot the SNR as a function of the range. Before plotting, convert the range from meters to kilometers.

plot(range*0.001,snr) grid on ylim([-10 60]) xlabel('Range (km)') ylabel('SNR (dB)') title('SNR vs Range')

## Input Arguments

`range`

— Range

scalar | length-*J* vector of positive values

Range, specified as a scalar or a length-*J* vector of positive values, where
*J* is the number of range samples. Units are in meters.

**Example: **`1e5`

**Data Types: **`double`

`pap`

— Power-aperture product

scalar | length-*J* vector of positive values

Power-aperture product, specified as a scalar or a length-*J* vector of
positive values. Units are in
W·m^{2}.

**Example: **`3e6`

**Data Types: **`double`

`omega`

— Solid angular search volume

scalar

Solid angular search volume, specified as a scalar. Units are in steradians.

Given the elevation and azimuth ranges of a region, you can find the solid angular search
volume by using the `solidangle`

function.

**Example: **`0.3702`

**Data Types: **`double`

`tsearch`

— Search time

scalar

Search time, specified as a scalar. Units are in seconds.

**Example: **`10`

**Data Types: **`double`

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **`'Ts',487`

specifies the system noise temperature as 487
Kelvin

`RCS`

— Radar cross section

`1`

(default) | positive scalar | length-*J* vector of positive values

Radar cross section of the target, specified as a positive scalar or
length-*J* vector of positive values. The
`radareqsearchsnr`

function assumes the target RCS is nonfluctuating
(Swerling case 0). Units are in square meters.

**Data Types: **`double`

`Ts`

— System noise temperature

`290`

(default) | positive scalar

System noise temperature, specified as a positive scalar. Units are in Kelvin.

**Data Types: **`double`

`Loss`

— System losses

`0`

(default) | scalar | length-*J* vector of real
values

System losses, specified as a scalar or a
length-*J* vector of real values. Units are in decibels.

**Example: **`1`

**Data Types: **`double`

`AtmosphericLoss`

— One-way atmospheric absorption loss

`0`

(default) | scalar | length-*J* vector of real values

One-way atmospheric absorption loss, specified as a scalar or a length-*J*
vector of real values. Units are in decibels.

**Example: **`[10,20]`

**Data Types: **`double`

`PropagationFactor`

— One-way propagation factor

`0`

(default) | scalar | length-*J* vector of real values

One-way propagation factor for the transmit and receive paths, specified as a scalar or a
length-*J* vector of real values. Units are in decibels.

**Example: **`[10,20]`

**Data Types: **`double`

`CustomFactor`

— Custom loss factors

`0`

(default) | scalar | length-*J* vector of real values

Custom loss factors, specified as a scalar or a length-*J* vector of
real values. These factors contribute to the reduction of the received signal energy and
can include range-dependent sensitivity time control (STC), eclipsing, and beam-dwell
factors. Units are in decibels.

**Example: **`[10,20]`

**Data Types: **`double`

## Output Arguments

`snr`

— Available signal-to-noise ratio

scalar | length-*J* column vector of real values

Available signal-to-noise ratio, returned as a scalar or a
length-*J* column vector of real values, where *J*
is the number of range samples. Units are in decibels.

## More About

### SNR Form of Search Radar Equation

The signal-to-noise ratio form of the search radar equation,
*SNR*, is:

$$SNR=\frac{{P}_{av}A{t}_{s}\sigma {F}^{2}{F}_{c}}{4\pi k{T}_{s}{R}^{4}{L}_{a}^{2}L\Omega}$$

where the terms of the equation are:

*P*— Average transmit power in watts_{av}*A*— Antenna effective aperture in square meters*t*— Search time in seconds_{s}*σ*— Nonfluctuating target radar cross section in square meters*F*— One-way propagation factor for the transmit and receive paths*F*— Combined range-dependent factors that contribute to the reduction of the received signal energy_{c}*k*— Boltzmann constant*T*— System temperature in Kelvin_{s}*R*— Target range in meters. The equation assumes the radar is monostatic.*L*— One-way atmospheric absorption loss_{a}*L*— Combined system losses*Ω*— Search volume in steradians

You can derive this equation based on assumptions about the SNR form of the standard
radar equation. For more information about the SNR form of the standard radar equation, see
the `radareqsnr`

function. These are the assumptions:

The radar is monostatic, so that

*R*=*R*=_{t}*R*, where_{r}*R*is the range from the transmitter to the target and_{t}*R*is the range from the receiver to the target._{r}The search time is the time the transmit beam takes to scan the entire search volume. As a result, you can express the search time,

*t*, in terms of the search volume,_{s}*Ω*, the area of the beam in steradians,*Ω*, and the dwell time in seconds,_{t}*T*._{d}$${t}_{s}={T}_{d}\frac{\Omega}{{\Omega}_{t}}$$

The transmit antenna beam has an ideal rectangular shape. As a result, you can express the transmit antenna gain,

*G*, in terms of the angular area of the antenna beam._{t}$${G}_{t}=\frac{4\pi}{{\Omega}_{t}}$$

The receive antenna is ideal. This means you can express the receive antenna gain,

*G*, in terms of the antenna effective aperture,_{r}*A*, and the radar operating frequency wavelength,*λ*.$${G}_{r}=\frac{4\pi A}{{\lambda}^{2}}$$

## References

[1] Barton, David Knox.
*Radar Equations for Modern Radar*. Artech House Radar Series. Boston,
Mass: Artech House, 2013.

[2] Skolnik, Merrill I.
*Introduction to Radar Systems*. Third edition. McGraw-Hill Electrical
Engineering Series. Boston, Mass. Burr Ridge, IL Dubuque, IA: McGraw Hill, 2001.

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

## Version History

**Introduced in R2021a**
