# Create Agent Using Deep Network Designer and Train Using Image Observations

This example shows how to create a deep Q-learning network (DQN) agent that can swing up and balance a pendulum modeled in MATLAB®. In this example, you create the DQN agent using Deep Network Designer. For more information on DQN agents, see Deep Q-Network Agents.

### Pendulum Swing-Up with Image MATLAB Environment

The reinforcement learning environment for this example is a simple frictionless pendulum that initially hangs in a downward position. The training goal is to make the pendulum stand upright without falling over using minimal control effort.

For this environment:

• The upward balanced pendulum position is 0 radians, and the downward hanging position is pi radians.

• The torque action signal from the agent to the environment is from –2 to 2 N·m.

• The observations from the environment are the simplified grayscale image of the pendulum and the pendulum angle derivative.

• The reward ${\mathit{r}}_{\mathit{t}}$, provided at every time step, is

${\mathit{r}}_{\mathit{t}}=-\left({{\theta }_{\mathit{t}}}^{2}+0.1{\stackrel{˙}{{\theta }_{\mathit{t}}}}^{2}+0.001{\mathit{u}}_{\mathit{t}-1}^{2}\right)$

Here:

• ${\theta }_{\mathit{t}}$ is the angle of displacement from the upright position.

• $\stackrel{˙}{{\theta }_{\mathit{t}}}$ is the derivative of the displacement angle.

• ${\mathit{u}}_{\mathit{t}-1}$ is the control effort from the previous time step.

For more information on this model, see Train DDPG Agent to Swing Up and Balance Pendulum with Image Observation.

### Create Environment Interface

Create a predefined environment interface for the pendulum.

env = rlPredefinedEnv('SimplePendulumWithImage-Discrete');

The interface has two observations. The first observation, named "pendImage", is a 50-by-50 grayscale image.

obsInfo = getObservationInfo(env);
obsInfo(1)
ans =
rlNumericSpec with properties:

LowerLimit: 0
UpperLimit: 1
Name: "pendImage"
Description: [0x0 string]
Dimension: [50 50]
DataType: "double"

The second observation, named "angularRate", is the angular velocity of the pendulum.

obsInfo(2)
ans =
rlNumericSpec with properties:

LowerLimit: -Inf
UpperLimit: Inf
Name: "angularRate"
Description: [0x0 string]
Dimension: [1 1]
DataType: "double"

The interface has a discrete action space where the agent can apply one of five possible torque values to the pendulum: –2, –1, 0, 1, or 2 N·m.

actInfo = getActionInfo(env)
actInfo =
rlFiniteSetSpec with properties:

Elements: [-2 -1 0 1 2]
Name: "torque"
Description: [0x0 string]
Dimension: [1 1]
DataType: "double"

Fix the random generator seed for reproducibility.

rng(0)

### Construct Critic Network Using Deep Network Designer

A DQN agent approximates the long-term reward, given observations and actions, using a critic value function representation. For this environment, the critic is a deep neural network with three inputs (two observations and one action), and one output. For more information on creating a deep neural network value function representation, see Create Policy and Value Function Representations.

You can construct the critic network interactively by using the Deep Network Designer app. To do so, you first create separate input paths for each observation and action. These paths learn lower-level features from their respective inputs. You then create a common output path that combines the outputs from the input paths.

Create Image Observation Path

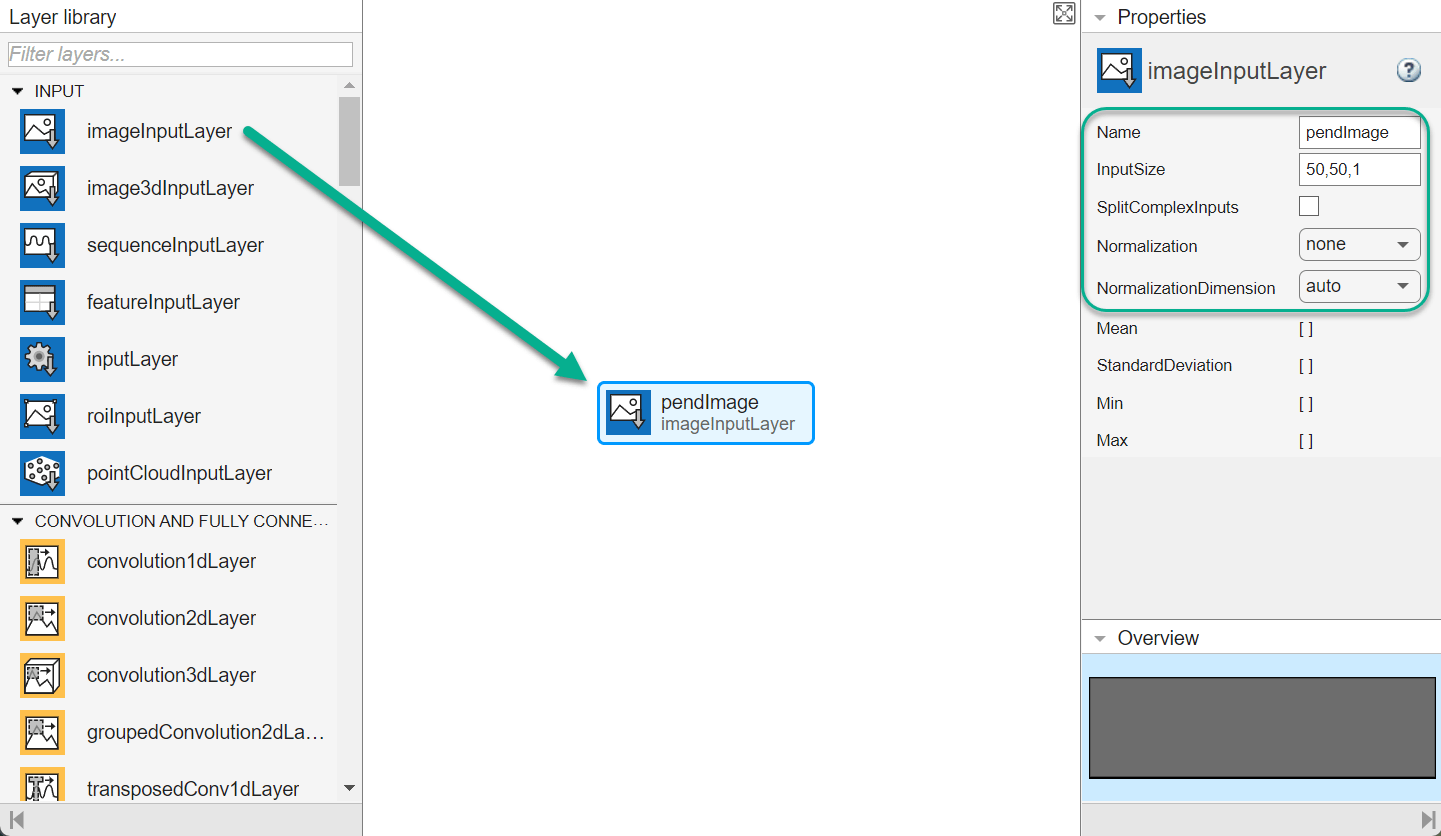

To create the image observation path, first drag an imageInputLayer from the Layer Library pane to the canvas. Set the layer InputSize to 50,50,1 for the image observation, and set Normalization to none.

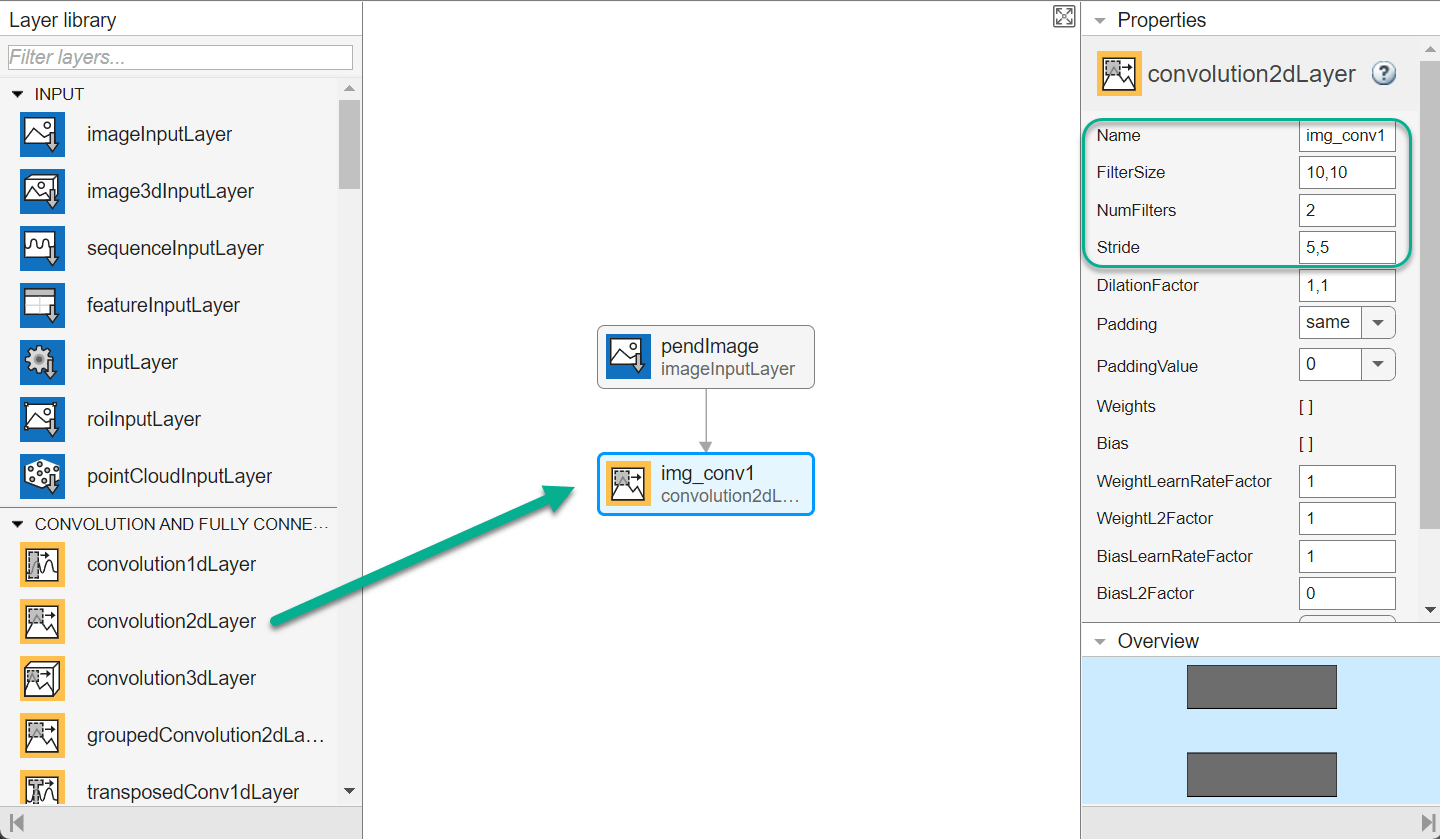

Second, drag a convolution2DLayer to the canvas and connect the input of this layer to the output of the imageInputLayer. Create a convolution layer with 2 filters (NumFilters property) that have a height and width of 10 (FilterSize property), and use a stride of 5 in the horizontal and vertical directions (Stride property).

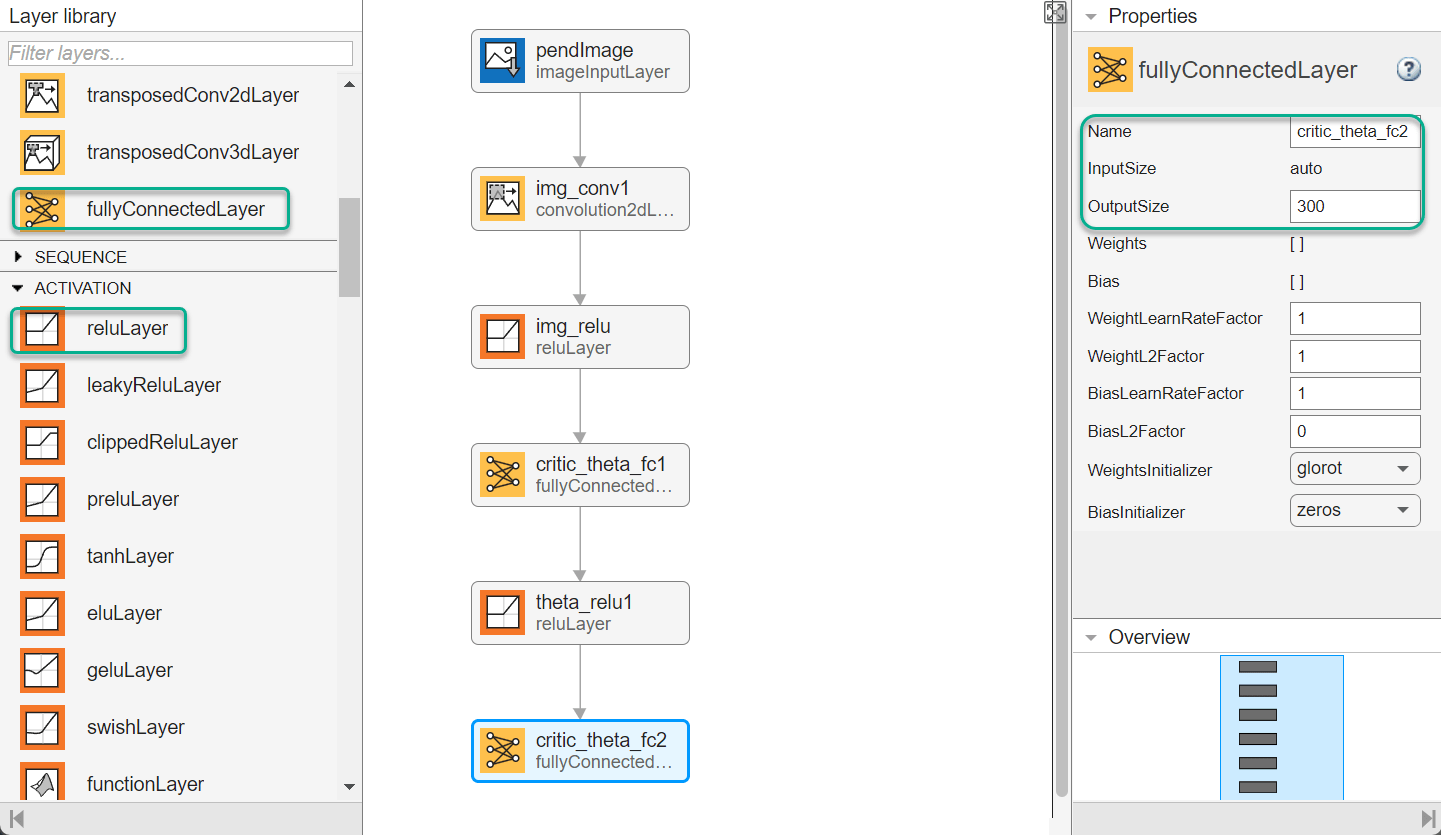

Finally, complete the image path network with two sets of reLULayer and fullyConnectedLayer layers. The output sizes of the first and second fullyConnectedLayer layers are 400 and 300, respectively.

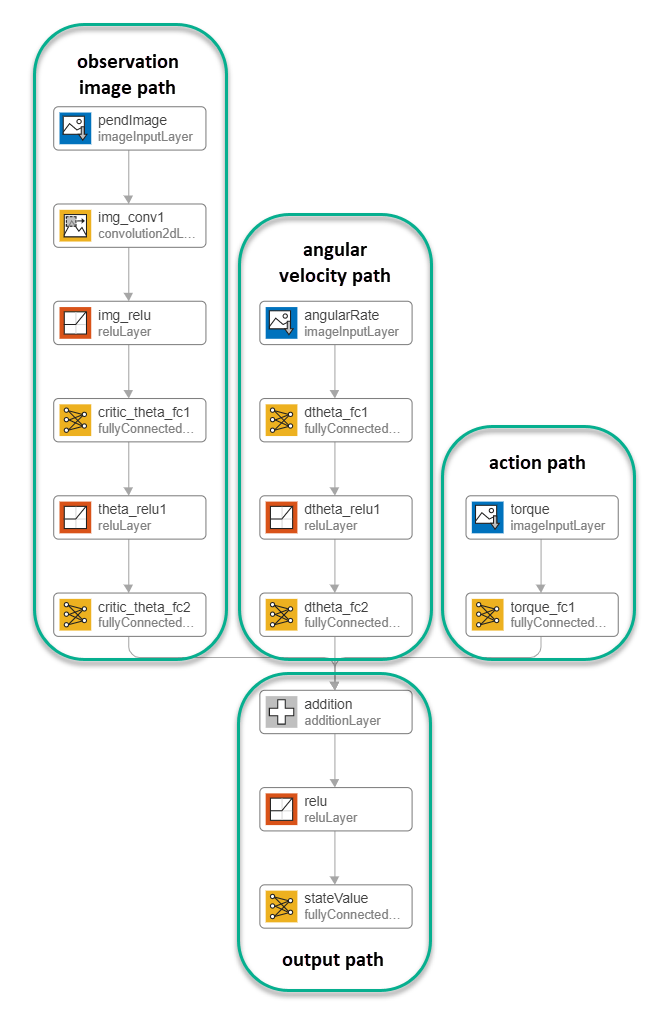

Create All Input Paths and Output Path

Construct the other input paths and output path in a similar manner. For this example, use the following options.

Angular velocity path (scalar input):

• imageInputLayer — Set InputSize to 1,1 and Normalization to none.

• fullyConnectedLayer — Set OutputSize to 400.

• reLULayer

• fullyConnectedLayer — Set OutputSize to 300.

Action path (scalar input):

• imageInputLayer — Set InputSize to 1,1 and Normalization to none.

• fullyConnectedLayer — Set OutputSize to 300.

Output path:

• additionLayer — Connect the output of all input paths to the input of this layer.

• reLULayer

• fullyConnectedLayer — Set OutputSize to 1 for the scalar value function.

### Export Network from Deep Network Designer

To export the network to the MATLAB workspace, in Deep Network Designer, click Export. Deep Network Designer exports the network as a new variable containing the network layers. You can create the critic representation using this layer network variable.

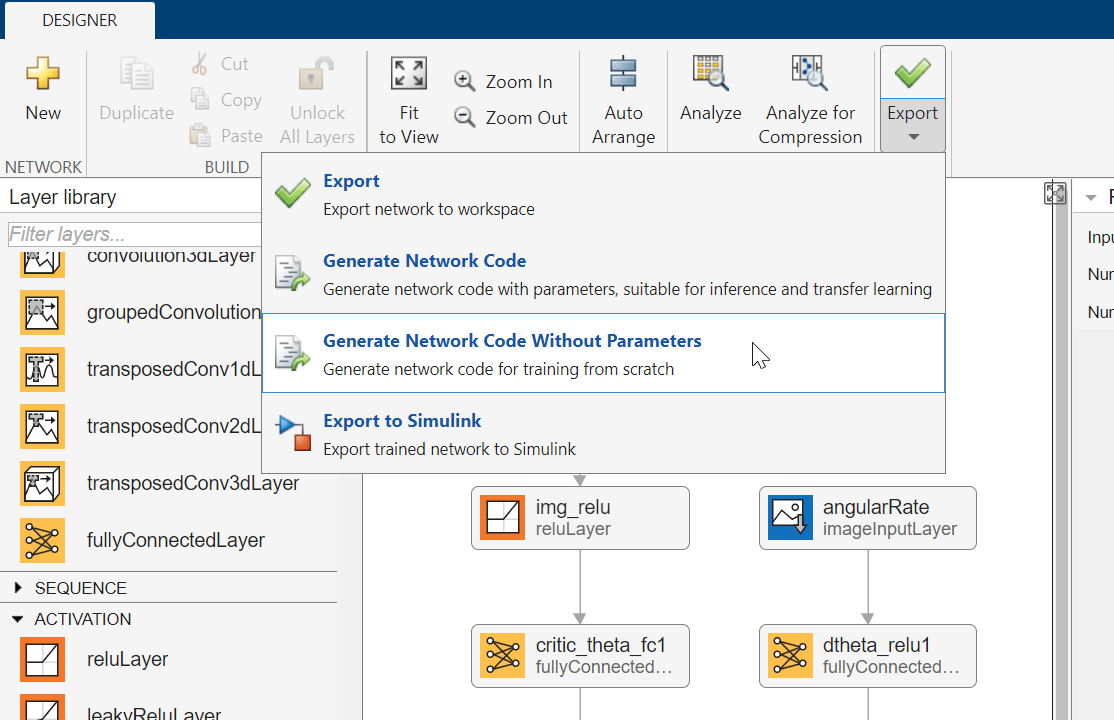

Alternatively, to generate equivalent MATLAB code for the network, click Export > Generate Code.

The generated code is as follows.

lgraph = layerGraph();

tempLayers = [
imageInputLayer([1 1 1],"Name","angularRate","Normalization","none")
fullyConnectedLayer(400,"Name","dtheta_fc1")
reluLayer("Name","dtheta_relu1")
fullyConnectedLayer(300,"Name","dtheta_fc2")];

tempLayers = [
imageInputLayer([1 1 1],"Name","torque","Normalization","none")
fullyConnectedLayer(300,"Name","torque_fc1")];

tempLayers = [
imageInputLayer([50 50 1],"Name","pendImage","Normalization","none")
reluLayer("Name","relu_1")
fullyConnectedLayer(400,"Name","critic_theta_fc1")
reluLayer("Name","theta_relu1")
fullyConnectedLayer(300,"Name","critic_theta_fc2")];

tempLayers = [
reluLayer("Name","relu_2")
fullyConnectedLayer(1,"Name","stateValue")];

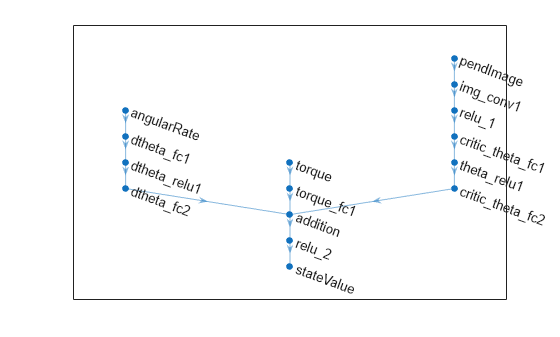

View the critic network configuration.

figure
plot(lgraph)

Specify options for the critic representation using rlRepresentationOptions.

Create the critic representation using the specified deep neural network lgraph and options. You must also specify the action and observation info for the critic, which you obtain from the environment interface. For more information, see rlQValueRepresentation.

critic = rlQValueRepresentation(lgraph,obsInfo,actInfo,...
'Observation',{'pendImage','angularRate'},'Action',{'torque'},criticOpts);

To create the DQN agent, first specify the DQN agent options using rlDQNAgentOptions.

agentOpts = rlDQNAgentOptions(...
'UseDoubleDQN',false,...
'TargetUpdateMethod',"smoothing",...
'TargetSmoothFactor',1e-3,...
'ExperienceBufferLength',1e6,...
'DiscountFactor',0.99,...
'SampleTime',env.Ts,...
'MiniBatchSize',64);
agentOpts.EpsilonGreedyExploration.EpsilonDecay = 1e-5;

Then, create the DQN agent using the specified critic representation and agent options. For more information, see rlDQNAgent.

agent = rlDQNAgent(critic,agentOpts);

### Train Agent

To train the agent, first specify the training options. For this example, use the following options.

• Run each training for at most 5000 episodes, with each episode lasting at most 500 time steps.

• Display the training progress in the Episode Manager dialog box (set the Plots option) and disable the command line display (set the Verbose option to false).

• Stop training when the agent receives an average cumulative reward greater than –1000 over the default window length of five consecutive episodes. At this point, the agent can quickly balance the pendulum in the upright position using minimal control effort.

trainOpts = rlTrainingOptions(...
'MaxEpisodes',5000,...
'MaxStepsPerEpisode',500,...
'Verbose',false,...
'Plots','training-progress',...
'StopTrainingCriteria','AverageReward',...
'StopTrainingValue',-1000);

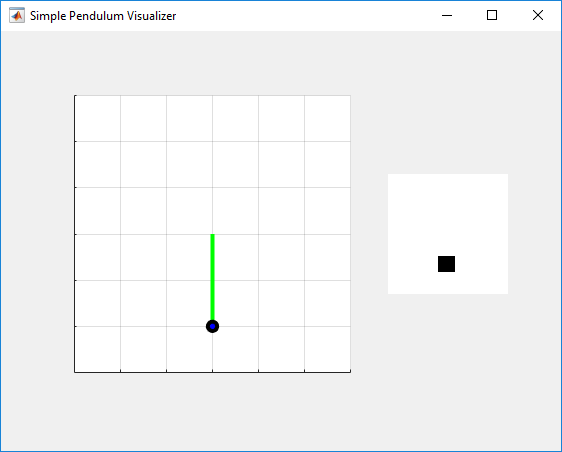

You can visualize the pendulum system during training or simulation by using the plot function.

plot(env)

Train the agent using the train function. This is a computationally intensive process that takes several hours to complete. To save time while running this example, load a pretrained agent by setting doTraining to false. To train the agent yourself, set doTraining to true.

doTraining = false;

if doTraining
% Train the agent.
trainingStats = train(agent,env,trainOpts);
else
% Load pretrained agent for the example.
end

### Simulate DQN Agent

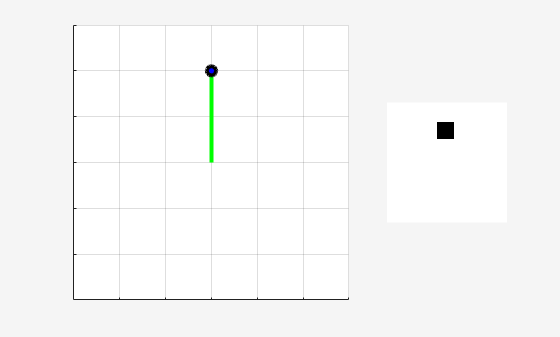

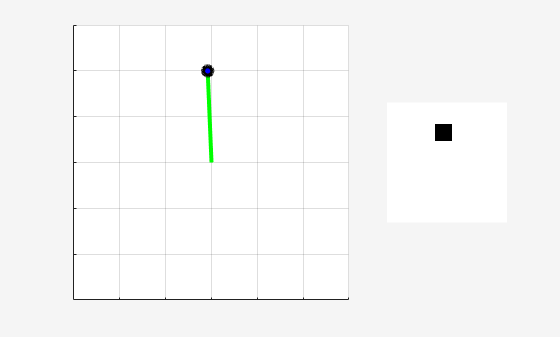

To validate the performance of the trained agent, simulate it within the pendulum environment. For more information on agent simulation, see rlSimulationOptions and sim.

simOptions = rlSimulationOptions('MaxSteps',500);
experience = sim(env,agent,simOptions);

totalReward = sum(experience.Reward)
totalReward = -888.9802
