measuredFilter
Description
Use measuredFilter
to create an object that accepts a measured
s-parameter data file and extracts the Coupling Matrix and other properties of the filter as
analysis results.
Creation
Description
mfilter = measuredFilter
creates a default extracted filter
model object with a filter order of 4..
mfilter = measuredFilter(
sets
Properties using one or more
name-value arguments. For example, name=value
)measuredFilter(FilterOrder =
4)
Properties
Object Functions
residue | Extract lowpass admittance residues and poles of a measuredFilter
object |
transversalMat | Calculate the transversal matrix of a measuredFilter
object |
canonicalCouplingMat | Perform canonical matrix rotation |
optimize | Isospectral optimization of a measuredFilter object |
sparameters | Calculate S-parameters for RF PCB objects |
qualityfactor | Calculates the unloaded quality factor of a measuredFilter
object |

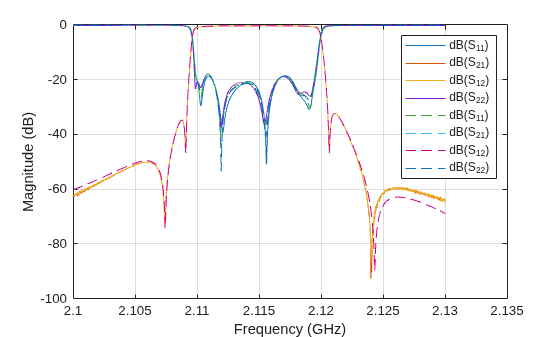

Examples
Version History
Introduced in R2024a
