# collisionCapsule

Capsule primitive collision geometry

Since R2022b

## Description

The collisionCapsule object is a capsule primitive collision geometry defined by a radius and length. The central line segment of the capsule aligns with its z-axis. The origin of the body-fixed frame is at the midpoint of the central line segment of the capsule.

## Creation

### Description

example

CAPS = collisionCapsule(___,Pose=pose) sets the Pose property of the capsule to pose, relative to the world frame.

## Properties

expand all

Radius of the spherical ends of the capsule, specified as a nonnegative scalar. Units are in meters.

Example: 2.5

Length of the central line segment of the capsule, specified as a nonnegative scalar. Units are in meters.

Note

This is not the length from end-to-end of the capsule. The total length of the capsule is Length+2(Radius).

Example: 4.5

Pose of the capsule relative to the world frame, specified as a 4-by-4 homogeneous transformation matrix. Units are in meters.

Example: trvec2tform([4 2 5])

## Object Functions

 checkCollision Check if two geometries are in collision convertToCollisionMesh Convert collision primitive geometry into collision mesh geometry genspheres Generate spheres along central line segment of capsule show Show collision geometry

## Examples

collapse all

Create a collision capsule with a radius of 2 and length of 10. Visualize the capsule.

cCapsule = collisionCapsule(2,10);
[~,p] = show(cCapsule);

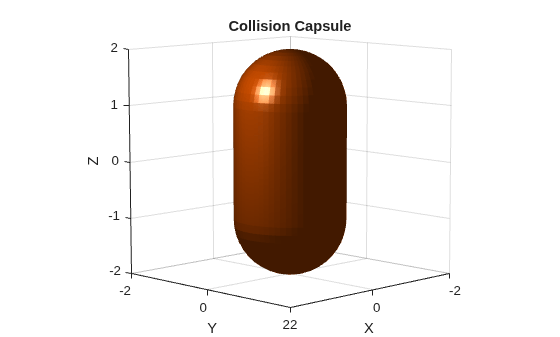

Generate spheres at ratios 0.0, 0.5, and 1.0 of the capsule length.

spheres = genspheres(cCapsule,linspace(0,1,3));

Display the positions of the spheres.

for i = 1:length(spheres)
disp(tform2trvec(spheres{i}.Pose))
end
0     0    -5

0     0     0

0     0     5

Set the face and edge alphas of the capsule to low values. This ensures that both the spheres are visible when you add them to the figure.

p.FaceAlpha = 0.4;
p.EdgeAlpha = 0.01;
hold on

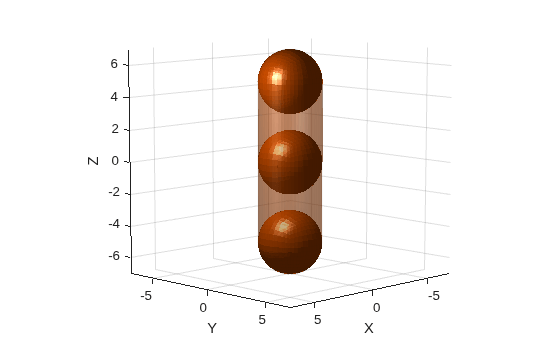

Display the generated spheres on the capsule.

cellfun(@show,spheres);

## Version History

Introduced in R2022b
