Connect to a ROS-enabled Robot from Simulink®
You can use Simulink to connect to a ROS-enabled physical robot or to a ROS-enabled robot simulator such as Gazebo. This example shows how to configure Simulink to connect to a separate robot simulator using ROS. It then shows how to send velocity commands and receive position information from a simulated robot.
You can follow the steps in the example to create your own model, or you can use this completed version instead.
Prerequisites: Get Started with ROS, Exchange Data with ROS Publishers and Subscribers, Get Started with ROS in Simulink.
Start a ROS-based simulator for a differential-drive robot. The simulator receives and sends messages on the following topics:
nav_msgs/Odometrymessages to the
geometry_msgs/Twistvelocity command messages on the /
/cmd_veltopic, based on the ROS-based simulator
You can choose one of two options for setting up the ROS-based simulator.
Option A: Simulator in MATLAB®

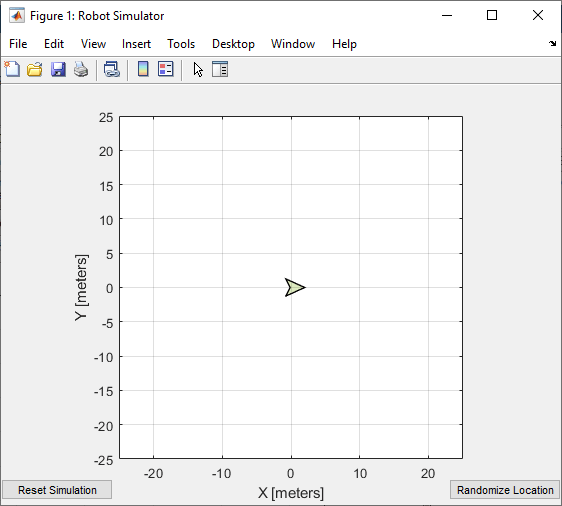

Use a simple MATLAB-based simulator to plot the current location of the robot in a separate figure window.
rosinitat the MATLAB command line. This creates a local ROS master with network address (URI) of
ExampleHelperSimulinkRobotROSto start the Robot Simulator:
geometry_msgs/Twistvelocity command messages are received on the /
Option B: Gazebo Simulator
Use a simulated TurtleBot® in Gazebo.
See Add, Build, and Remove Objects in Gazebo for instructions on setting up the Gazebo environment. In the Ubuntu® desktop in the virtual machine, click the "Gazebo Empty" icon.
Note the network address (URI) of the ROS master. It will look like
http://192.168.84.128:11311, but with your specific IP address.
Verify that the Gazebo environment is properly set up by typing the
listin the Ubuntu terminal window. You should see a list of topics, including
geometry_msgs/Twistvelocity command messages are received on the /cmd_vel topic.
Configure Simulink to Connect to the ROS Network
1. From the Simulation tab, select ROS Toolbox > ROS Network.
2. In the ROS Master (ROS 1) section, select
Custom from the Network Address dropdown.
Option A (MATLAB Simulator): Ensure that the Hostname/IP Address is set to
localhost, and Port is set to
Option B (Gazebo Simulator): Specify the IP address and port number of the ROS master in Gazebo. For example, if it is
http://192.168.60.165:11311, then enter
192.168.60.165in the Hostname/IP address box and
11311in the Port box.
Send Velocity Commands To the Robot
Create a publisher that sends control commands (linear and angular velocities) to the simulator. Make these velocities adjustable by using Slider Gain blocks.
ROS uses a right-handed coordinate system, so X-axis is forward, Y-axis is left, and Z-axis is up. Control commands are sent using a
geometry_msgs/Twist message, where
Linear.X indicates linear forward velocity (in m/s), and
Angular.Z indicates angular velocity around the Z-axis (in rad/s).
Configure a Publisher Block
Open a new Simulink model.
From the ROS Toolbox > ROS tab in the Library Browser, drag a Publish block to the model. Double-click the block.
Set Topic source field to Select From ROS network. Select a topic based on the simulator as shown below.
Option A (MATLAB Simulator): Click Select next to Topic, select
/mobile_base/commands/velocity, and click OK. Note that the message type (
geometry_msgs/Twist) is set automatically.
Option B (Gazebo Simulator): Click Select next to Topic, select
/cmd_vel, and click OK. Note that the message type (
geometry_msgs/Twist) is set automatically.
Configure a Message Block
From the ROS Toolbox > ROS tab in the Library Browser, drop a Blank Message block to the model. Double-click the block.
Click Select next to Message type and select
Set Sample time to
0.01and click OK.
Configure Message Inputs
From the Simulink > Signal Routing tab in the Library Browser, drag a Bus Assignment block to the model.
Msgoutput of the Blank Message block to the
Businput of the Bus Assignment block, and the
Busoutput to the
Msginput of the Publish block.
From the Modeling tab, click Update Model to ensure that the bus information is correctly propagated. Ignore the error, "Selected signal 'signal1' in the Bus Assignment block 'untitled/Bus Assignment' cannot be found in the input bus signal", if it appears. The next step will resolve this error.
Double-click the Bus Assignment block. Select
signal1in the right list box and click Remove. In the left list box, expand both Linear and Angular properties. Select Linear > X and Angular > Z and click Select. Click OK to close the block mask.

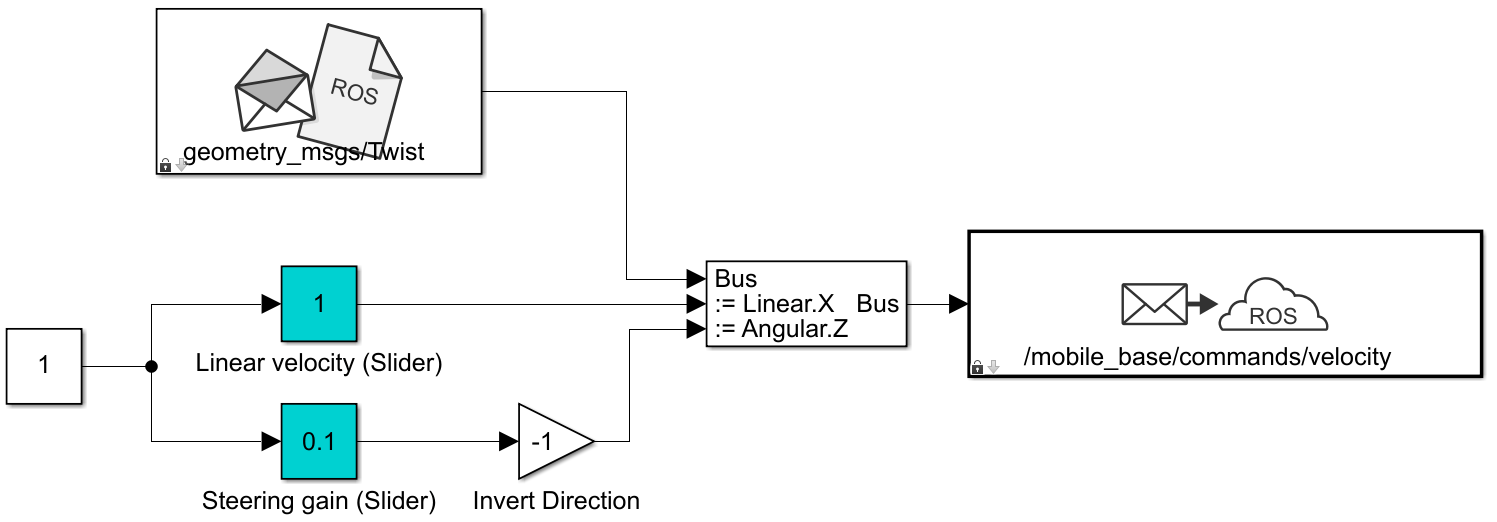

Add a Constant block, a Gain block, and two Slider Gain blocks. Connect them together as shown in the figure, and set the Gain value to
Set the limits and current parameters of the linear velocity slider to
1.0respectively. Set the corresponding parameters of the steering gain slider to
Receive Location Information from the Robot
Create a subscriber to receive messages sent to the
/odom topic. Extract the location of the robot and plot it's path in the XY-plane.
Configure a Subscriber block
From the ROS Toolbox > ROS tab in the Library Browser, drag a Subscribe block to the model. Double-click the block.
Set Topic source to Select From ROS network, and click Select next to the Topic box. Select "/odom" for the topic and click OK. Note that the message type
nav_msgs/Odometryis set automatically.
Read Message Output
From the Simulink > Signal Routing tab in the Library Browser, drag a Bus Selector block to the model.
Connect the output port of the Subscribe block to the input port of the Bus Selector block. In the Modeling tab, click Update Model to ensure that the bus information is correctly propagated.
Double-click the Bus Selector block. Select
signal2in the right listbox and click Remove. In the left listbox, expand Pose > Pose > Position and select X and Y. Click Select and then OK.
From the Simulink > Sinks tab in the Library Browser, drag an XY Graph block to the model. Connect the
Youtput ports of the Bus Selector block to the input ports of the XY Graph block.

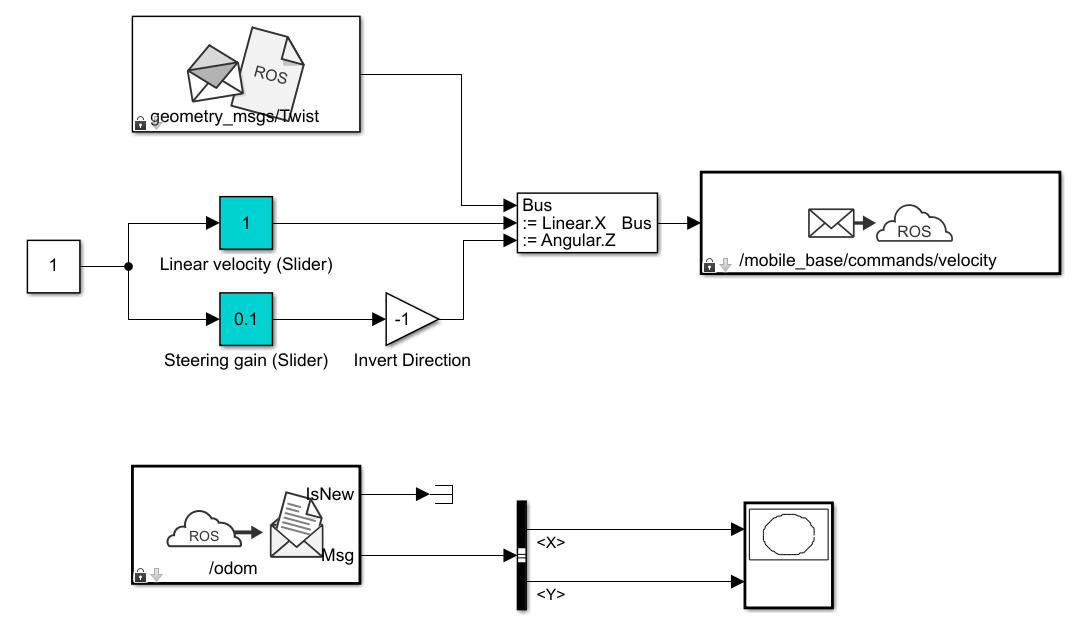

This figure shows the completed model. A pre-configured model is included for your convenience.
Note: The Publisher block in this model uses the
/mobile_base/commands/velocitytopic for use with MATLAB simulator option. For Gazebo simulator option, select the
/cmd_veltopic as shown above.
Configure and Run the Model
From the Modeling tab, click Model Settings. In the Solver pane, set Type to Fixed-step and Fixed-step size to
Set simulation Stop time to
Click Run to start the simulation.
In both the simulator and XY plot, you should see the robot moving in a circle.
While the simulation is running, change the values of Slider Gain blocks to control the robot. Double-click the XY Graph block and change the
Yaxis limits if needed. (You can do this while the simulation is running.)
To stop the simulation, click Stop.
