Satellite RF Signal Reception

R2026b

Demodulate and decode standard-based DVB-S2/S2X/RCS2 and CCSDS TC/TM waveforms

Model signal recovery functionality for these standard-based satellites signals.

Consultative Committee for Space Data Systems (CCSDS) Telecommand (TC)
CCSDS Telemetry (TM)
Digital Video Broadcasting Satellite Second Generation (DVB-S2)
Digital Video Broadcasting Satellite Second Generation extended (DVB-S2X)
Digital Video Broadcasting Second Generation Return Channel over Satellite (DVB-RCS2)

To explore the signal transmission aspects of standard-based waveforms, see the Signal Transmission category.

Functions

`ccsdsTCIdealReceiver`	Ideal receiver for CCSDS TC waveform
`ccsdsTMFrameSynchronizer`	Synchronize CCSDS frames (Since R2024a)
`dvbs2BitRecover`	Recover bits for DVB-S2 PL frames
`dvbs2xBitRecover`	Recover bits for DVB-S2X PL frames (Since R2022b)
`dvbsPLHeaderRecover`	Recover physical layer information from DVB-S2 or DVB-S2X header (Since R2024a)
`dvbrcs2RecoveryConfig`	Receiver configuration parameters for DVB-RCS2
`dvbrcs2BitRecover`	Recover bits for DVB-RCS2 waveform
`dvbrcs2CPMDemodConfig`	DVB-RCS2 CPM demodulator configuration object (Since R2026b)
`dvbrcs2CPMDemodulate`	Demodulate signal using CPM method specified in DVB-RCS2 standard (Since R2026b)

`ccsdsTCConfig`	CCSDS TC configuration parameters
`ccsdsTCWaveform`	Generate CCSDS TC waveform
`ccsdsTMWaveformGenerator`	Generate CCSDS TM waveform
`dvbs2WaveformGenerator`	Generate DVB-S2 waveform
`dvbs2xWaveformGenerator`	Generate DVB-S2X waveform
`dvbrcs2WaveformGenerator`	Generate DVB-RCS2 waveform

Measure BER and PER for a pilot-aided DVB-S2 link with added RF impairments and AWGN.

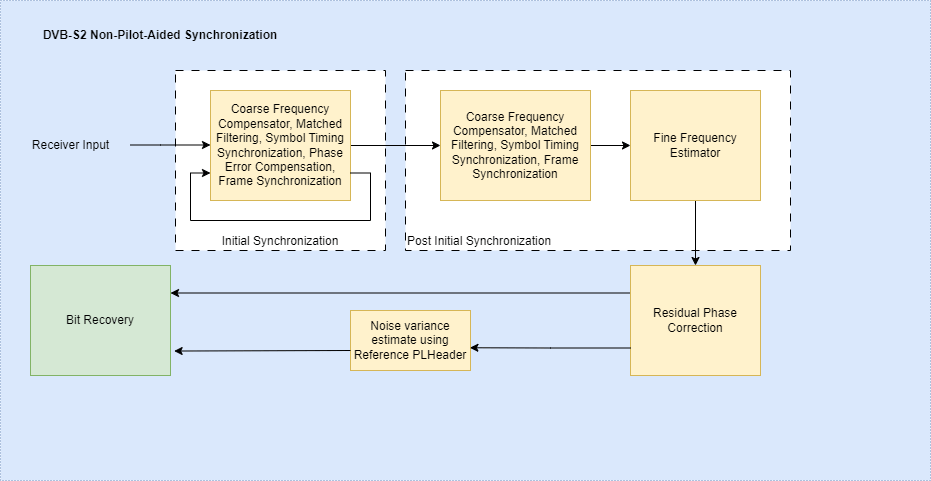

Measure BER and PER for a non-pilot-aided DVB-S2 link with added RF impairments and AWGN.

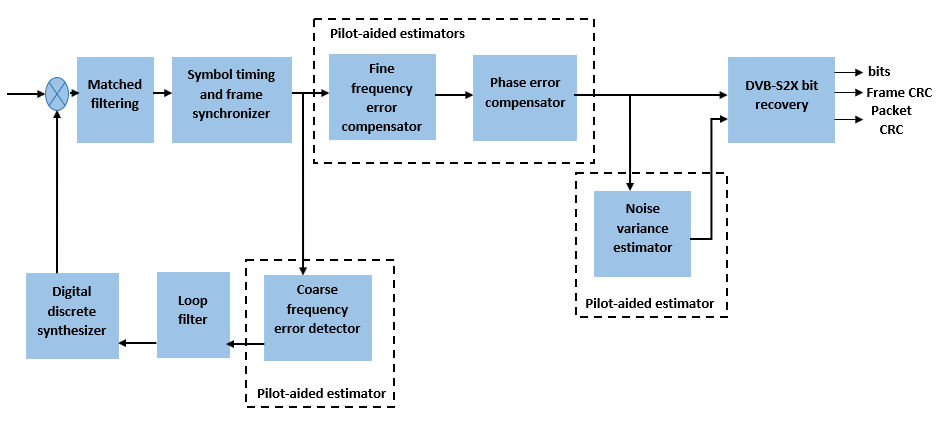

Measure BER and PER for a DVB-S2X link with regular frames, with added RF impairments and AWGN.

Measure BER and PER for a DVB-S2X link with VL-SNR frames, with added RF impairments and AWGN.

Measure BER and PER for a DVB-S2X link in wideband mode using time-slicing, with added impairments and AWGN.

New

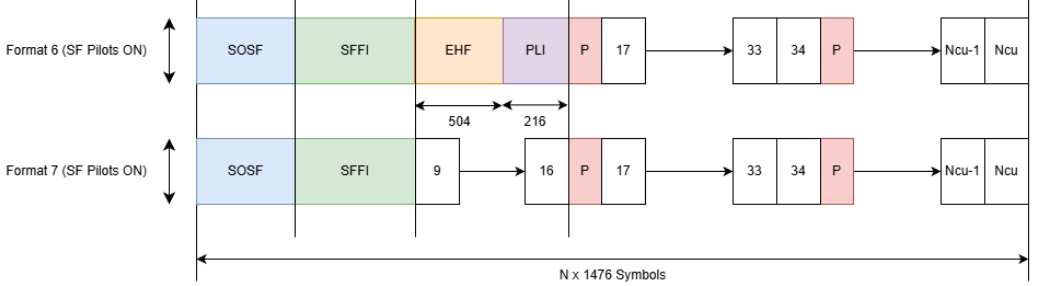

Generate and receive DVB-S2X Super-Frame format 6 and 7 waveforms.

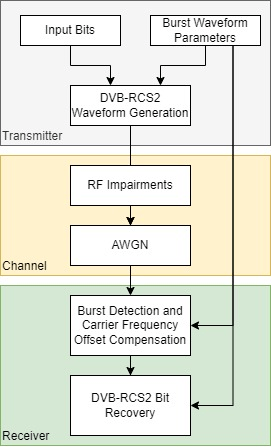

Measure the packet error rate for a DVB-RCS2 link.

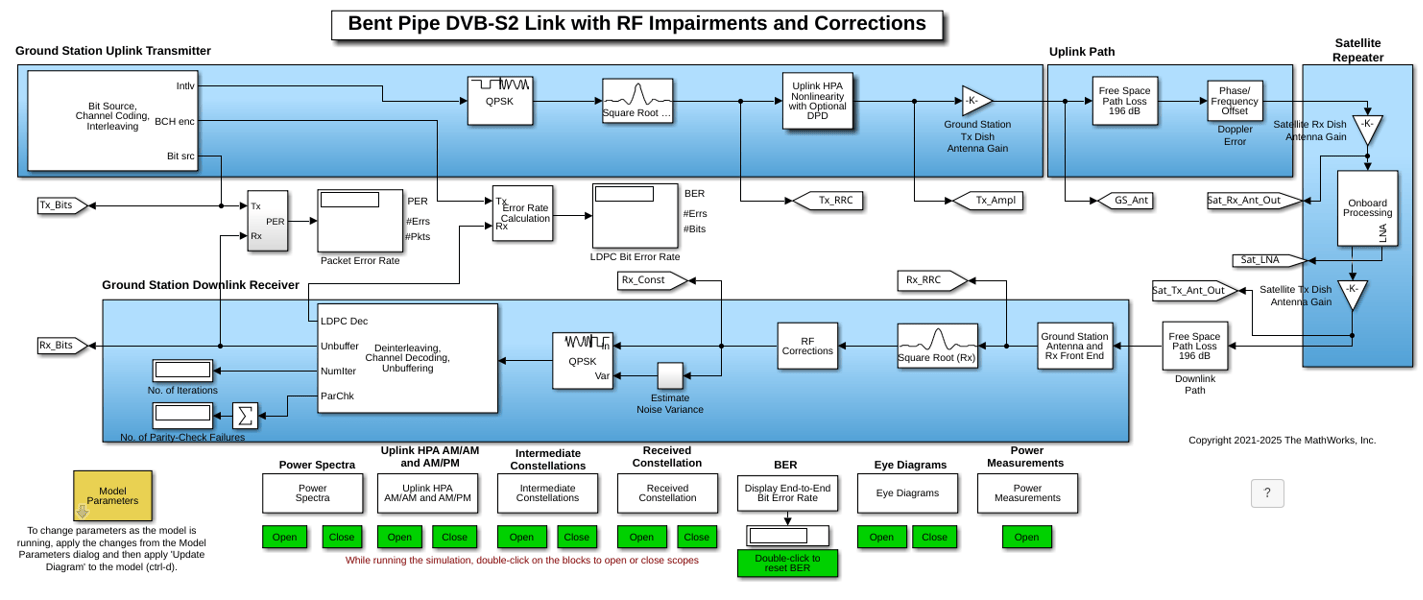

Model a DVB-S2 bent pipe satellite link, and calculate the PER and LDPC coding BER.

Measure BER for a CCSDS TM link with added RF impairments and AWGN.

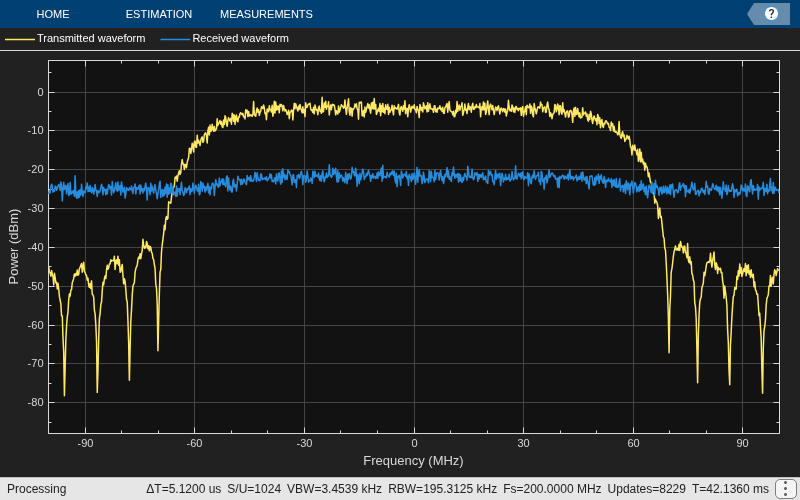

Measure BER for a CCSDS FACM link with added RF impairments and AWGN.

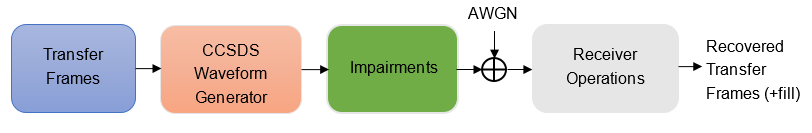

Measure BER and CLTUs lost in a CCSDS TC link with added RF impairments and AWGN.

Visualization capabilities that show the effects of RF impairments and corrections in a satellite downlink.
