corrmtx

Data matrix for autocorrelation matrix estimation

Syntax

X = corrmtx(x,m)
X = corrmtx(x,m,'method')
[X,R] = corrmtx(...)

Description

X = corrmtx(x,m) returns an (n + m)-by-(m + 1) rectangular Toeplitz matrix X, such that X'X is a (biased) estimate of the autocorrelation matrix for the length-n data vector x. m must be a positive integer strictly smaller than the length of the input x.

X = corrmtx(x,m,'method') computes the matrix X according to the method specified by 'method':

  • 'autocorrelation': (default) X is the (n + m)-by-(m + 1) rectangular Toeplitz matrix that generates an autocorrelation estimate for the length-n data vector x, derived using prewindowed and postwindowed data, based on an mth-order prediction error model.

  • 'prewindowed': X is the n-by-(m + 1) rectangular Toeplitz matrix that generates an autocorrelation estimate for the length-n data vector x, derived using prewindowed data, based on an mth-order prediction error model.

  • 'postwindowed': X is the n-by-(m + 1) rectangular Toeplitz matrix that generates an autocorrelation estimate for the length-n data vector x, derived using postwindowed data, based on an mth-order prediction error model.

  • 'covariance': X is the (n – m)-by-(m + 1) rectangular Toeplitz matrix that generates an autocorrelation estimate for the length-n data vector x, derived using nonwindowed data, based on an mth-order prediction error model.

  • 'modified': X is the 2(n – m)-by-(m + 1) modified rectangular Toeplitz matrix that generates an autocorrelation estimate for the length-n data vector x, derived using forward and backward prediction error estimates, based on an mth-order prediction error model.

[X,R] = corrmtx(...) also returns the (m + 1)-by-(m + 1) autocorrelation matrix estimate R, calculated as X'*X.

Examples

collapse all

Generate a signal composed of three complex exponentials embedded in white Gaussian noise. Compute the data and autocorrelation matrices using the 'modified' method.

n = 0:99;
s = exp(i*pi/2*n)+2*exp(i*pi/4*n)+exp(i*pi/3*n)+randn(1,100);
m = 12;
[X,R] = corrmtx(s,m,'modified');

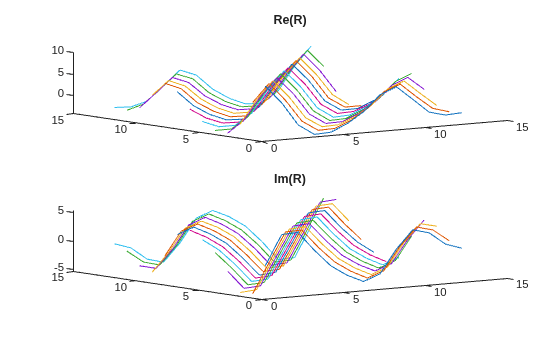

Plot the real and imaginary parts of the autocorrelation matrix.

[A,B] = ndgrid(1:m+1);
subplot(2,1,1)
plot3(A,B,real(R))
title('Re(R)')
subplot(2,1,2)
plot3(A,B,imag(R))
title('Im(R)')

Algorithms

The Toeplitz data matrix computed by corrmtx depends on the method you select. The matrix determined by the autocorrelation (default) method is given by the following matrix.

X=[x(1)0x(m+1)x(1)x(nm)x(m+1)x(n)x(nm)0x(n)]

In this matrix, m is the same as the input argument m to corrmtx, and n is length(x). Variations of this matrix are used to return the output X of corrmtx for each method:

  • 'autocorrelation' — (default) X = X, above.

  • 'prewindowed'X is the n-by-(m + 1) submatrix of X whose first row is [x(1) … 0] and whose last row is [x(n) … x(n – m)].

  • 'postwindowed'X is the n-by-(m + 1) submatrix of X whose first row is [x(m + 1) … x(1)] and whose last row is [0 … x(n)]

  • 'covariance'X is the (n – m)-by-(m + 1) submatrix of X whose first row is [x(m + 1) … x(1)] and whose last row is [x(n) … x(n – m)].

  • 'modified'X is the 2(n – m)-by-(m + 1) matrix Xmod shown below.

    Xmod=[x(m+1)x(1)x(nm)x(m+1)x(n)x(nm)x(1)x(m+1)x(m+1)x(nm)x(nm)x(n)]

References

[1] Marple, S. Lawrence. Digital Spectral Analysis. Englewood Cliffs, NJ: Prentice-Hall, 1987.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Introduced before R2006a
