interp

Interpolation — increase sample rate by integer factor

Syntax

y = interp(x,r)

y = interp(x,r,n,cutoff)

[y,b] = interp(x,r,n,cutoff)

Description

y = interp(x,r) increases the sample rate of input signal x by a factor of r.

y = interp(x,r,n,cutoff) specifies two additional values:

• n is half the number of original sample values used to interpolate the expanded signal.

• cutoff is the normalized cutoff frequency of the input signal, specified as a fraction of the Nyquist frequency.

[y,b] = interp(x,r,n,cutoff) also returns the filter coefficients used for the interpolation.

Examples

Interpolate Signal

Create a sinusoidal signal sampled at 1 kHz. Interpolate it by a factor of four.

t = 0:1/1e3:1;
x = sin(2*pi*30*t) + sin(2*pi*60*t);
y = interp(x,4);

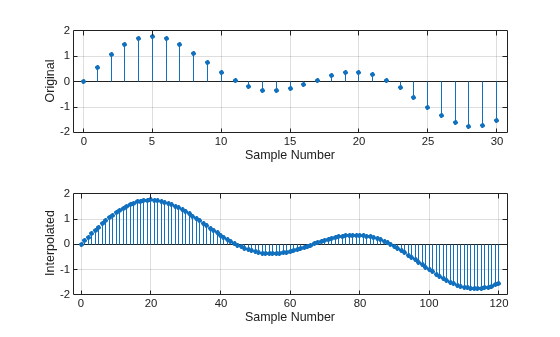

Plot the original and interpolated signals.

subplot(2,1,1)
stem(0:30,x(1:31),'filled','MarkerSize',3)
grid on
xlabel('Sample Number')
ylabel('Original')

subplot(2,1,2)
stem(0:120,y(1:121),'filled','MarkerSize',3)
grid on
xlabel('Sample Number')
ylabel('Interpolated')

Input Arguments

x — Input signal

vector

Input signal, specified as a vector.

Data Types: double | single

r — Interpolation factor

positive integer

Interpolation factor, specified as a positive integer.

Data Types: double | single

n — Half the number of input samples used for interpolation

4 (default) | positive integer

Half the number of input samples used for interpolation, specified as a positive integer. For best results, use n no larger than 10. The lowpass interpolation filter has length 2 × n × r + 1.

Data Types: double | single

cutoff — Normalized cutoff frequency

0.5 (default) | positive scalar

Normalized cutoff frequency of the input signal, specified as a positive real scalar not greater than 1 that represents a fraction of the Nyquist frequency. A value of 1 means that the signal occupies the full Nyquist interval.

Data Types: double | single

Output Arguments

y — Interpolated signal

vector

Interpolated signal, returned as a vector. y is r times as long as the original input x.

Data Types: double | single

b — Lowpass interpolation filter coefficients

column vector

Lowpass interpolation filter coefficients, returned as a column vector.

Data Types: double | single

Algorithms

Interpolation increases the original sample rate of a sequence to a higher rate. It is the opposite of decimation. interp inserts zeros into the original signal and then applies a lowpass interpolating filter to the expanded sequence. The function uses the lowpass interpolation algorithm 8.1 described in [1]:

1. Expand the input vector to the correct length by inserting 0s between the original data values.

2. Design a special symmetric FIR filter that allows the original data to pass through unchanged and interpolates to minimize the mean-square error between the interpolated points and their ideal values. The filter used by interp is the same as the filter returned by intfilt.

3. Apply the filter to the expanded input vector to produce the output.

References

[1] Digital Signal Processing Committee of the IEEE Acoustics, Speech, and Signal Processing Society, eds. Programs for Digital Signal Processing. New York: IEEE Press, 1979.

[2] Oetken, G., Thomas W. Parks, and H. W. Schüssler. "New results in the design of digital interpolators." IEEE^® Transactions on Acoustics, Speech, and Signal Processing. Vol. ASSP-23, No. 3, June 1975, pp. 301–309.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced before R2006a
